Shift Lock System for Column Shift: Notes

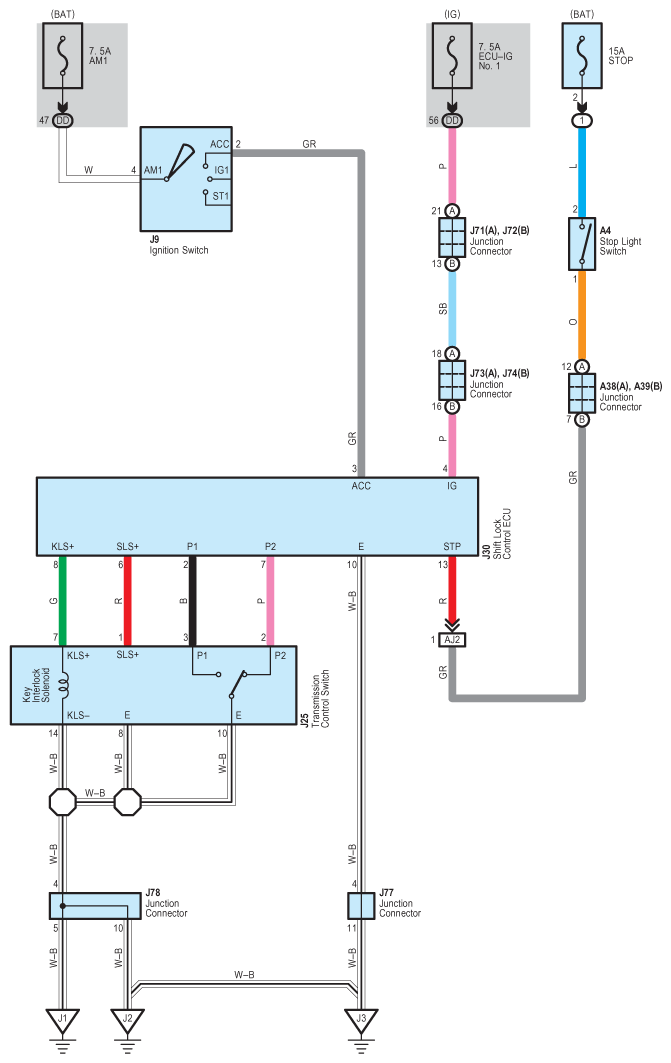

Fig 1: Shift Lock For Column Shift - Circuit Diagram

G07582114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
