Seat Heater System: Notes

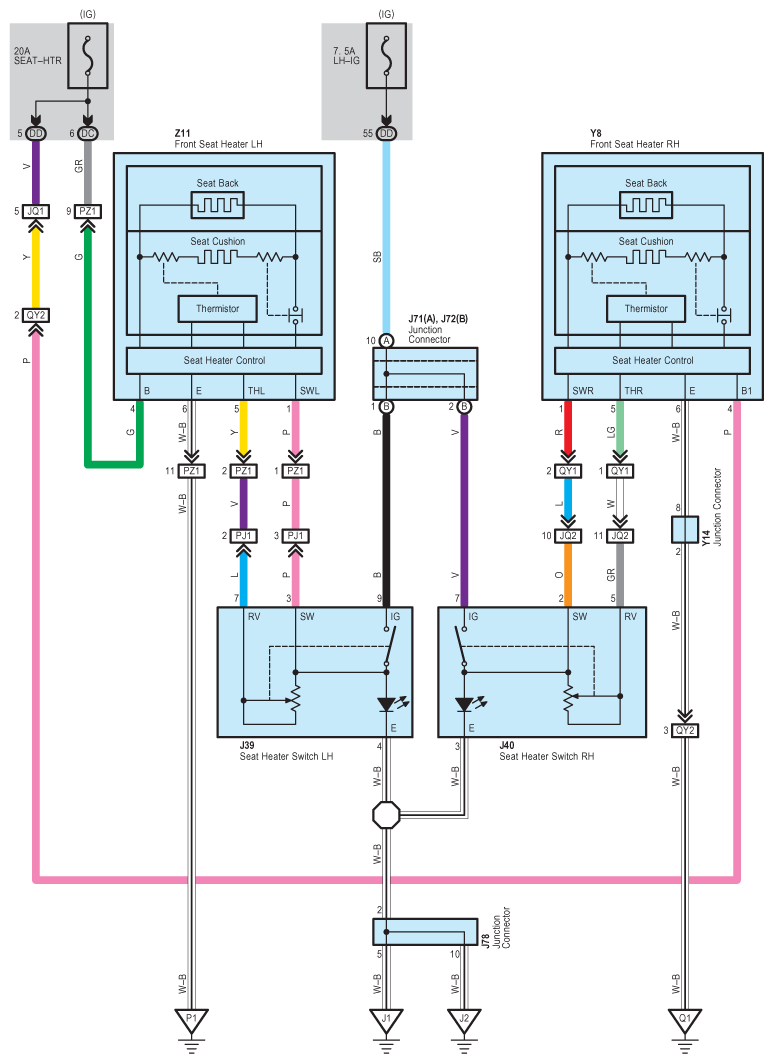

Fig 1: Seat Heater - Circuit Diagram

G07582112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
