Remote Control Mirror System without Seat Position Memory: Notes

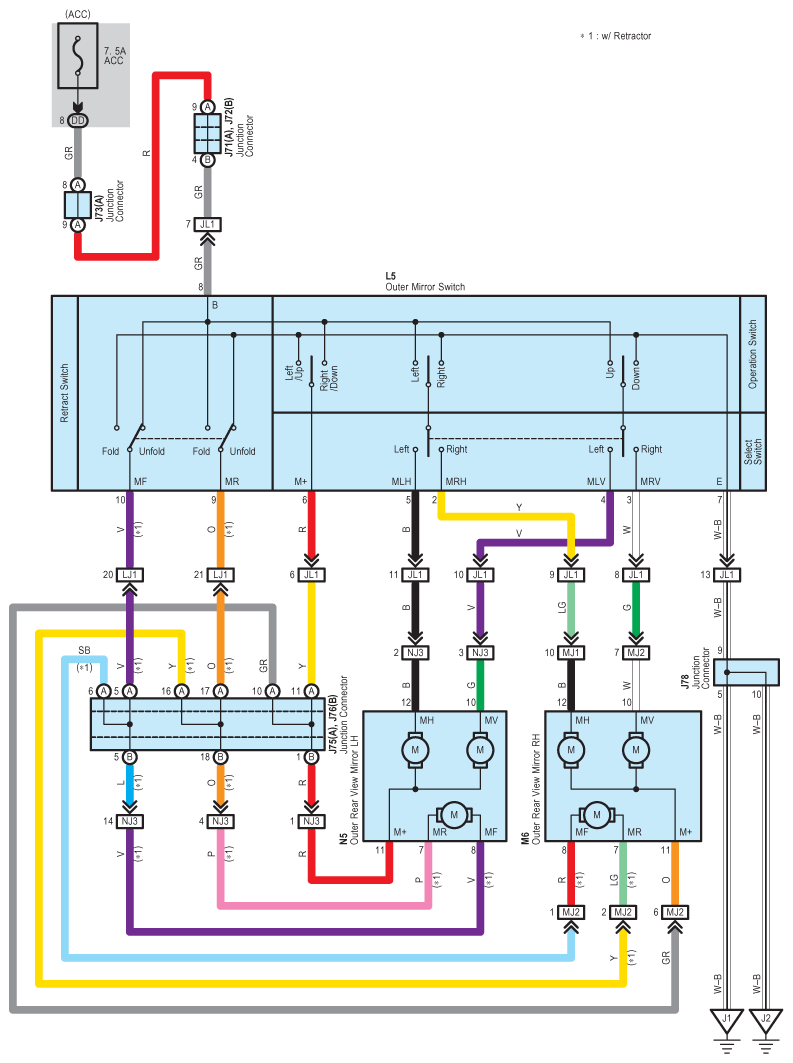

Fig 1: Remote Control Mirror Without Seat Position Memory - Circuit Diagram

G07582096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
