Remote Control Mirror System with Seat Position Memory: Notes

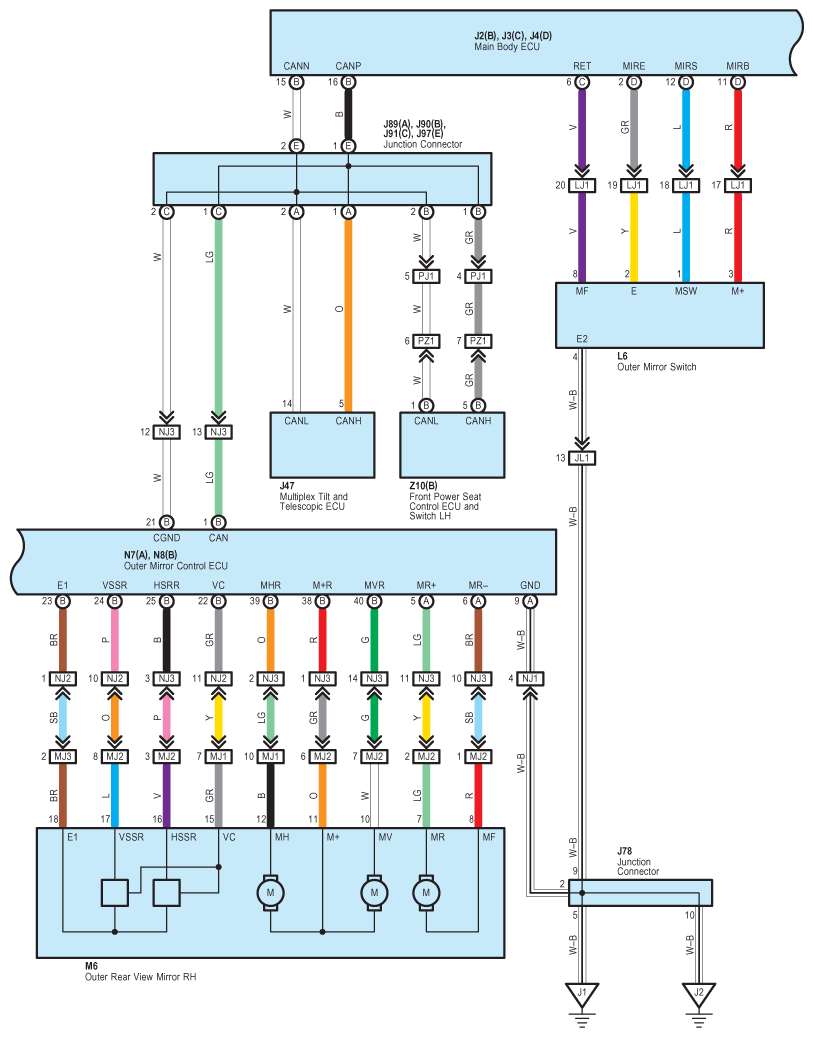

Fig 1: Remote Control Mirror With Seat Position Memory - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

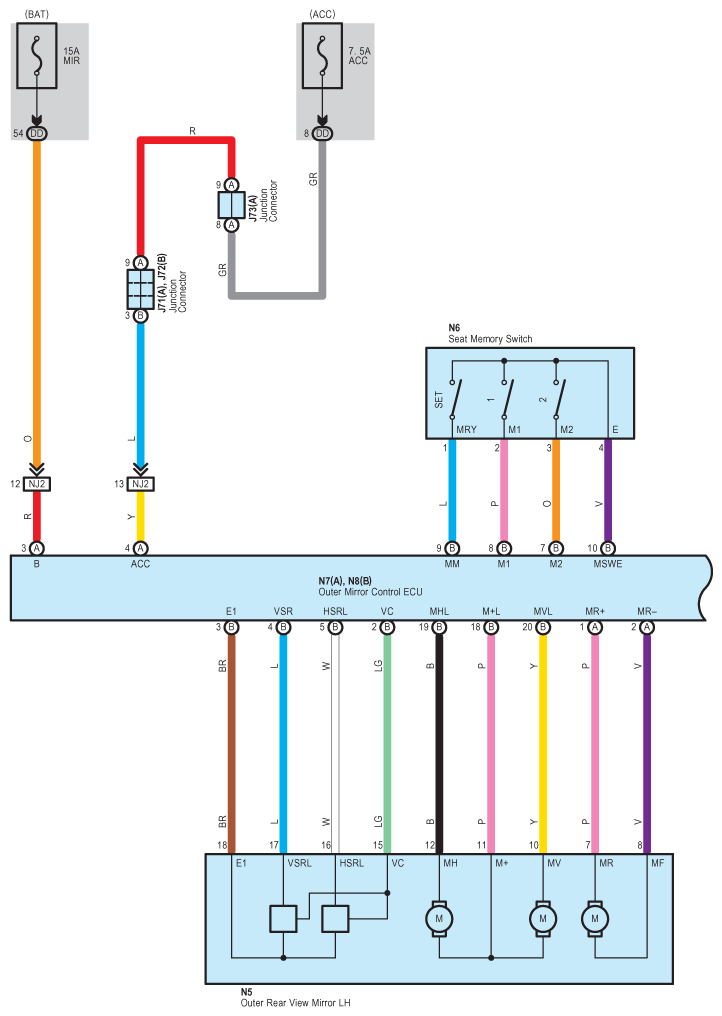

Fig 2: Remote Control Mirror With Seat Position Memory - Circuit Diagram (2 Of 3)

Fig 3: Remote Control Mirror With Seat Position Memory - Circuit Diagram (3 Of 3)
