Rear Window Defogger System: Notes

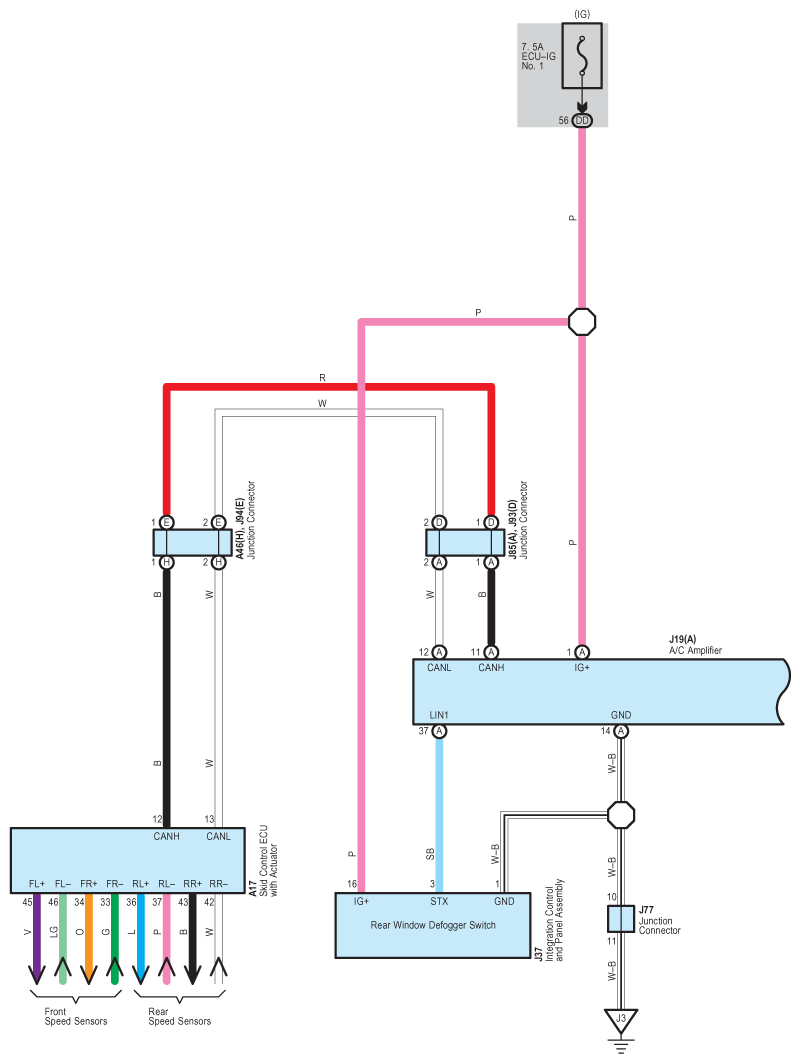

Fig 1: Rear Window Defogger - Circuit Diagram (1 Of 2)
G07582097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

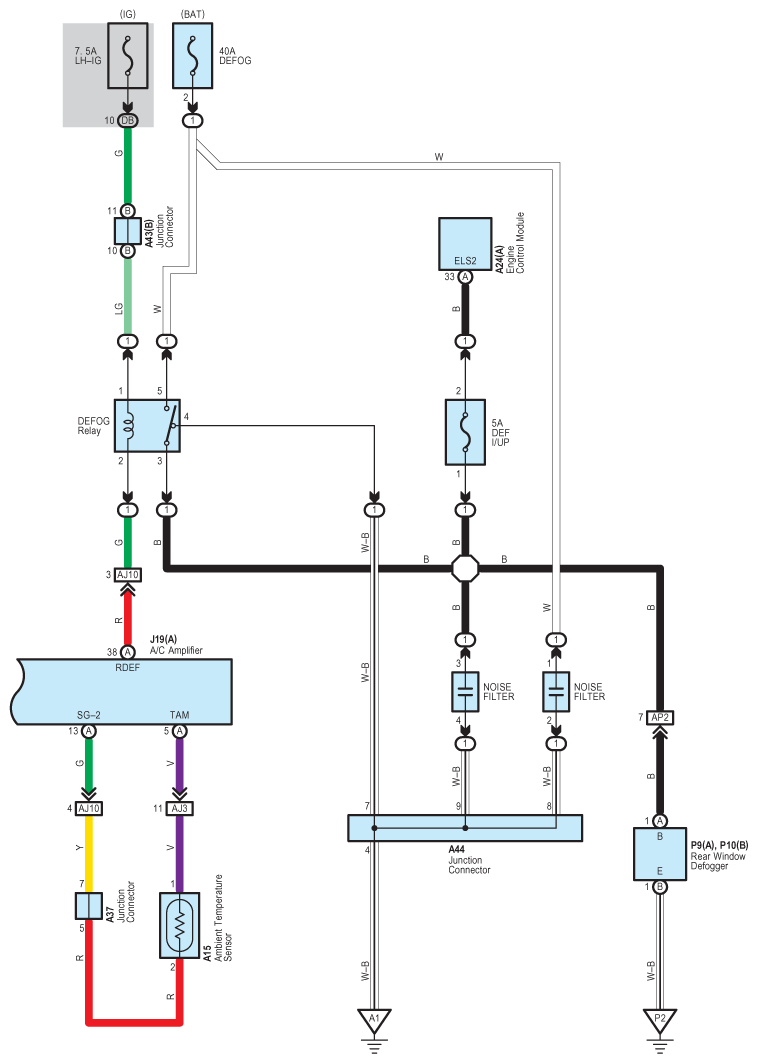

Fig 2: Rear Window Defogger - Circuit Diagram (2 Of 2)
G07582098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
