Power Window System: Notes

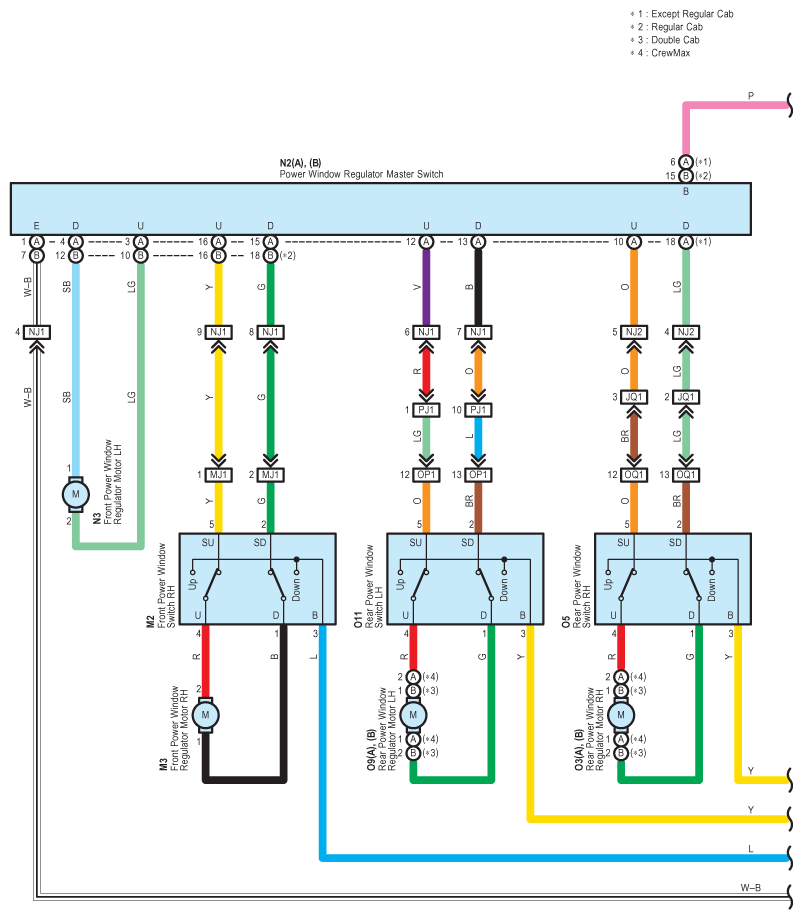

Fig 1: Power Window - Circuit Diagram (1 Of 3)
G07582077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Window - Circuit Diagram (2 Of 3)
G07582078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Power Window - Circuit Diagram (3 Of 3)
G07582079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
