Multi Mode 4WD System: Notes

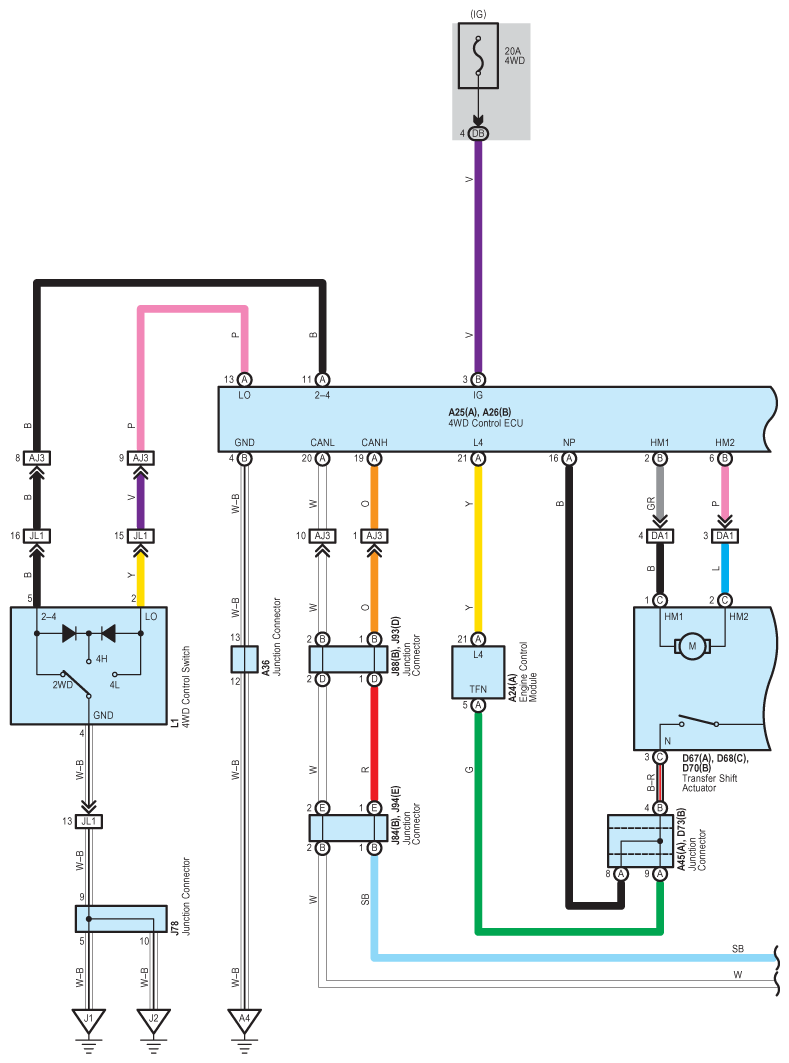

Fig 1: Multi Mode 4WD - Circuit Diagram (1 Of 3)
G07582056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

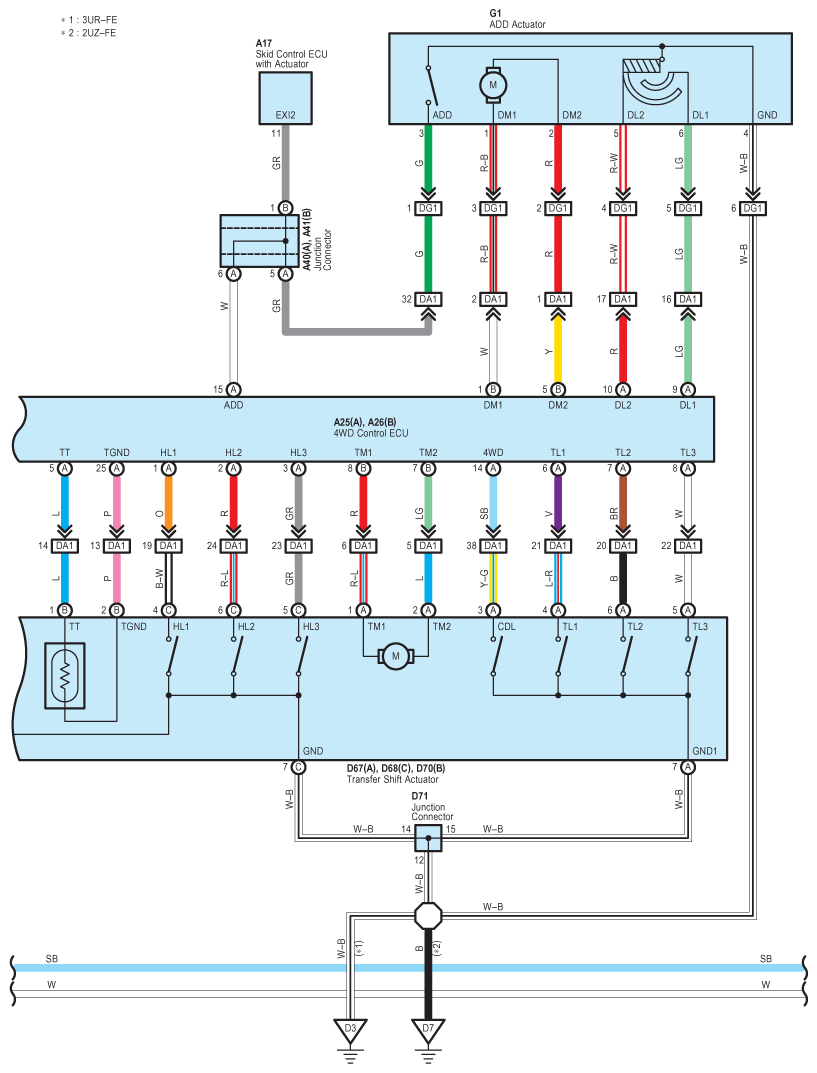

Fig 2: Multi Mode 4WD - Circuit Diagram (2 Of 3)
G07582057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

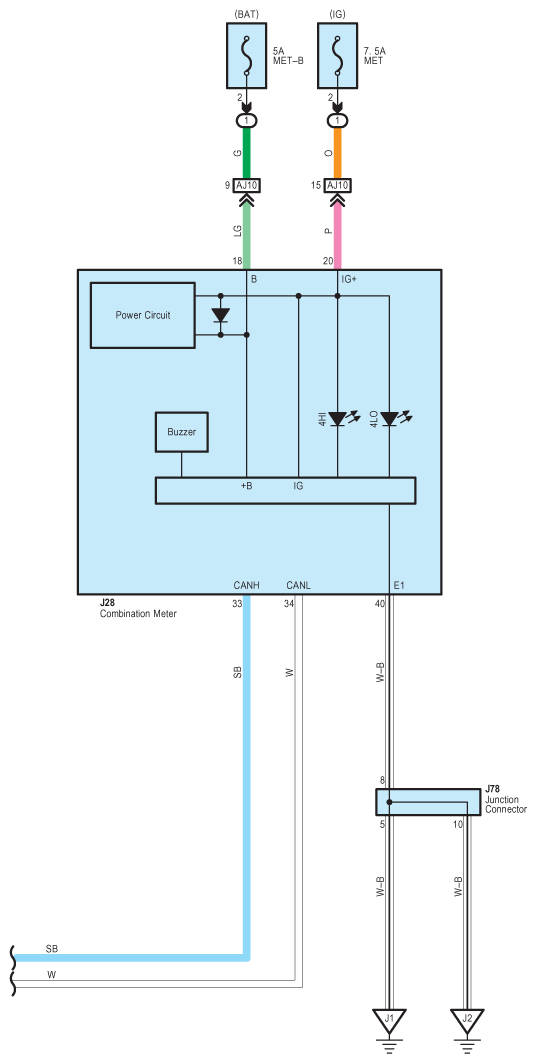

Fig 3: Multi Mode 4WD - Circuit Diagram (3 Of 3)
G07582058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
