Mirror Heater System: Notes

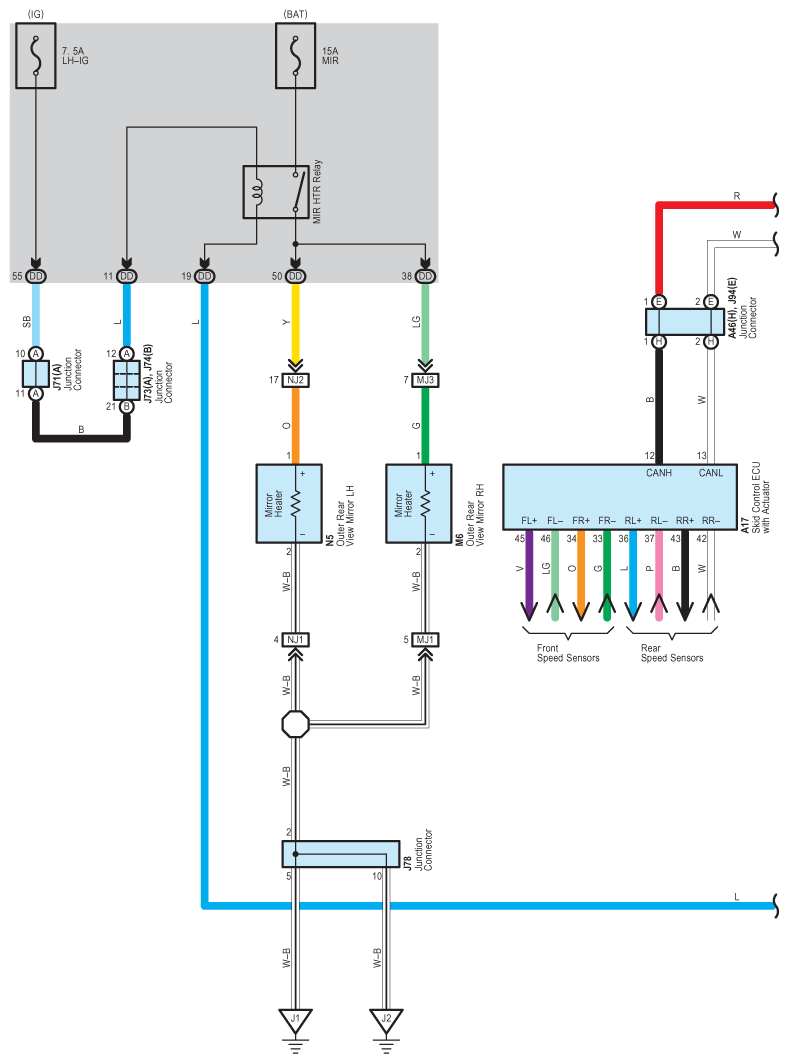

Fig 1: Mirror Heater - Circuit Diagram (1 Of 2)
G07582089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

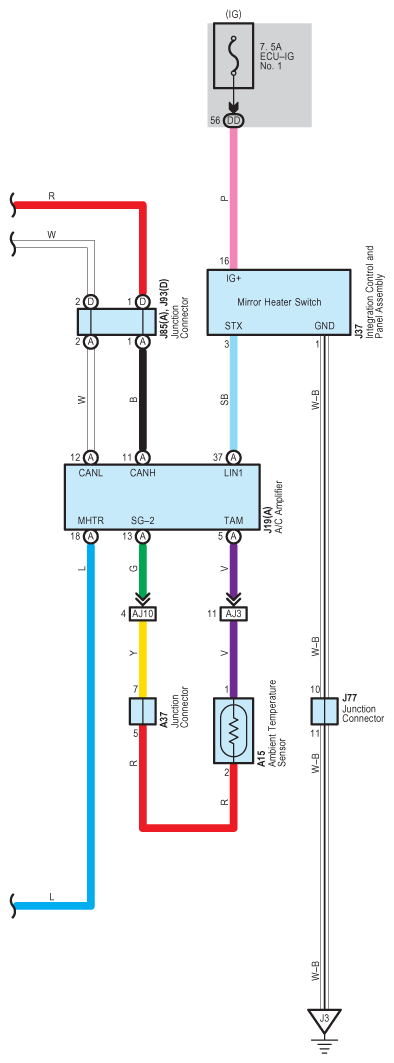

Fig 2: Mirror Heater - Circuit Diagram (2 Of 2)
G07582090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
