Ignition System for 2UZ-FE: Notes

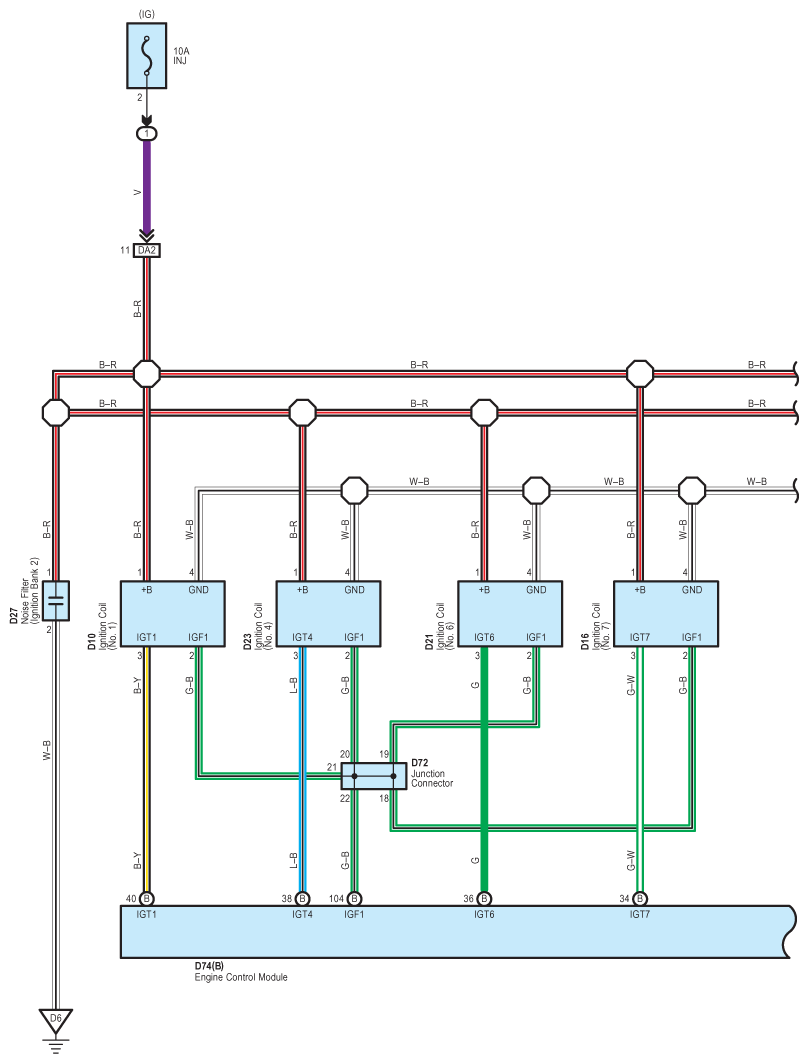

Fig 1: Ignition For 2UZ-FE - Circuit Diagram (1 Of 2)
G07581920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

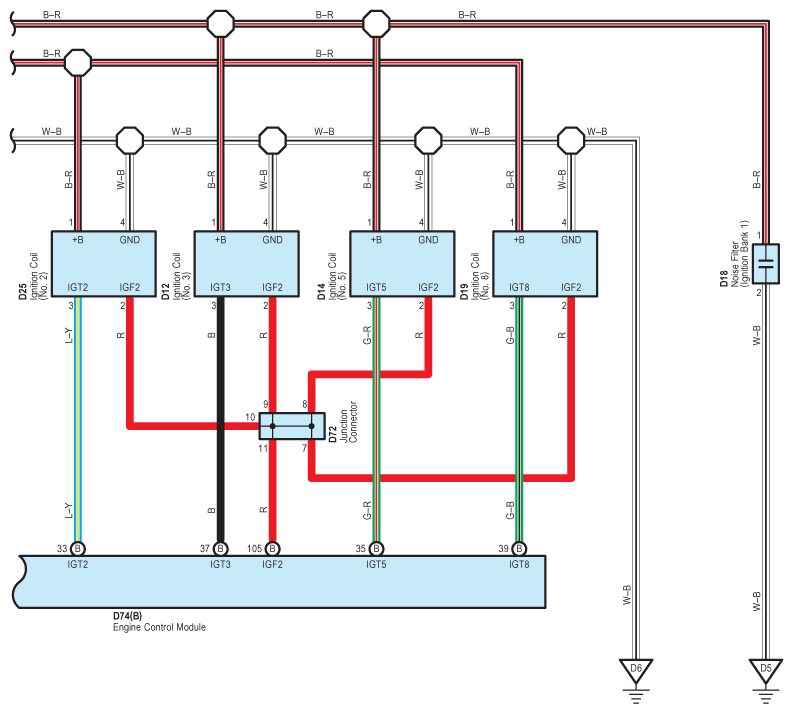

Fig 2: Ignition For 2UZ-FE - Circuit Diagram (2 Of 2)
G07581921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
