Headlight System: Notes — 2008 Toyota Tundra Base, 4.0 U Service Manual ~ LEMON Manuals

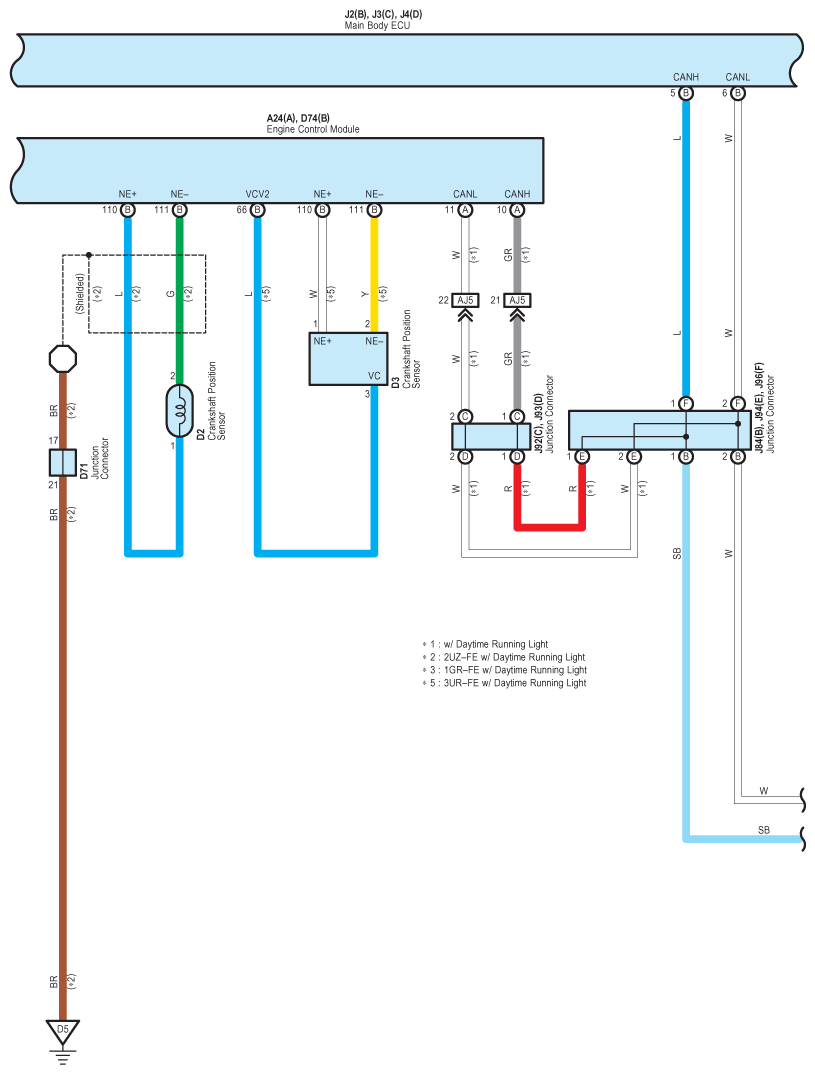

Fig 1: Headlight - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

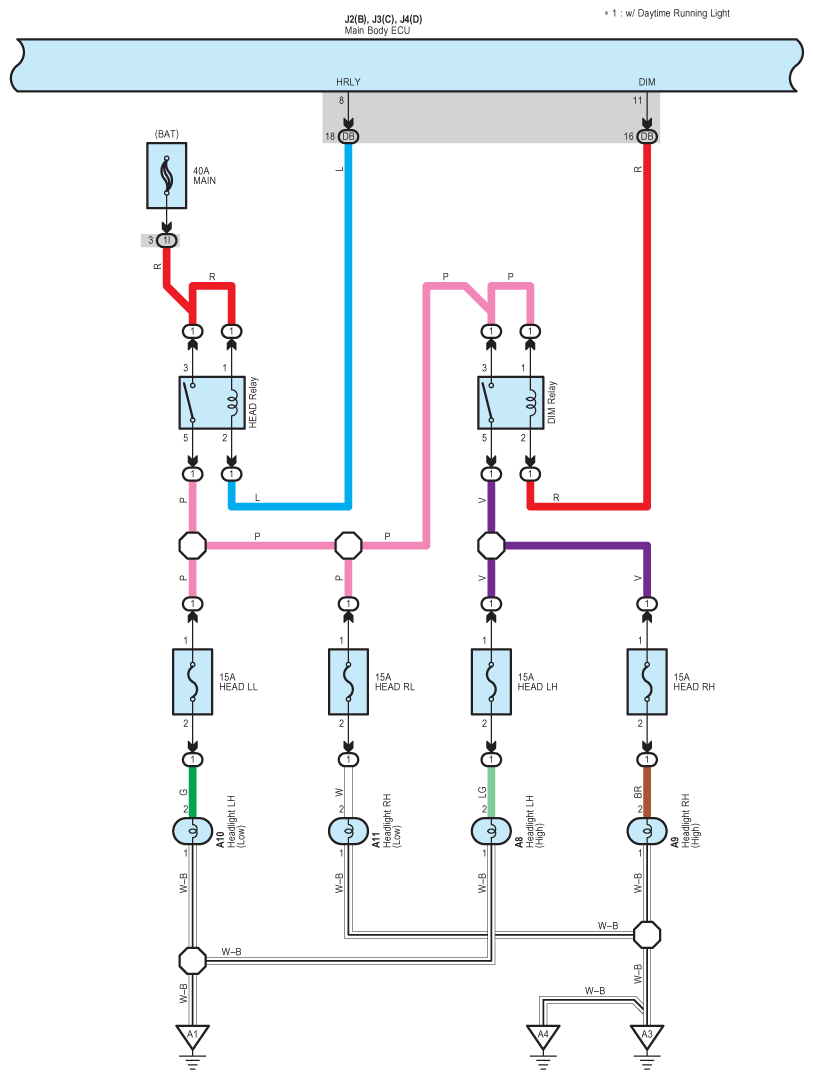

Fig 2: Headlight - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

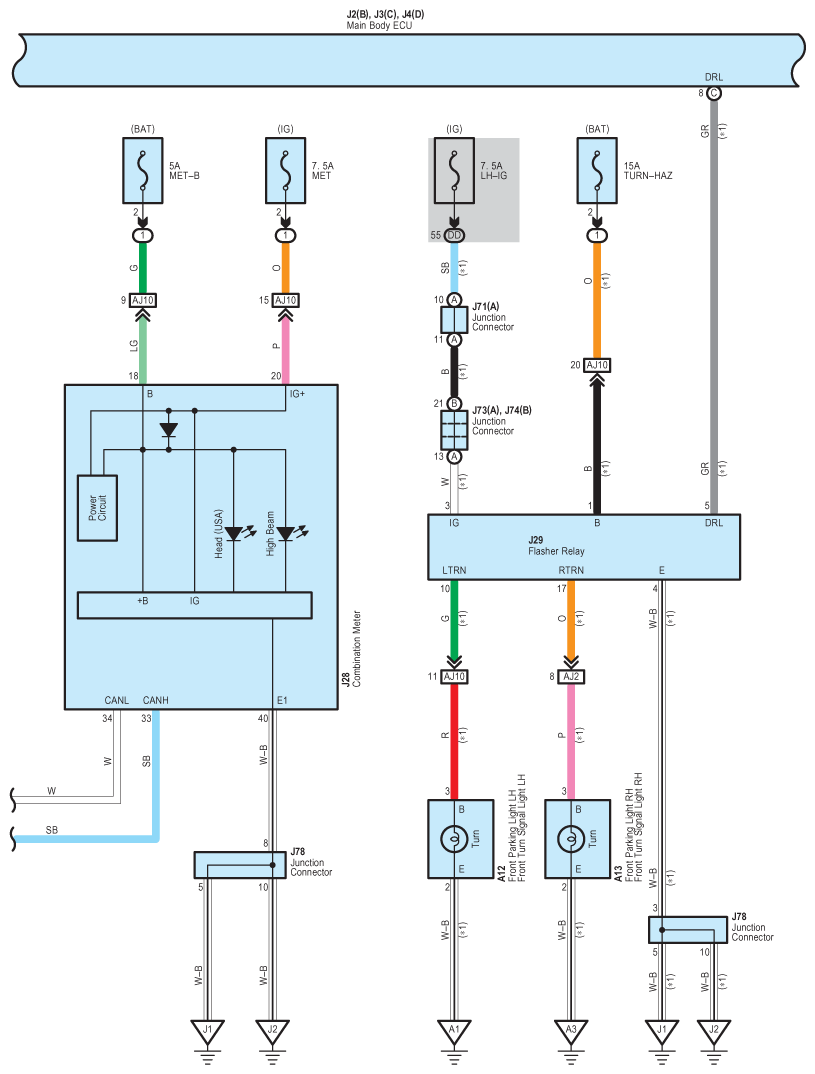

Fig 3: Headlight - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

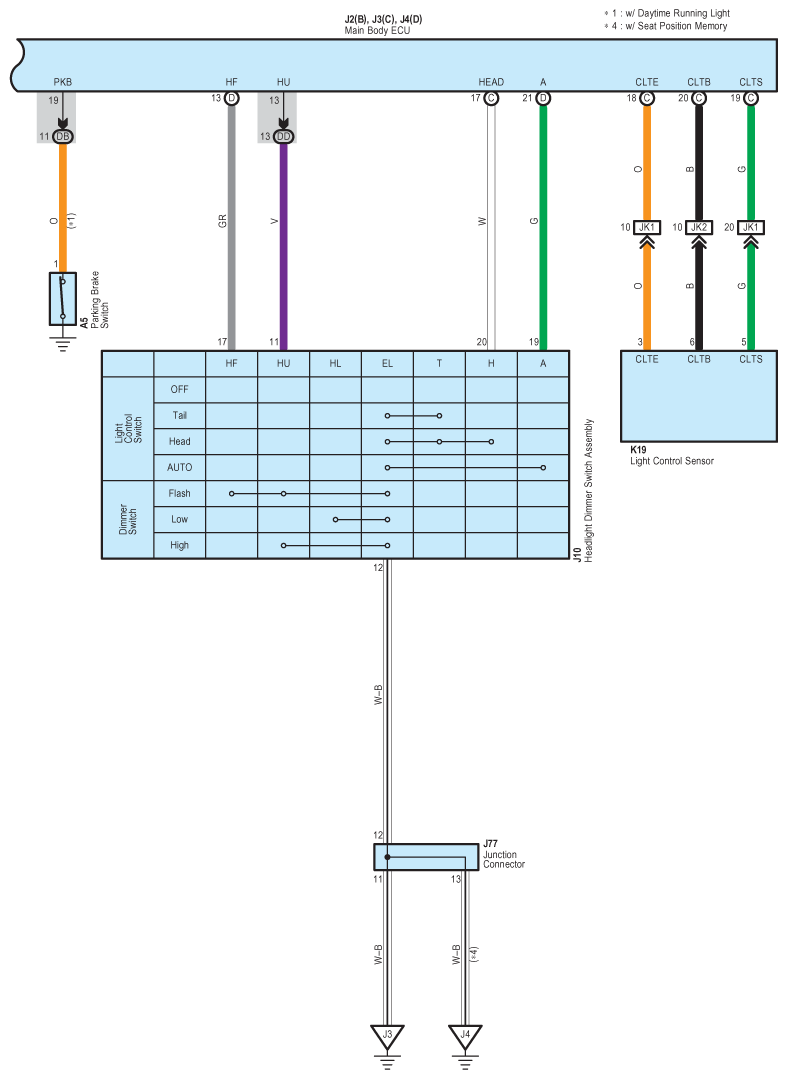

Fig 4: Headlight - Circuit Diagram (4 Of 5)

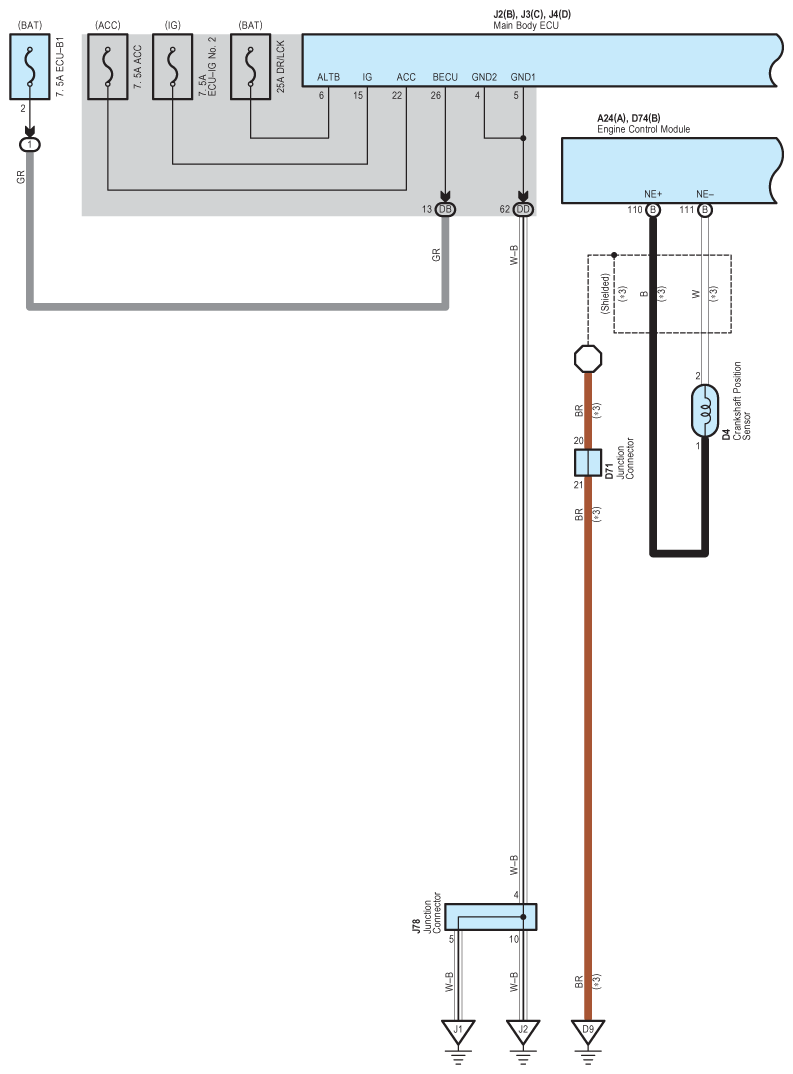

Fig 5: Headlight - Circuit Diagram (5 Of 5)
