Engine Control System for 3UR-FE: Notes

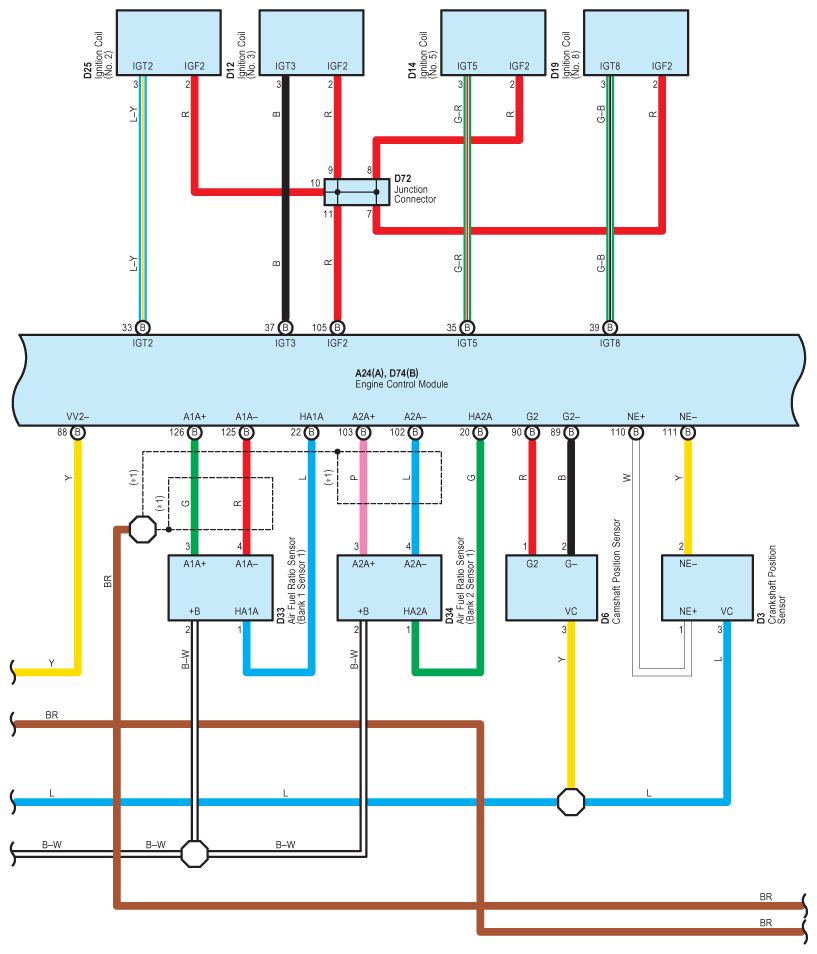

Fig 1: Engine Control For 3UR-FE - Circuit Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

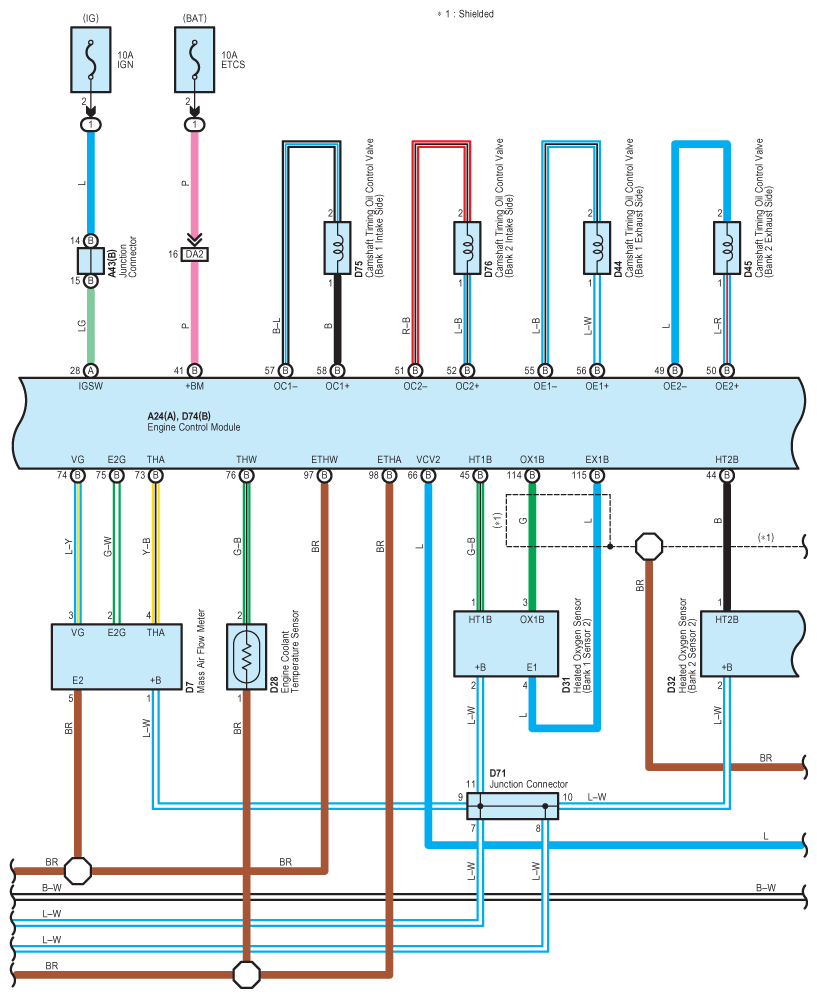

Fig 2: Engine Control For 3UR-FE - Circuit Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

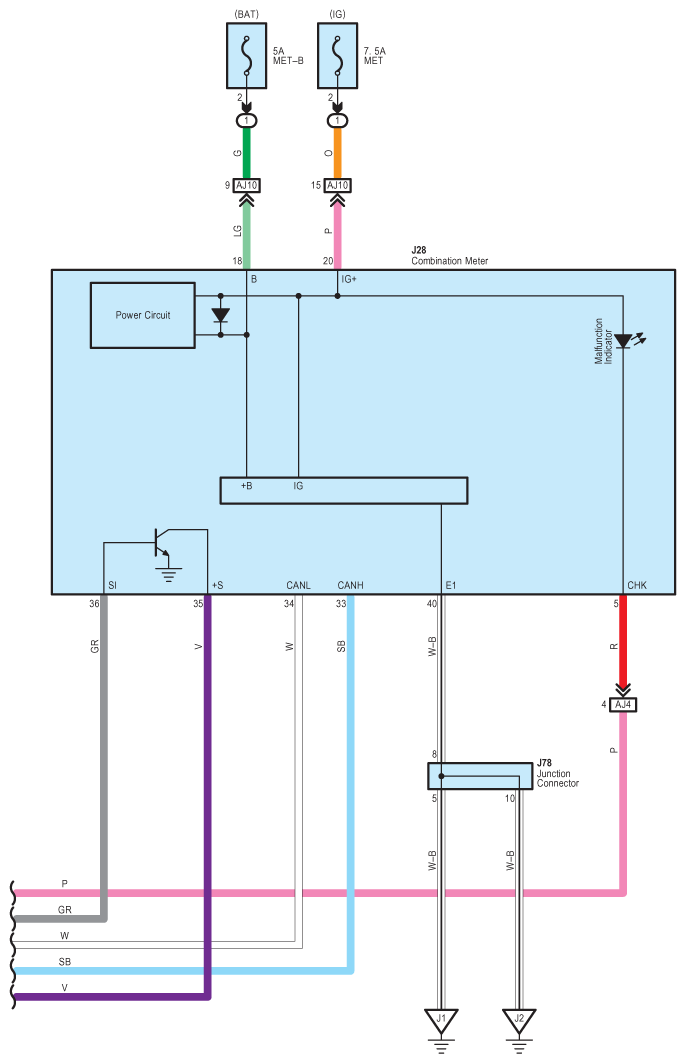

Fig 3: Engine Control For 3UR-FE - Circuit Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

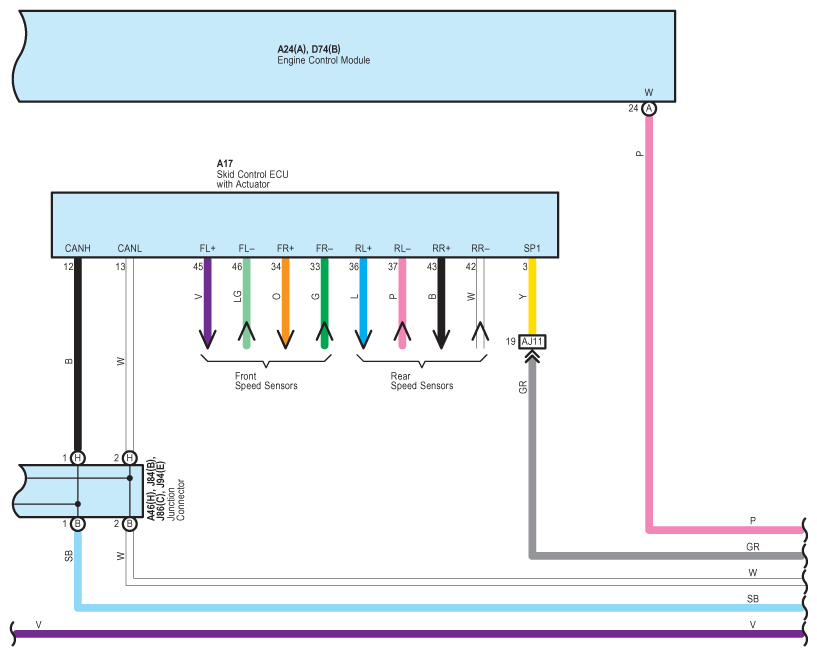

Fig 4: Engine Control For 3UR-FE - Circuit Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

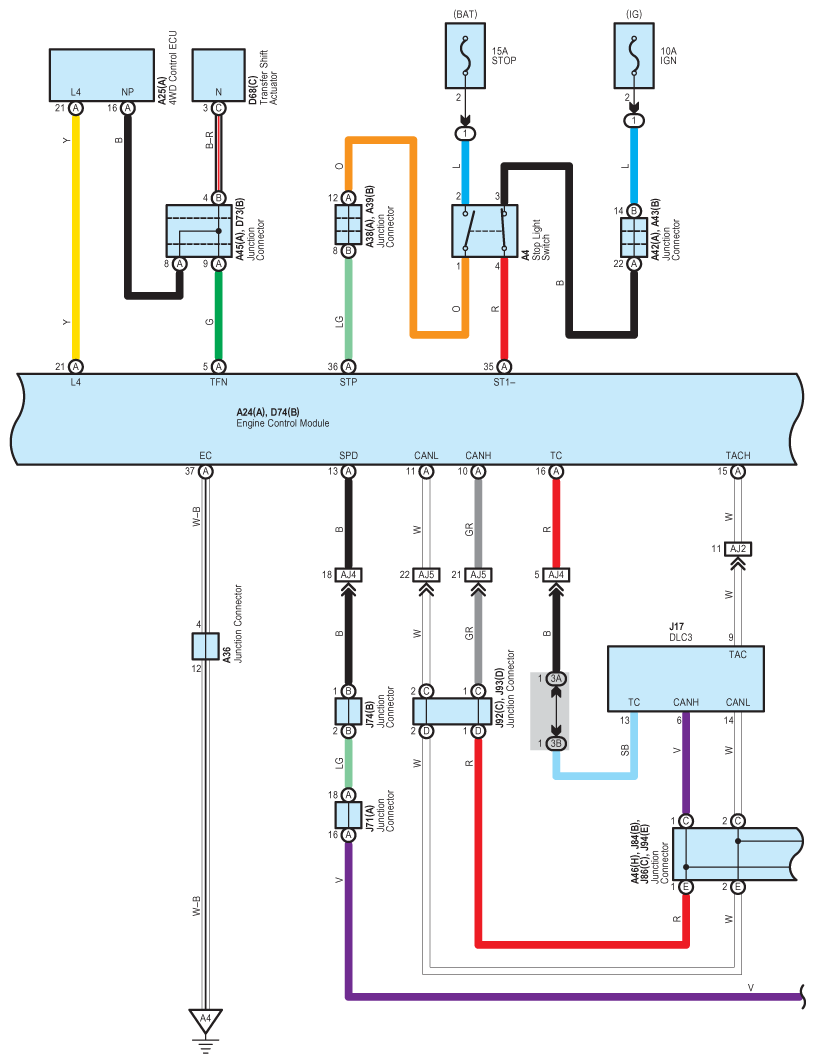

Fig 5: Engine Control For 3UR-FE - Circuit Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

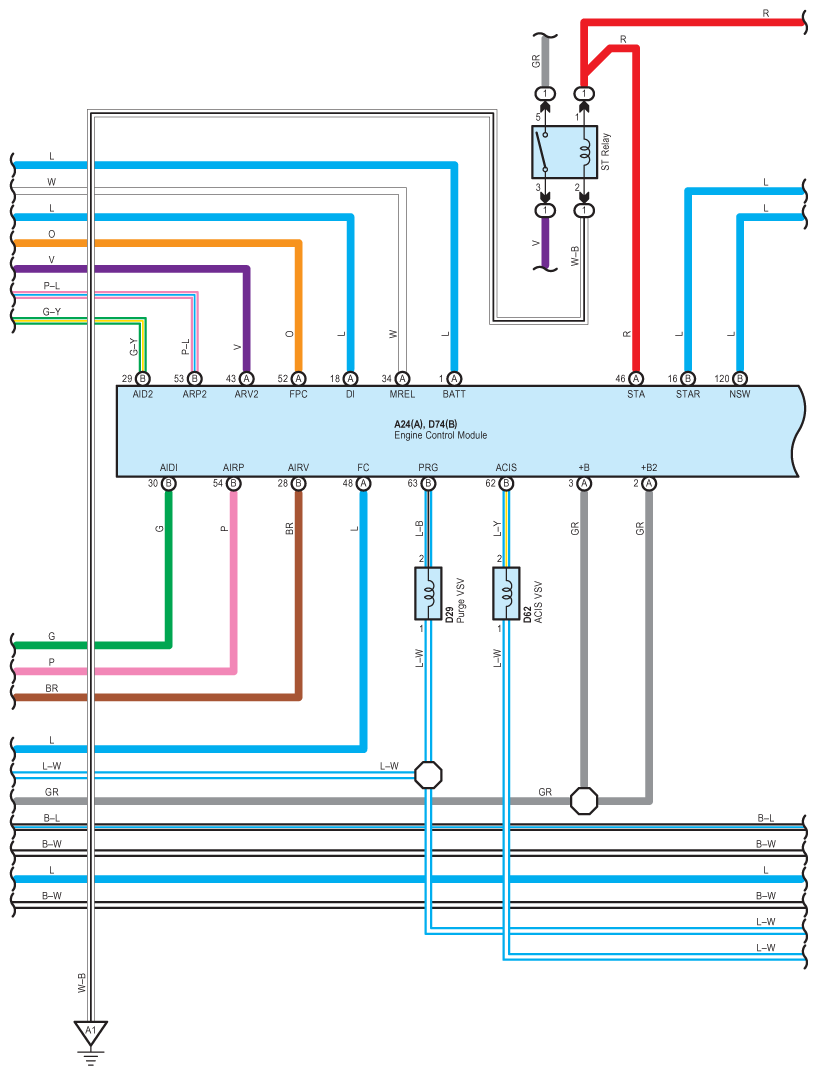

Fig 6: Engine Control For 3UR-FE - Circuit Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

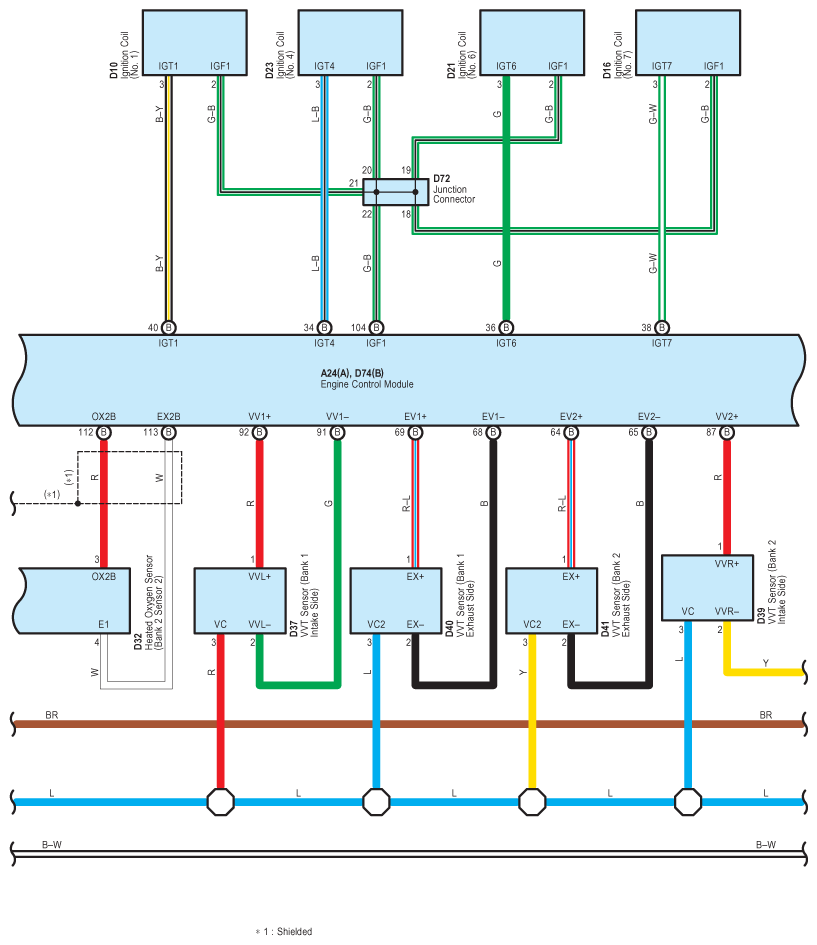

Fig 7: Engine Control For 3UR-FE - Circuit Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

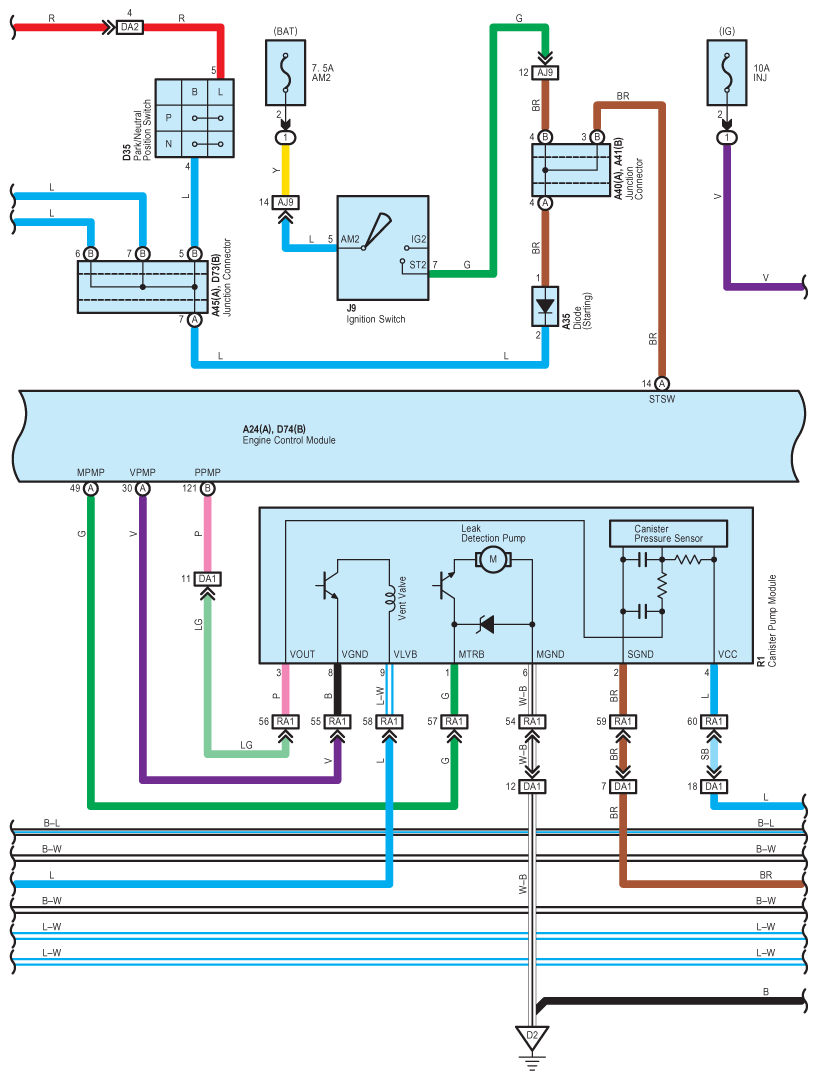

Fig 8: Engine Control For 3UR-FE - Circuit Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

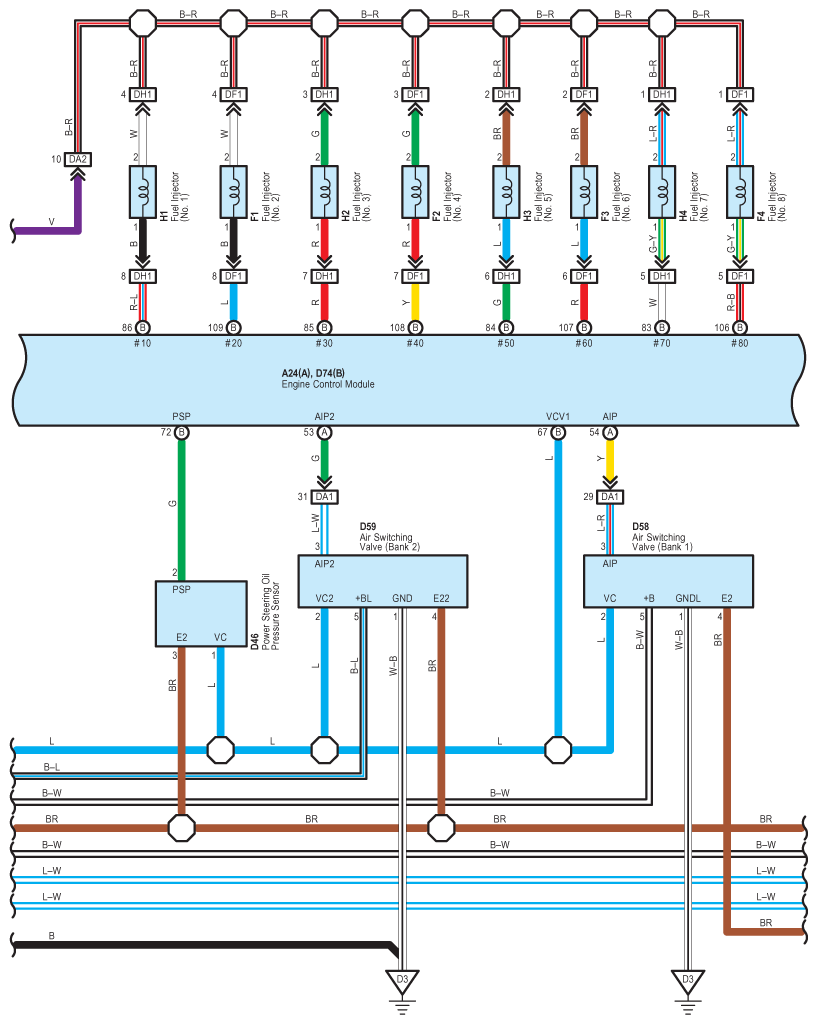

Fig 9: Engine Control For 3UR-FE - Circuit Diagram (9 Of 13)

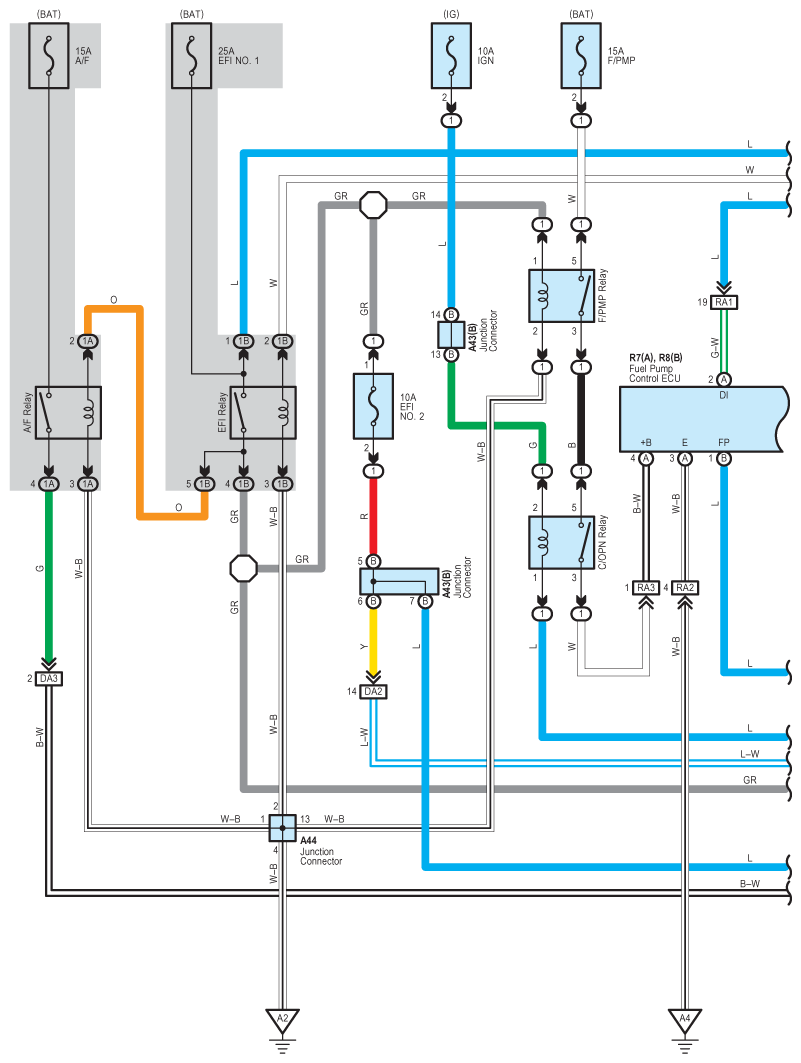

Fig 10: Engine Control For 3UR-FE - Circuit Diagram (10 Of 13)

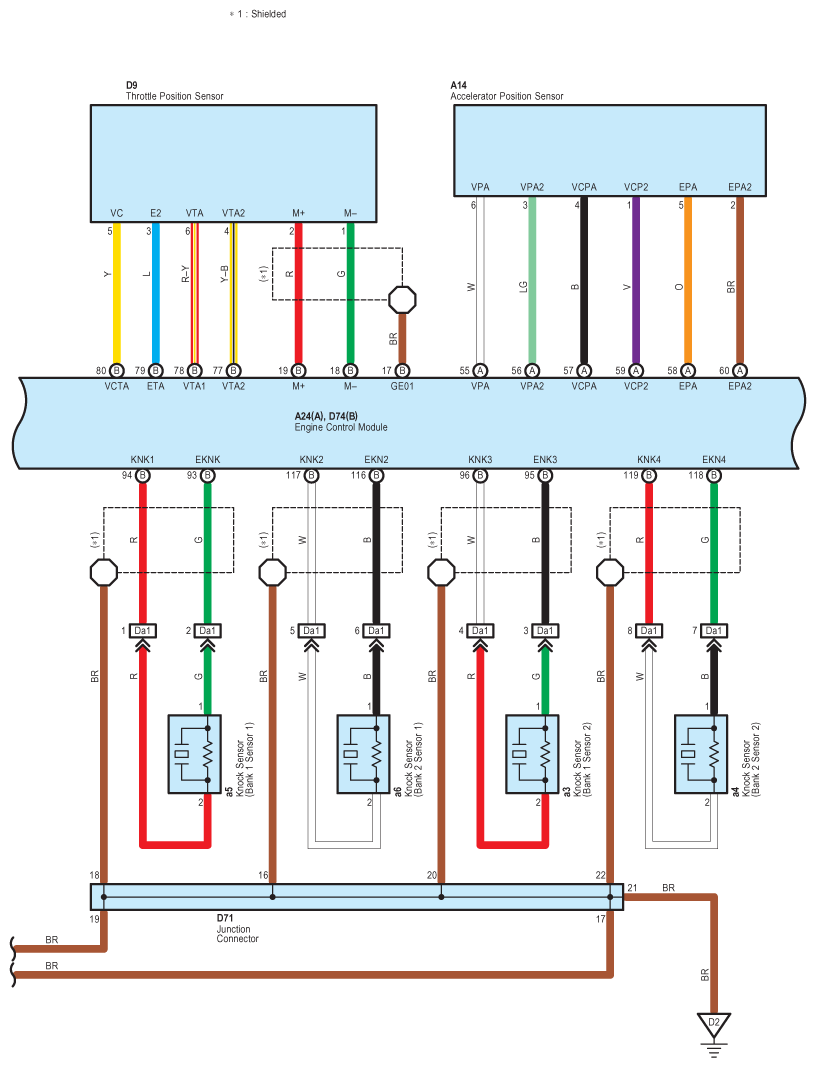

Fig 11: Engine Control For 3UR-FE - Circuit Diagram (11 Of 13)

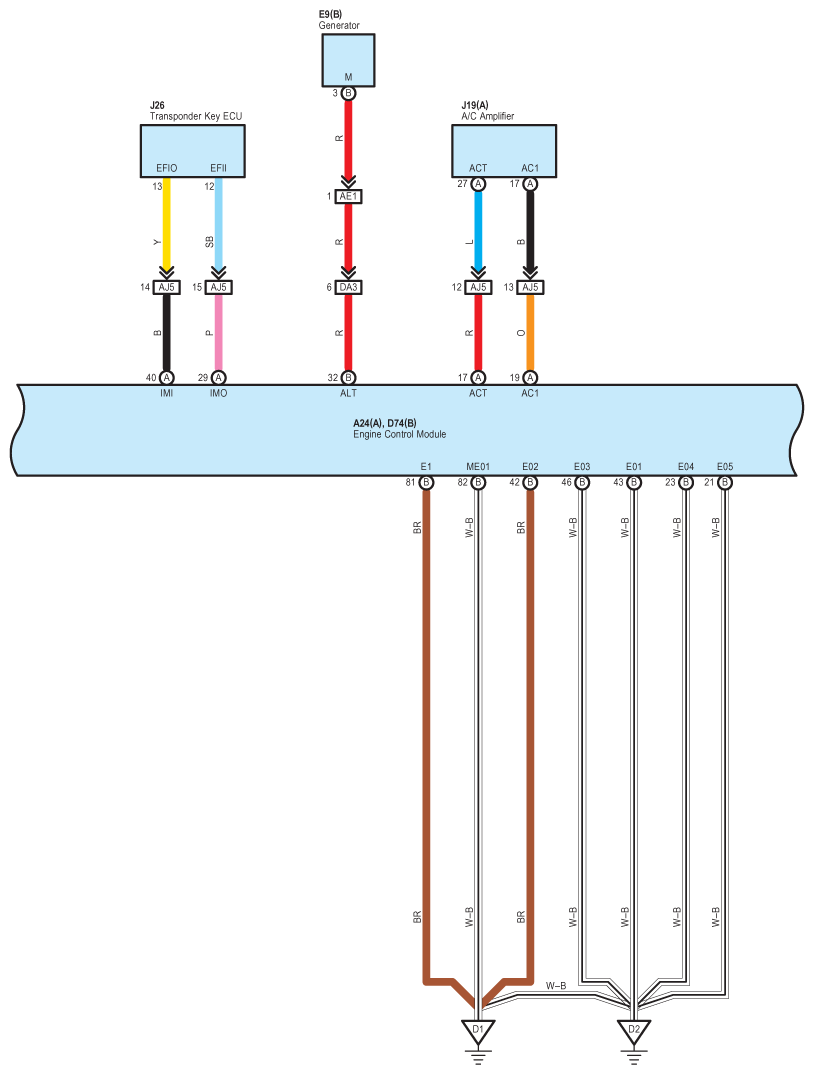

Fig 12: Engine Control For 3UR-FE - Circuit Diagram (12 Of 13)

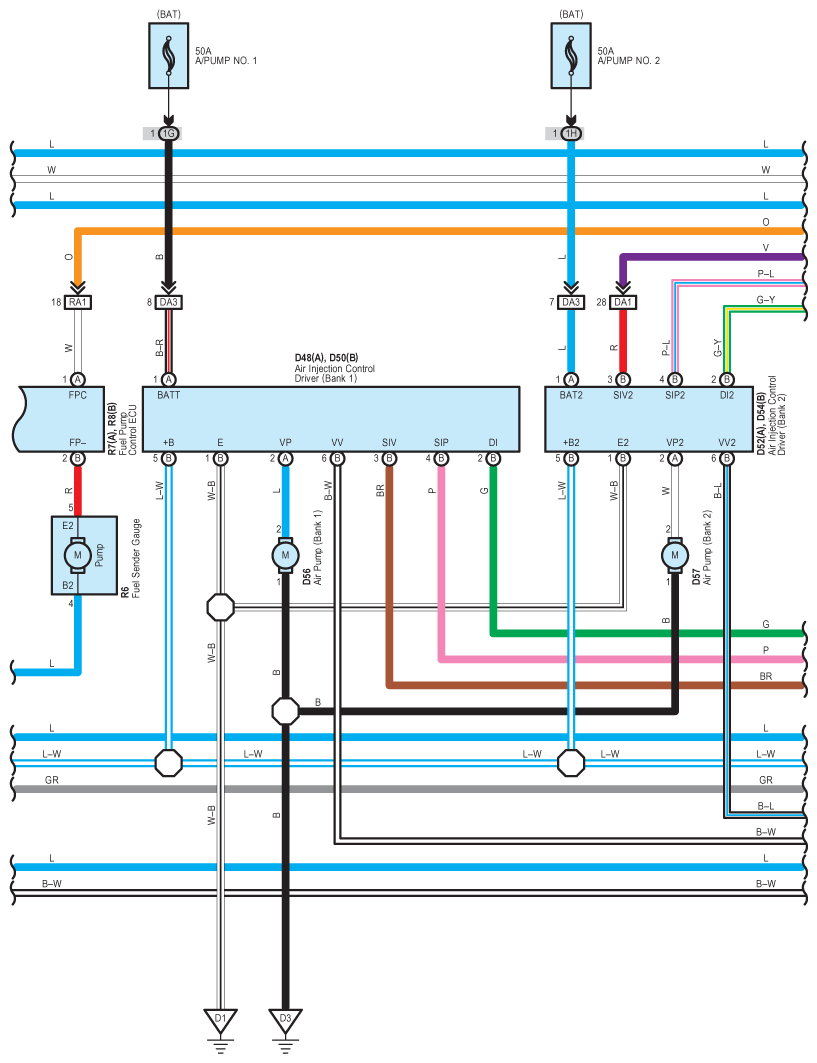

Fig 13: Engine Control For 3UR-FE - Circuit Diagram (13 Of 13)
