Engine Control System for 2UZ-FE: Notes

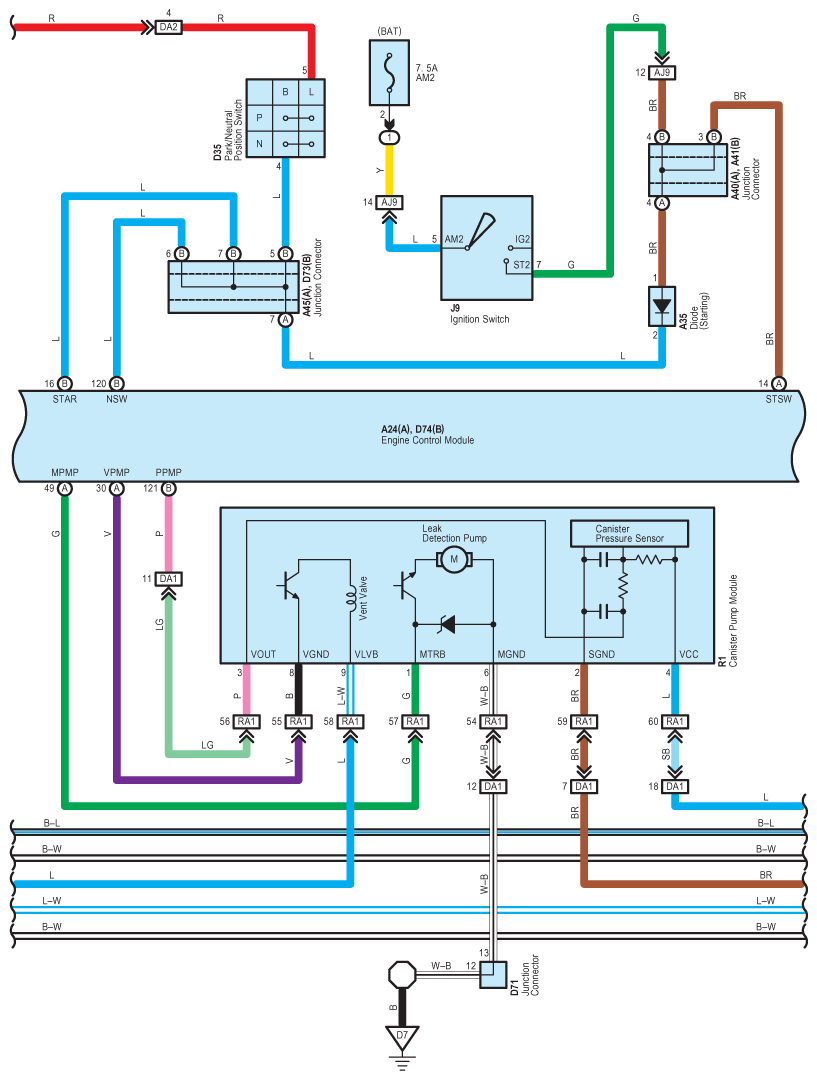

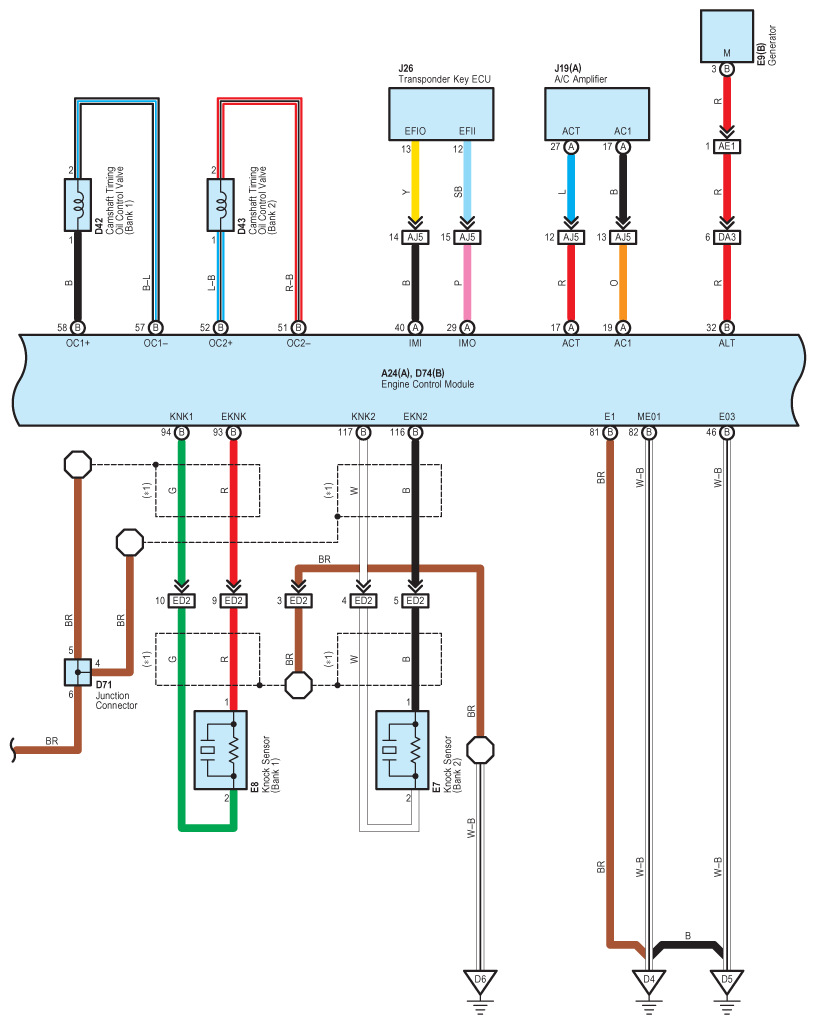

Fig 1: Engine Control For 2UZ-FE - Circuit Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

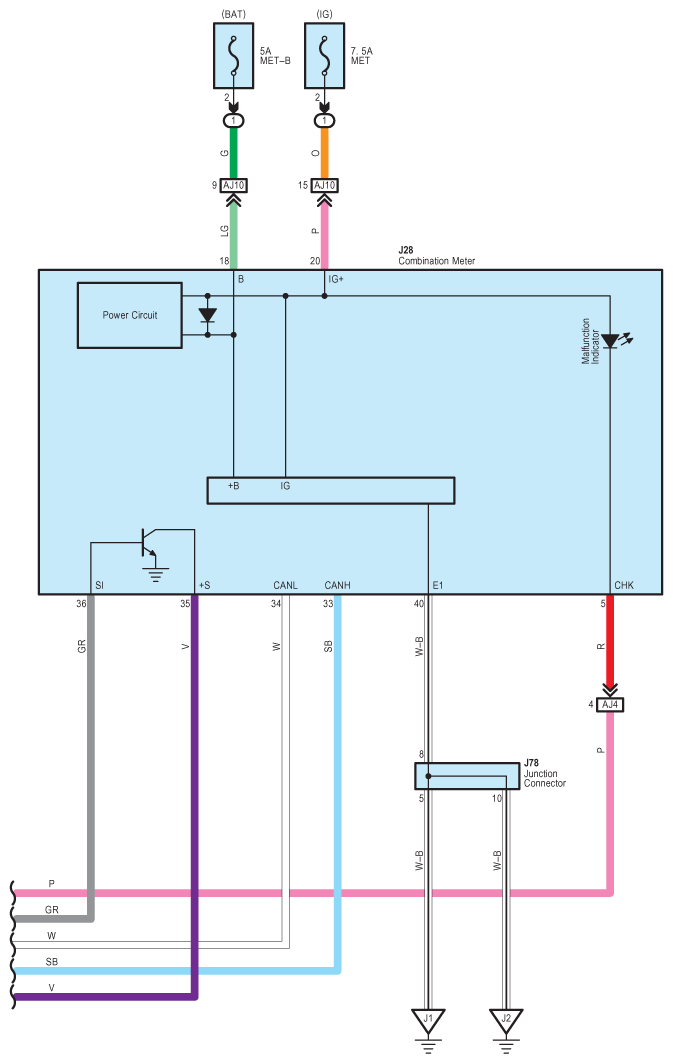

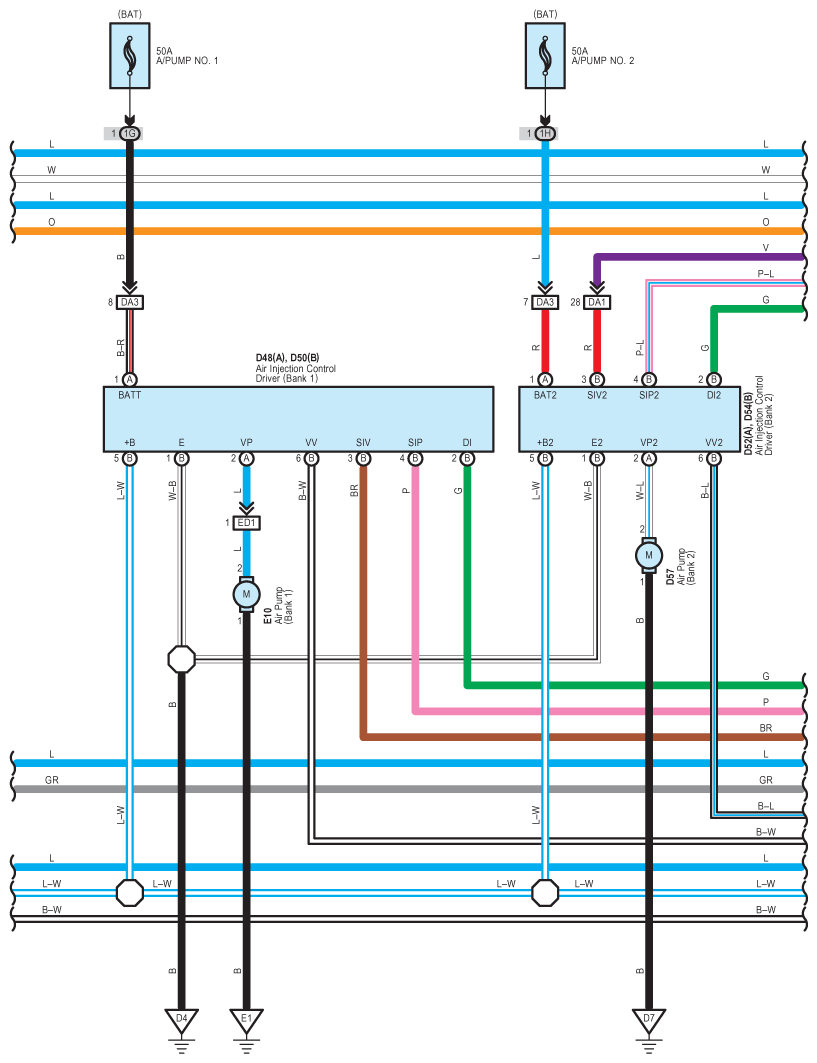

Fig 2: Engine Control For 2UZ-FE - Circuit Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

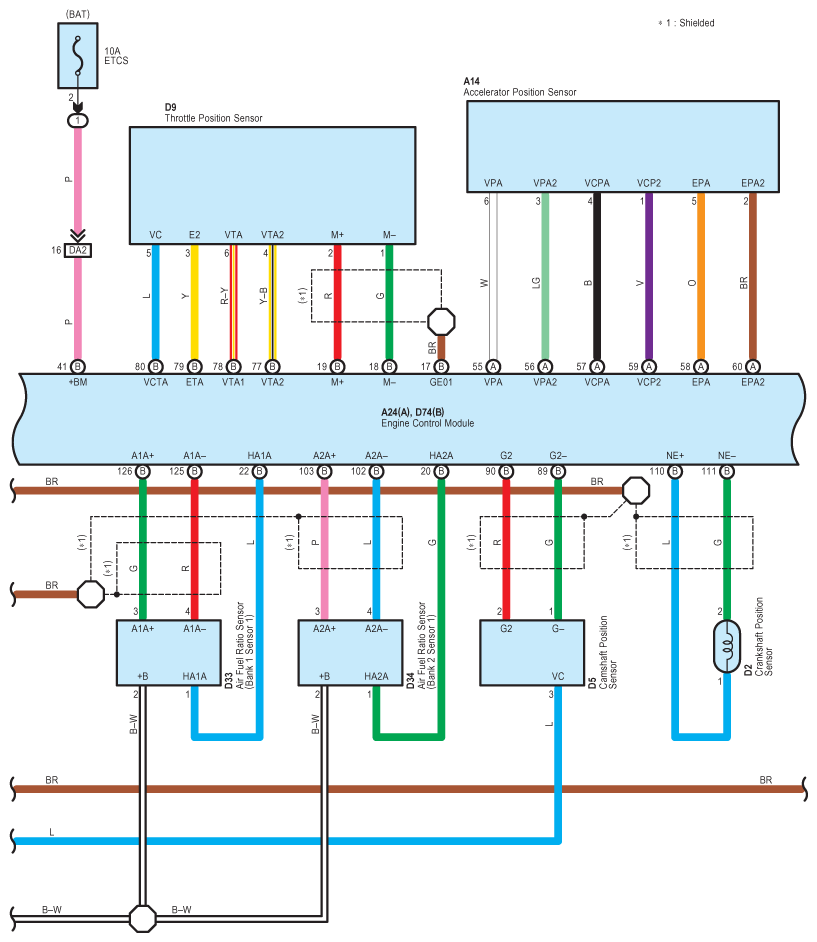

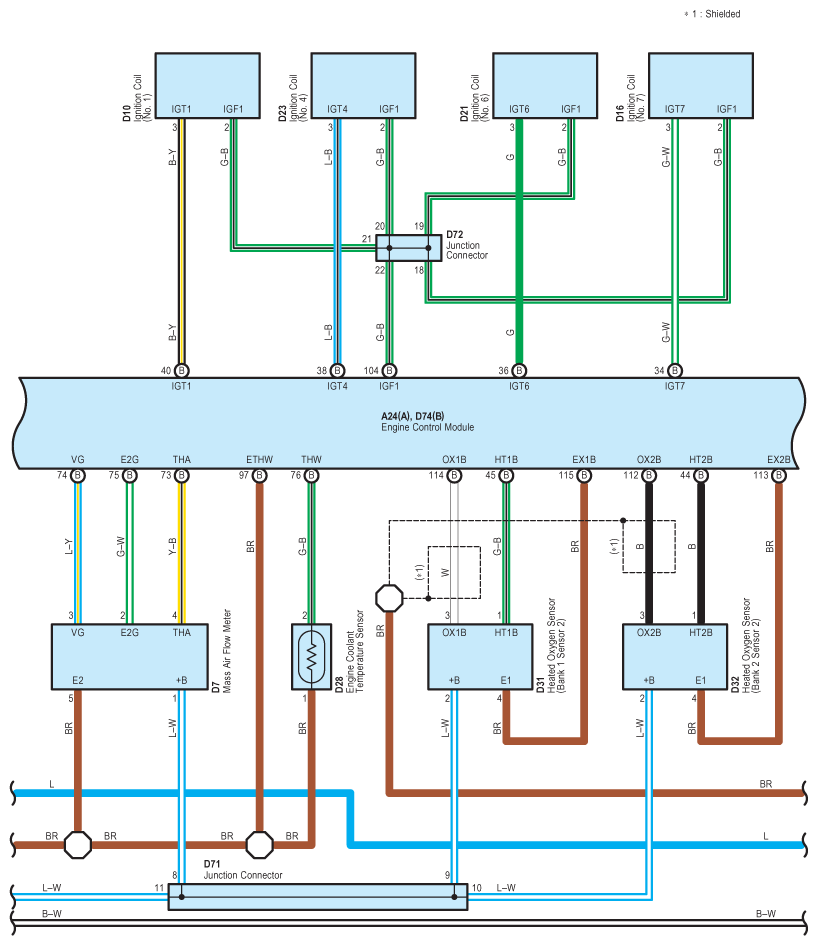

Fig 3: Engine Control For 2UZ-FE - Circuit Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

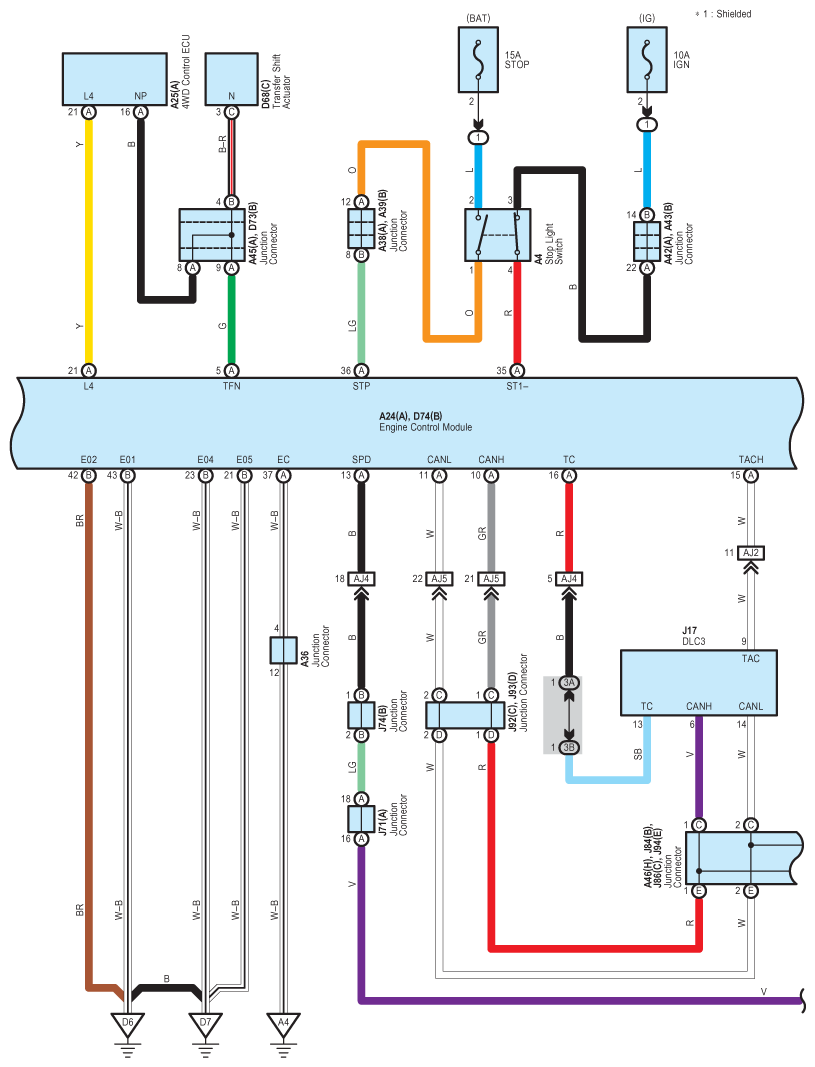

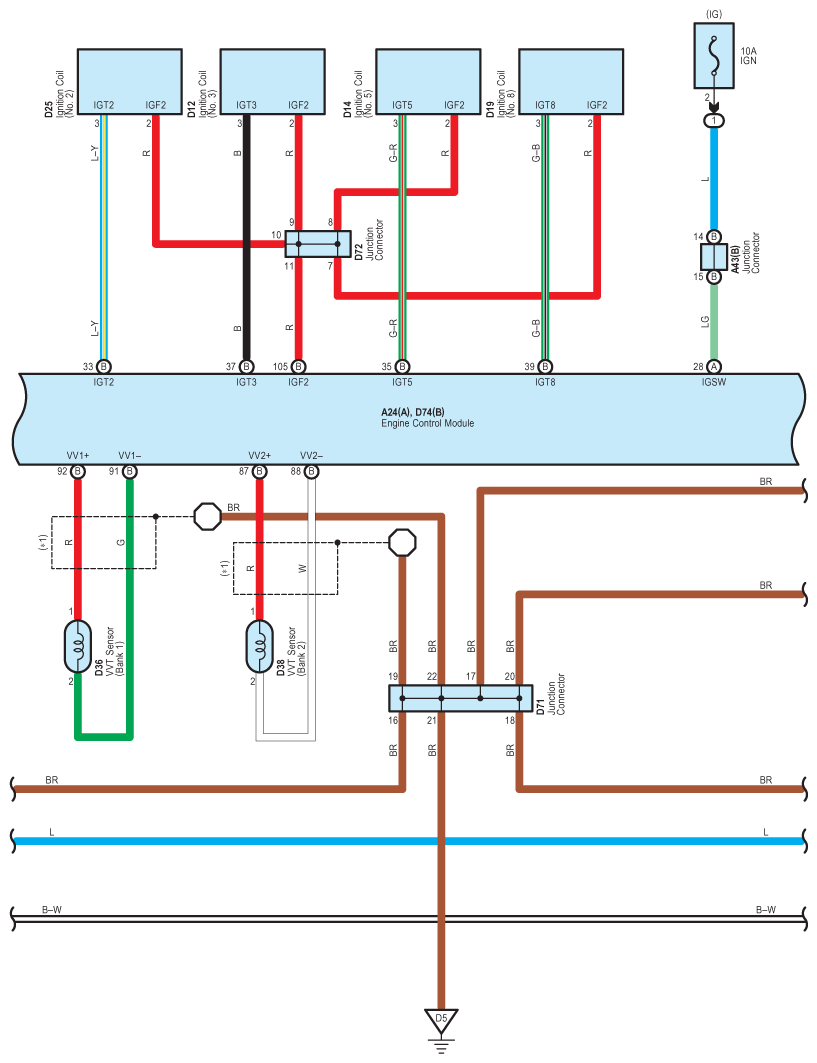

Fig 4: Engine Control For 2UZ-FE - Circuit Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

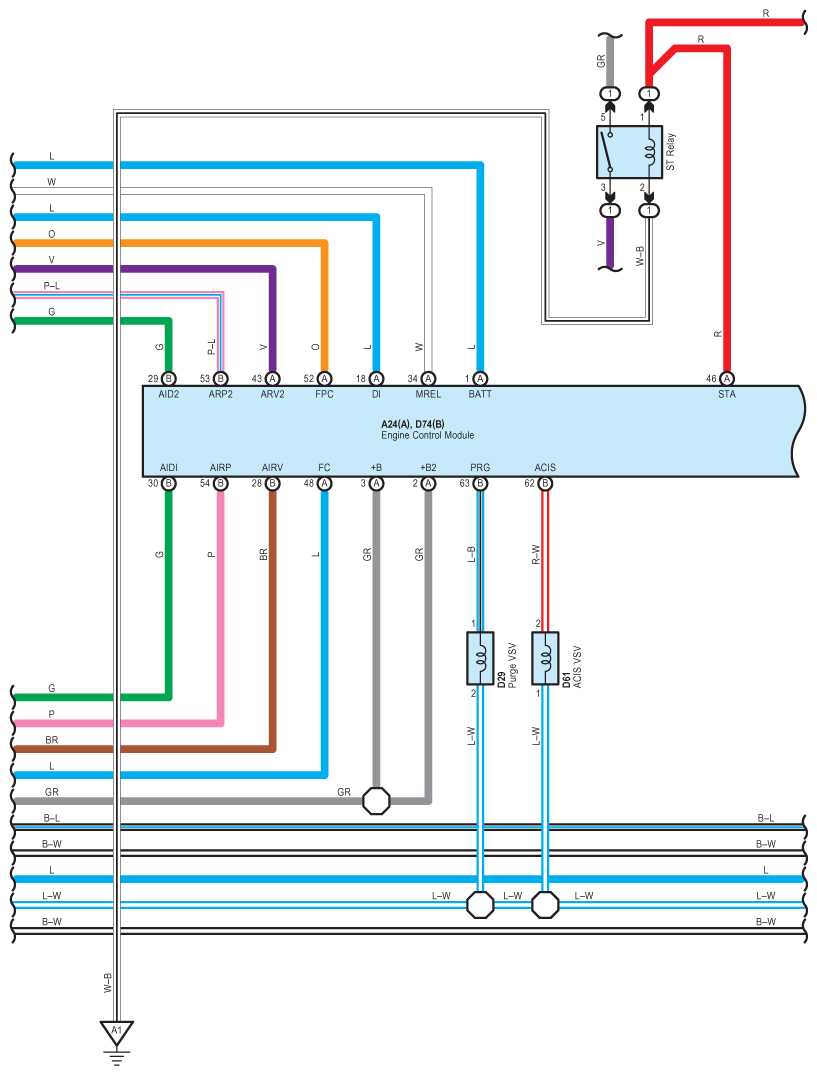

Fig 5: Engine Control For 2UZ-FE - Circuit Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

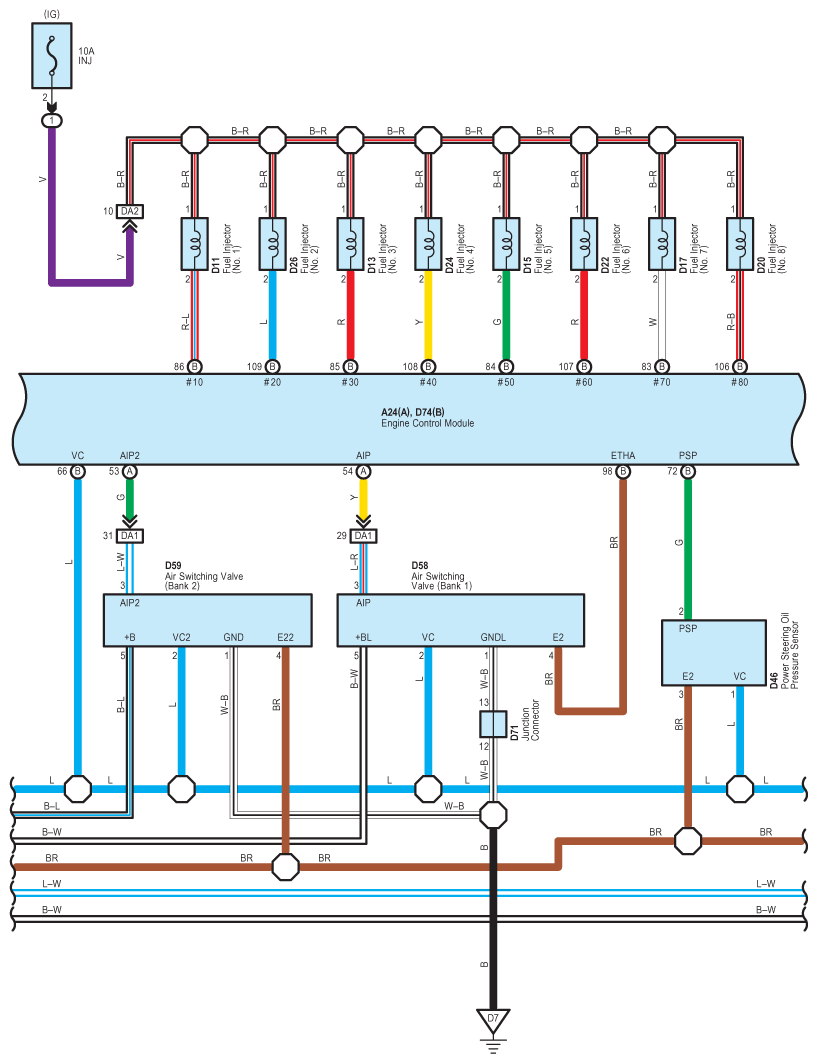

Fig 6: Engine Control For 2UZ-FE - Circuit Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

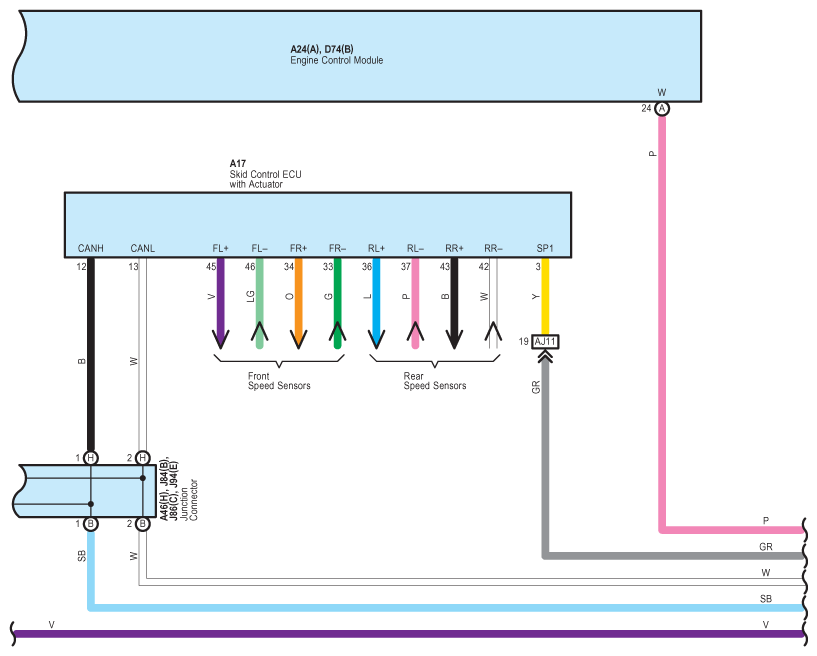

Fig 7: Engine Control For 2UZ-FE - Circuit Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

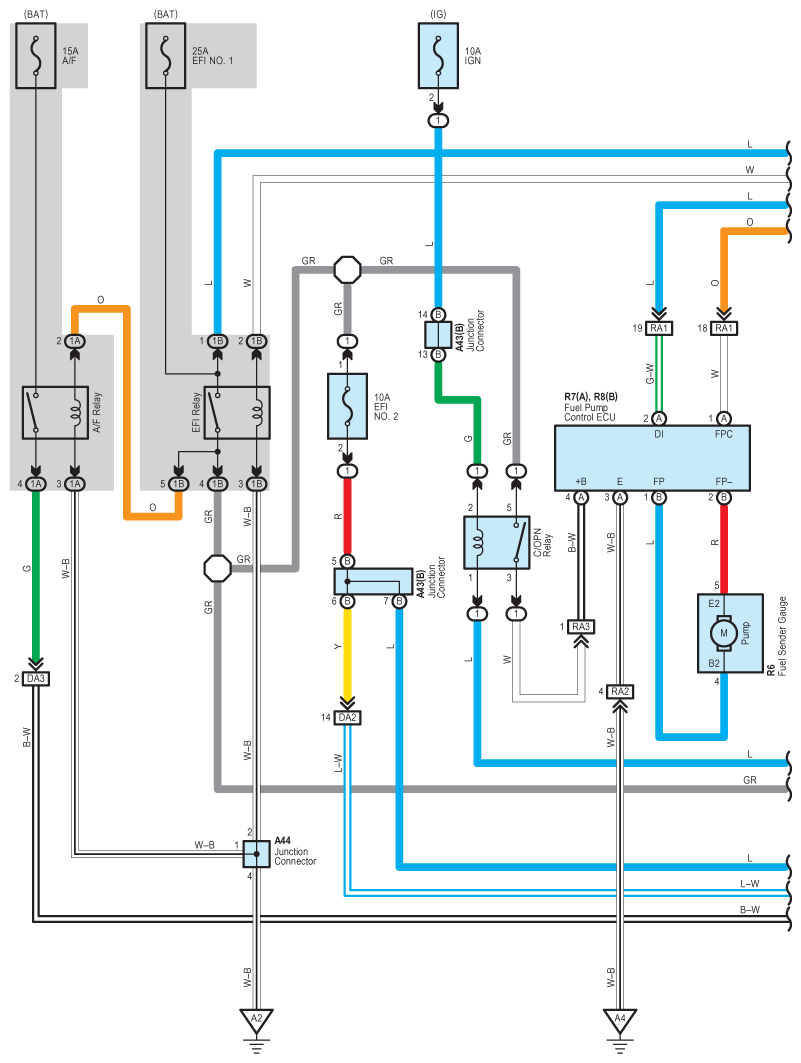

Fig 8: Engine Control For 2UZ-FE - Circuit Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control For 2UZ-FE - Circuit Diagram (9 Of 12)

Fig 10: Engine Control For 2UZ-FE - Circuit Diagram (10 Of 12)

Fig 11: Engine Control For 2UZ-FE - Circuit Diagram (11 Of 12)

Fig 12: Engine Control For 2UZ-FE - Circuit Diagram (12 Of 12)
