Cruise Control System for 1GR-FE: Notes

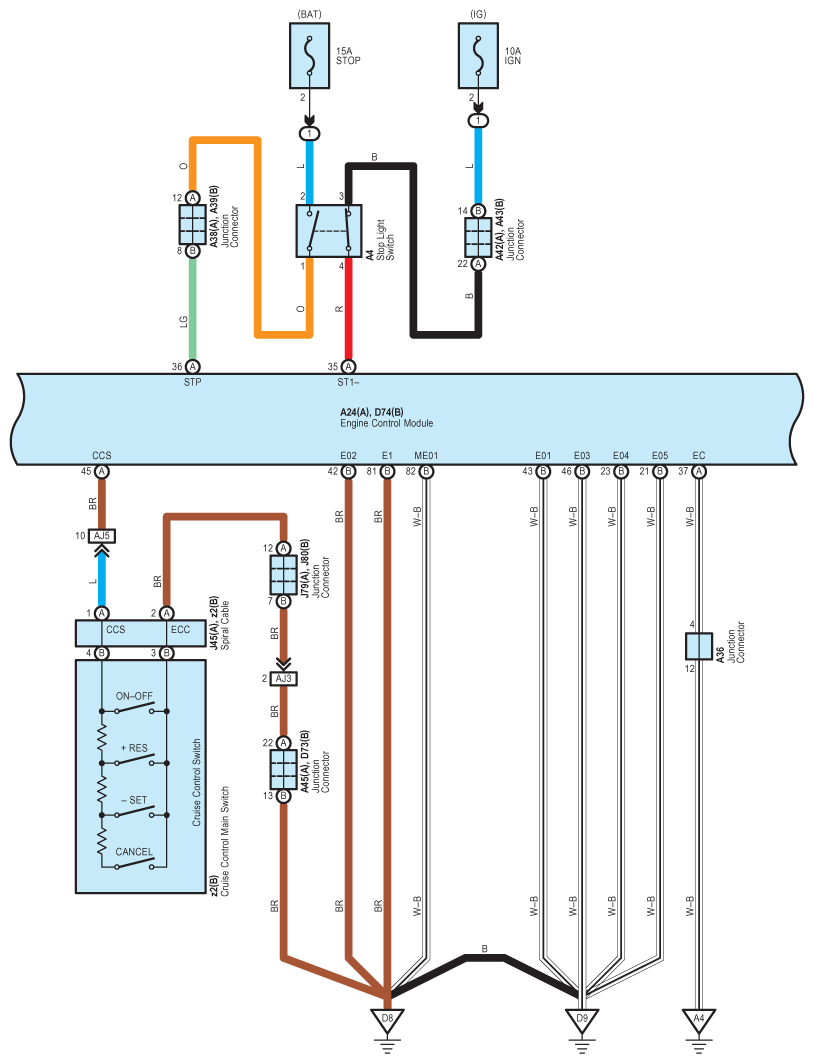

Fig 1: Cruise Control For 1GR-FE - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

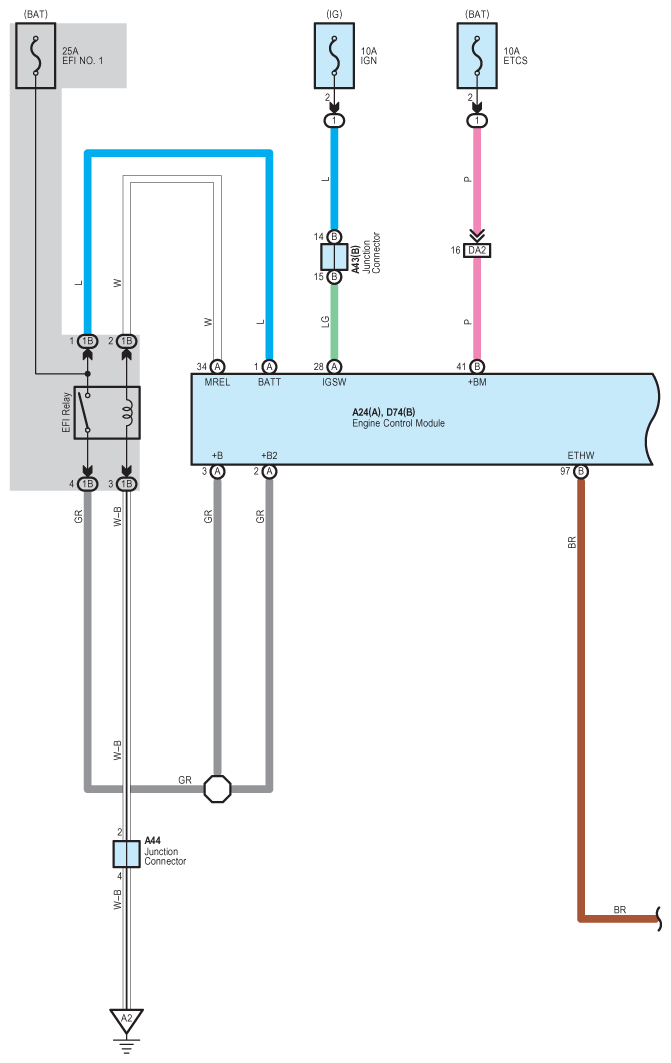

Fig 2: Cruise Control For 1GR-FE - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

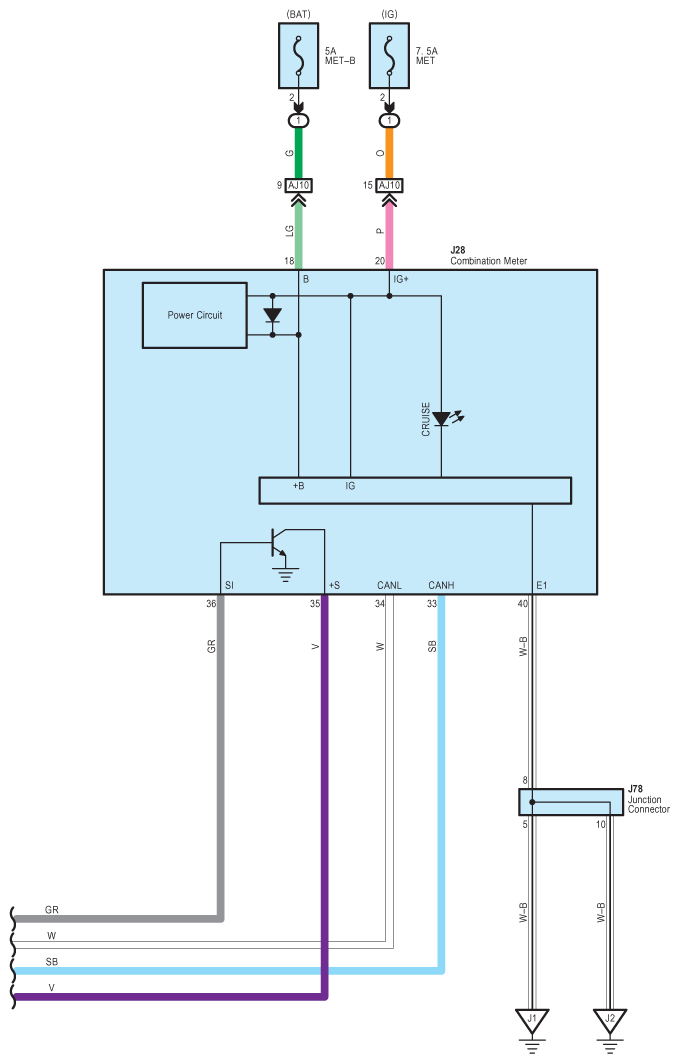

Fig 3: Cruise Control For 1GR-FE - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

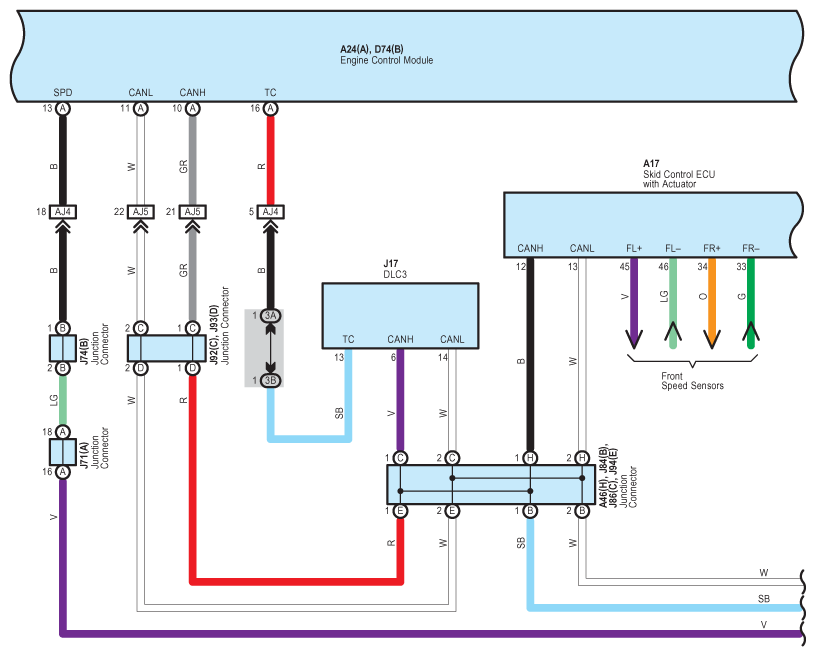

Fig 4: Cruise Control For 1GR-FE - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

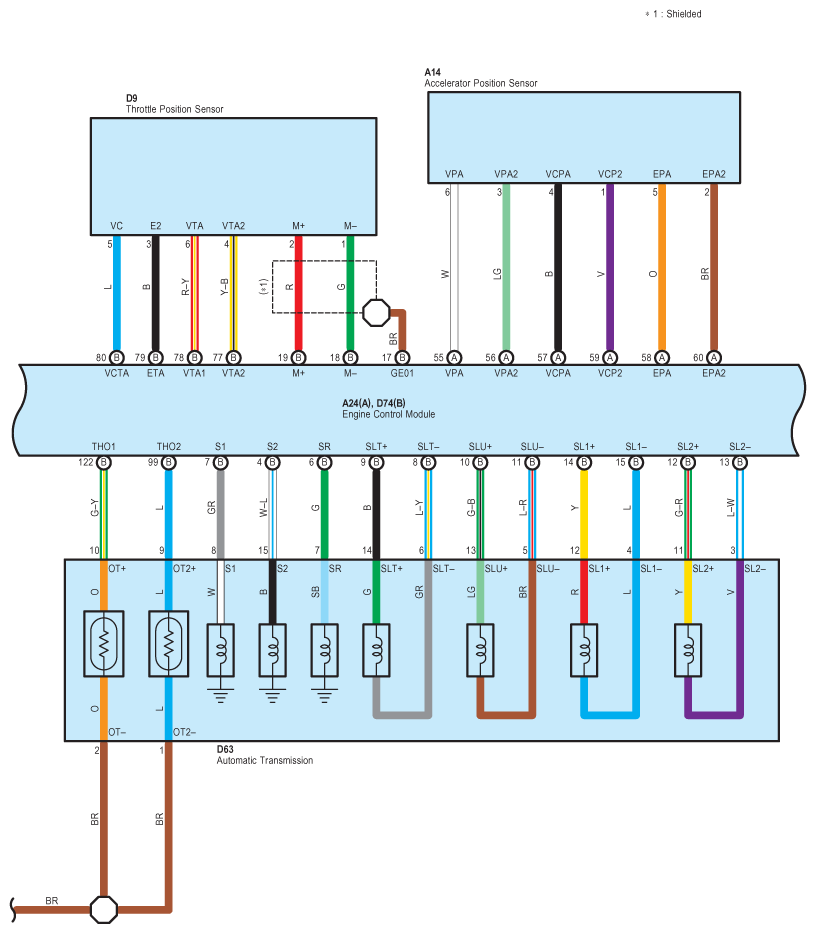

Fig 5: Cruise Control For 1GR-FE - Circuit Diagram (5 Of 7)

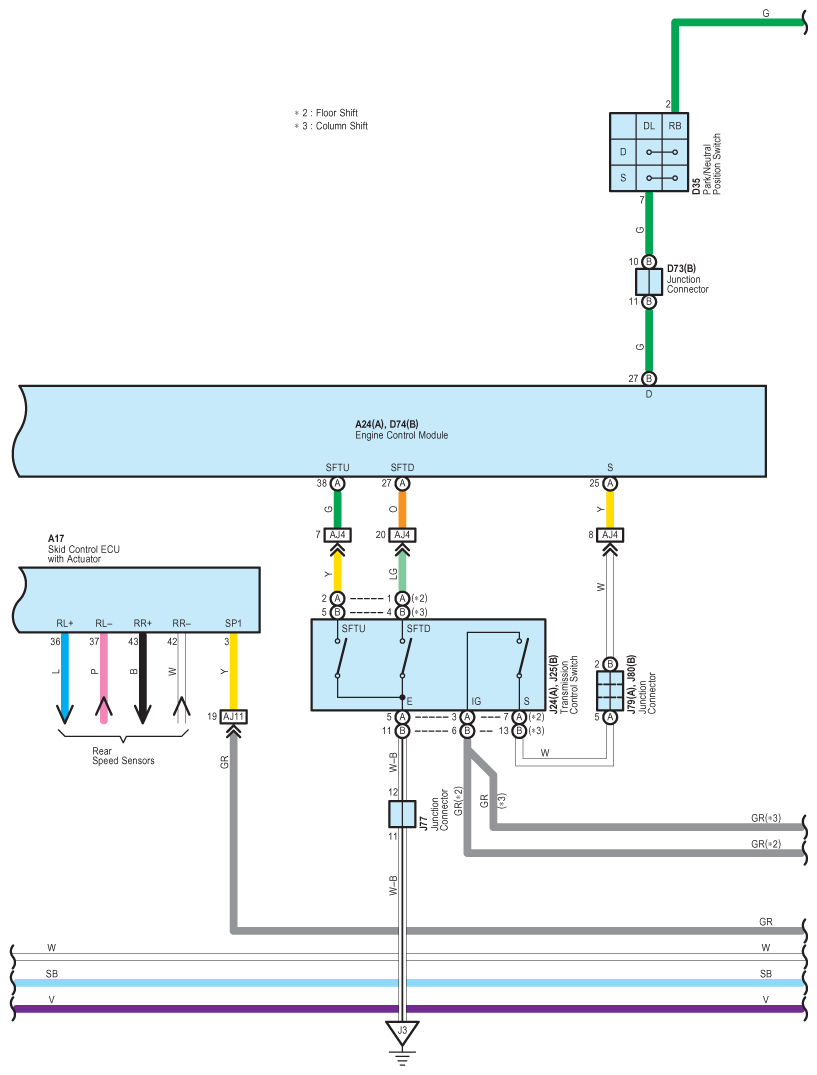

Fig 6: Cruise Control For 1GR-FE - Circuit Diagram (6 Of 7)

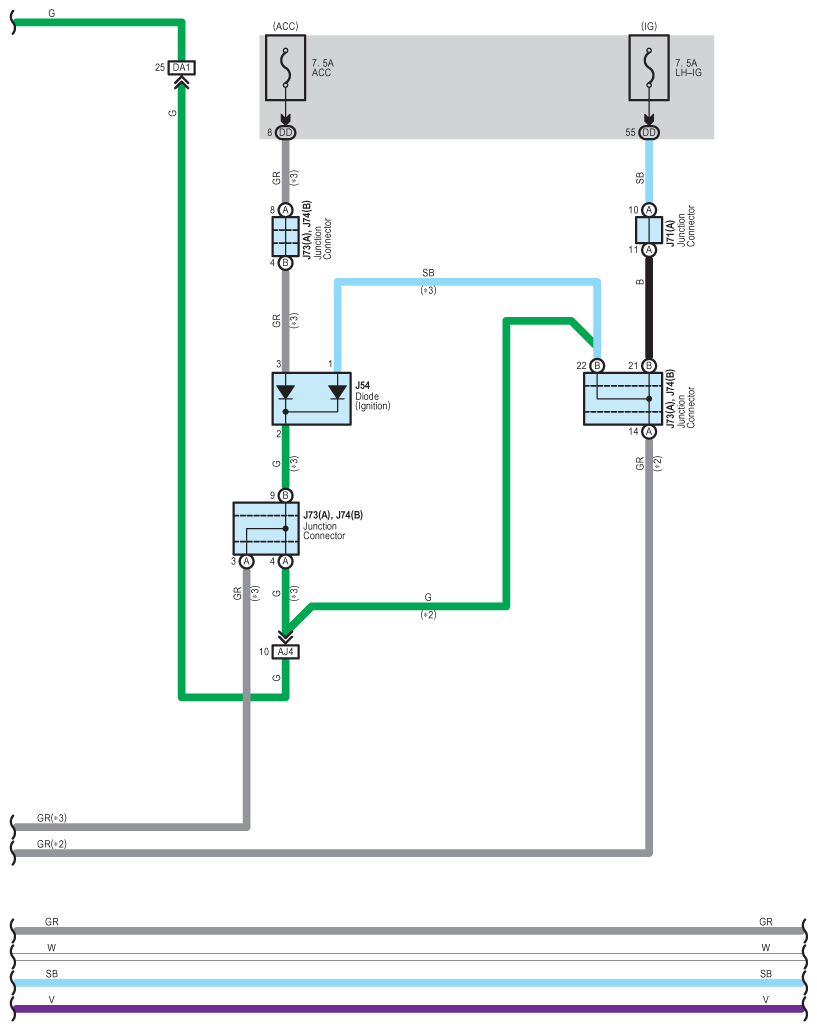

Fig 7: Cruise Control For 1GR-FE - Circuit Diagram (7 Of 7)
