Headlight System: Notes

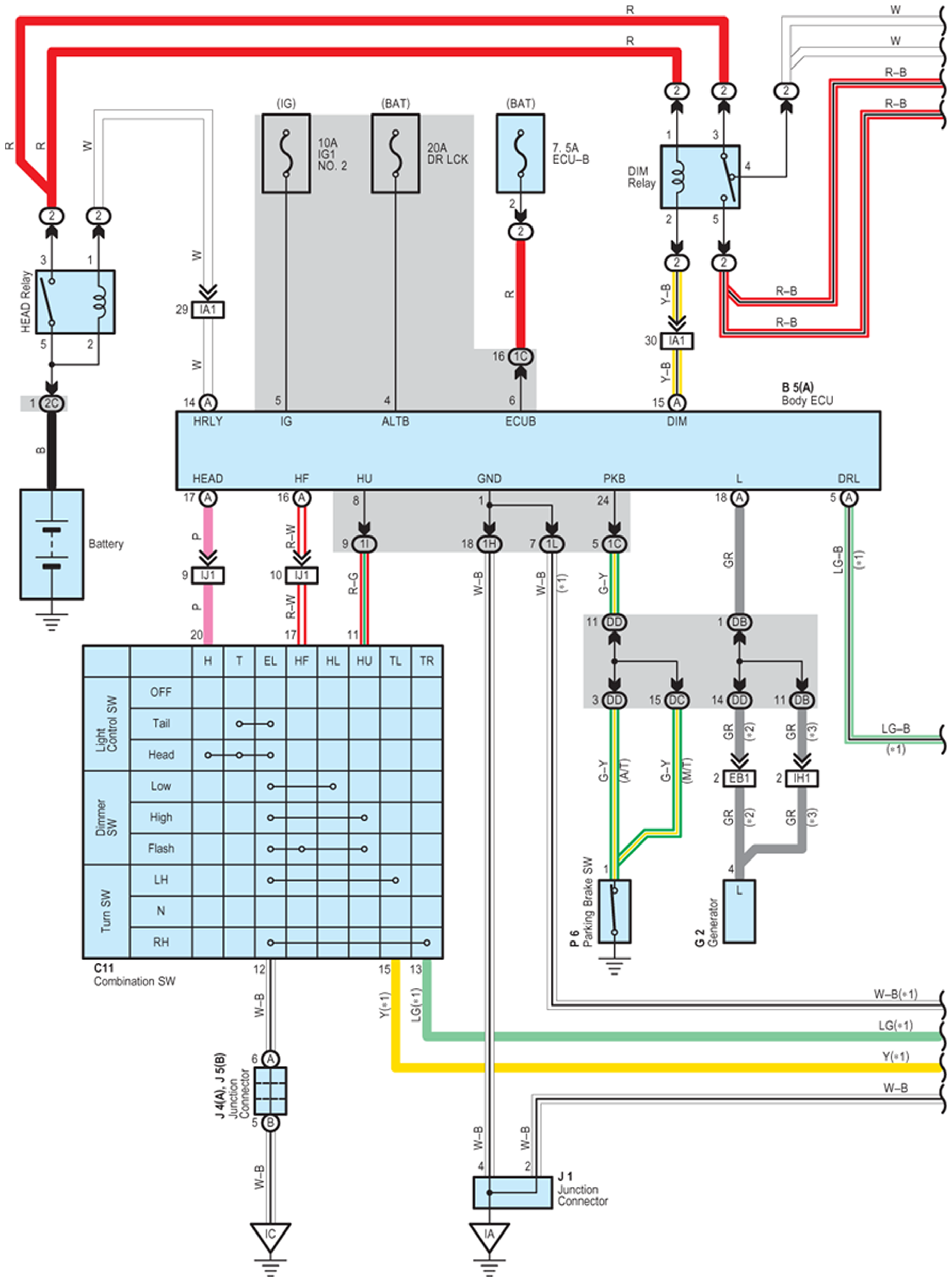

Fig 1: Headlight - Circuit Diagram (1 Of 3)
G07594814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight - Circuit Diagram (2 Of 3)
G07594815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

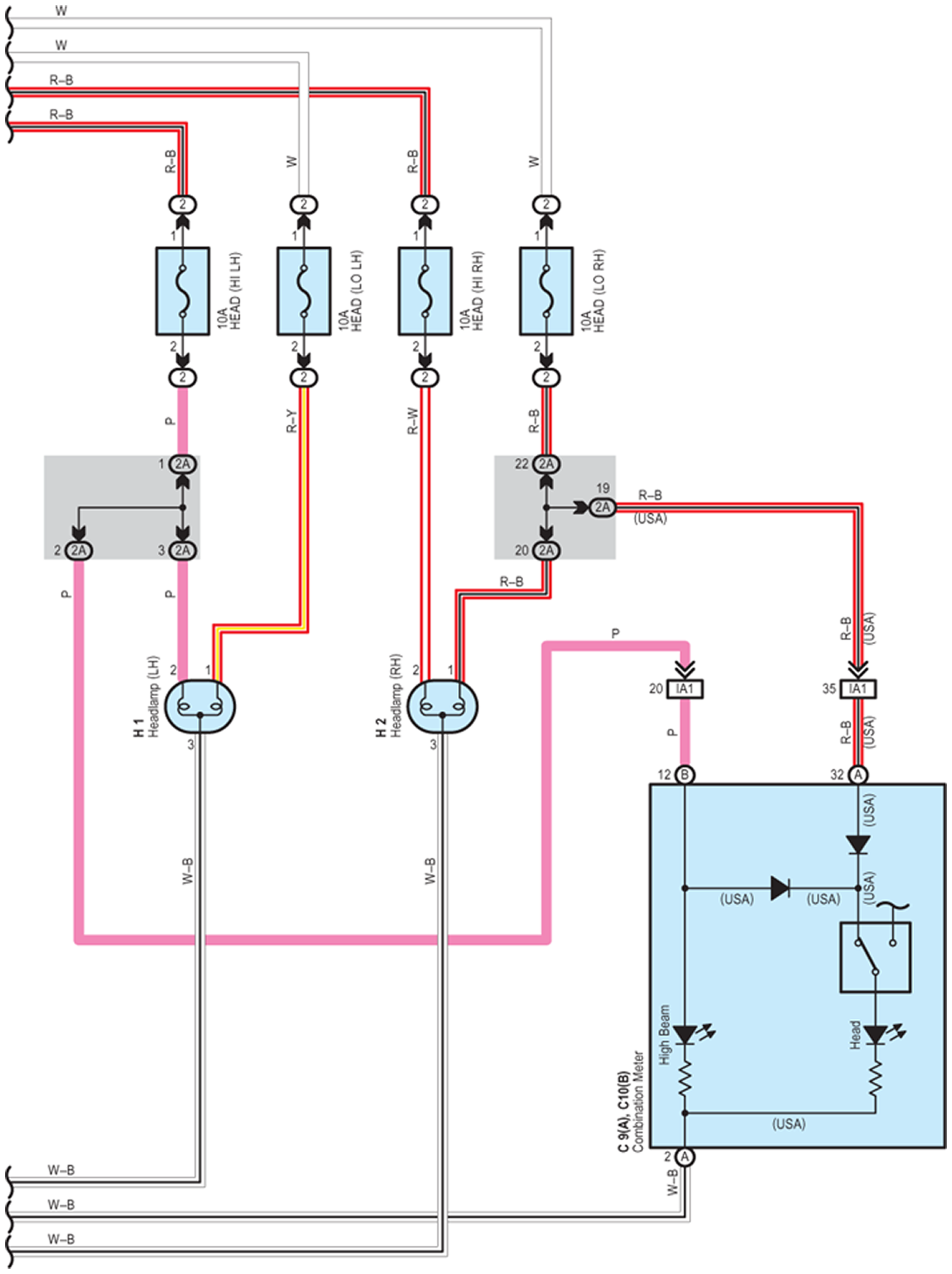

Fig 3: Headlight - Circuit Diagram (3 Of 3)
G07594816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
