Door Lock Control System: Notes

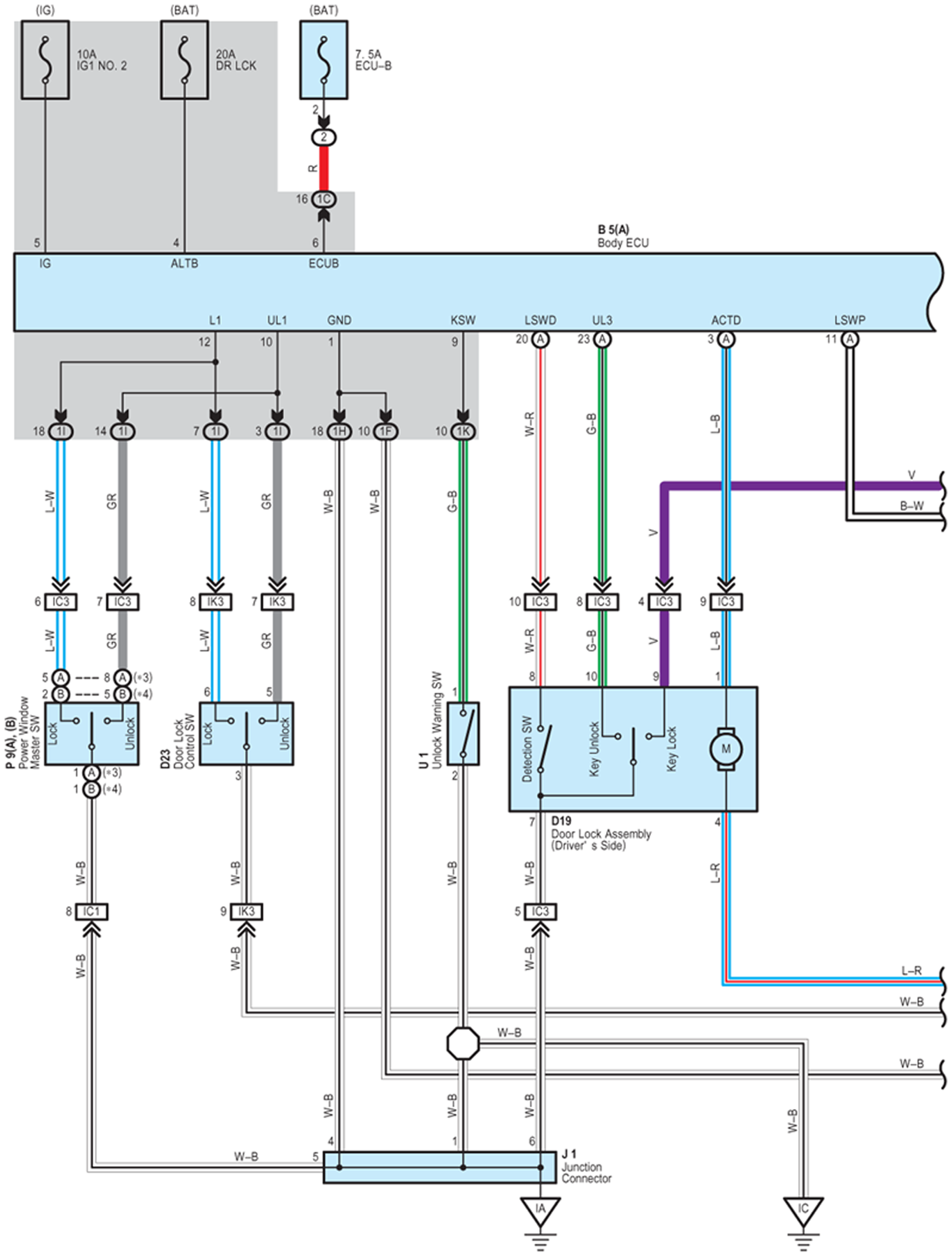

Fig 1: Door Lock Control - Circuit Diagram (1 Of 2)
G07594868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

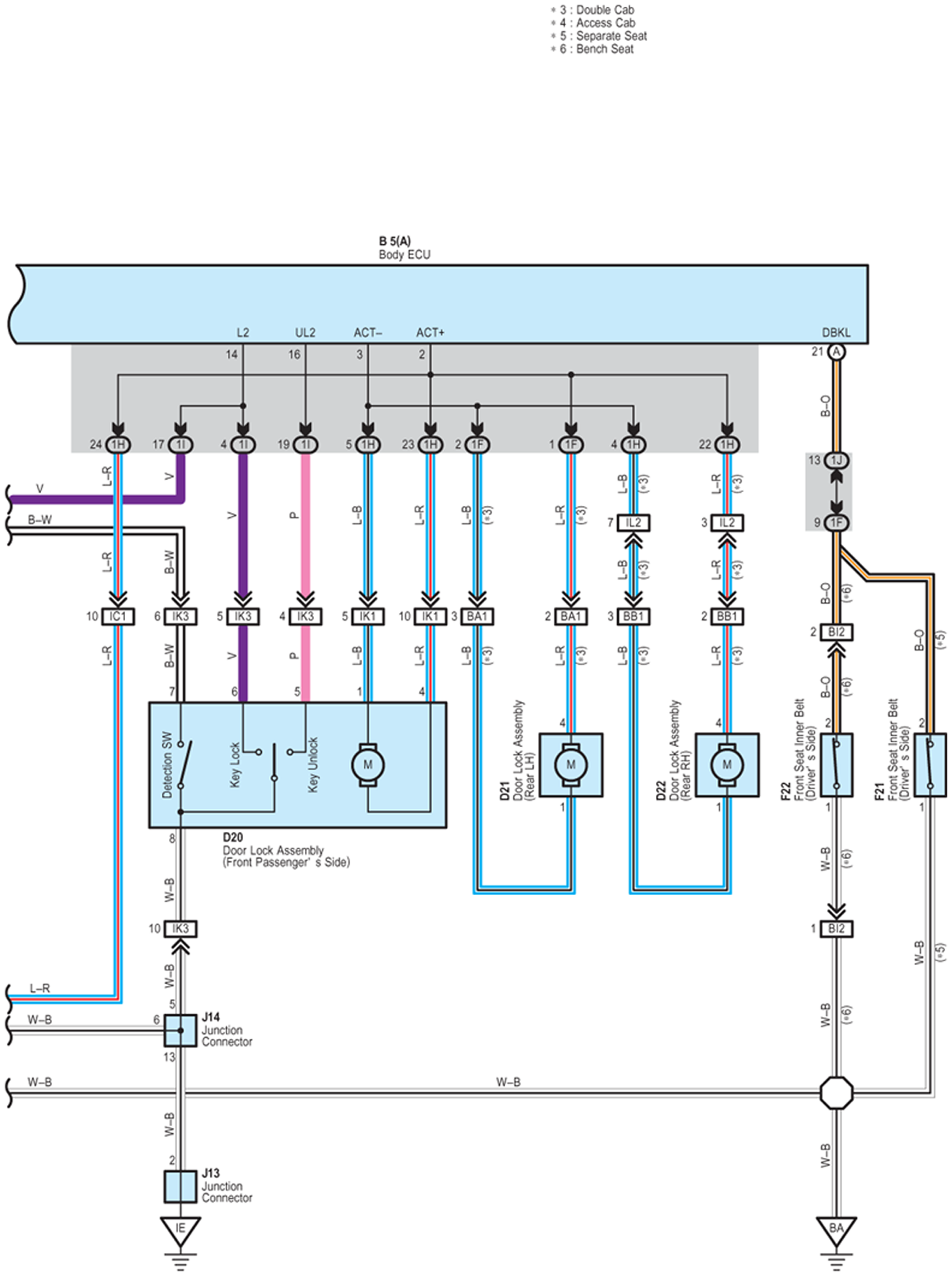

Fig 2: Door Lock Control - Circuit Diagram (2 Of 2)
G07594869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
