Home >> Toyota >> 2008 >> Tacoma PreRunner, 2D Pickup >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Vehicle Stability Control System >> Parts Location

Parts Location

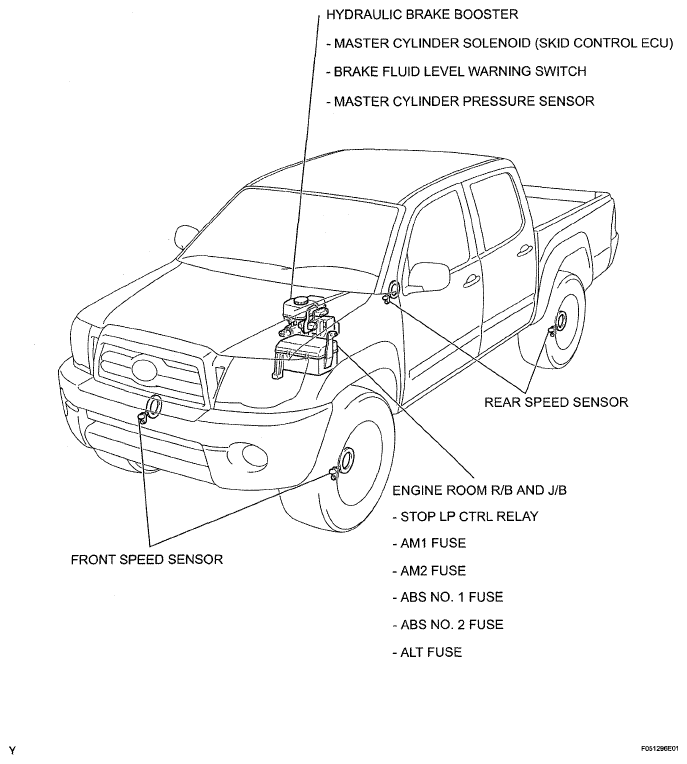

Fig 1: Identifying Vehicle Stability Control System Components Location (1 Of 2)
G05678074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

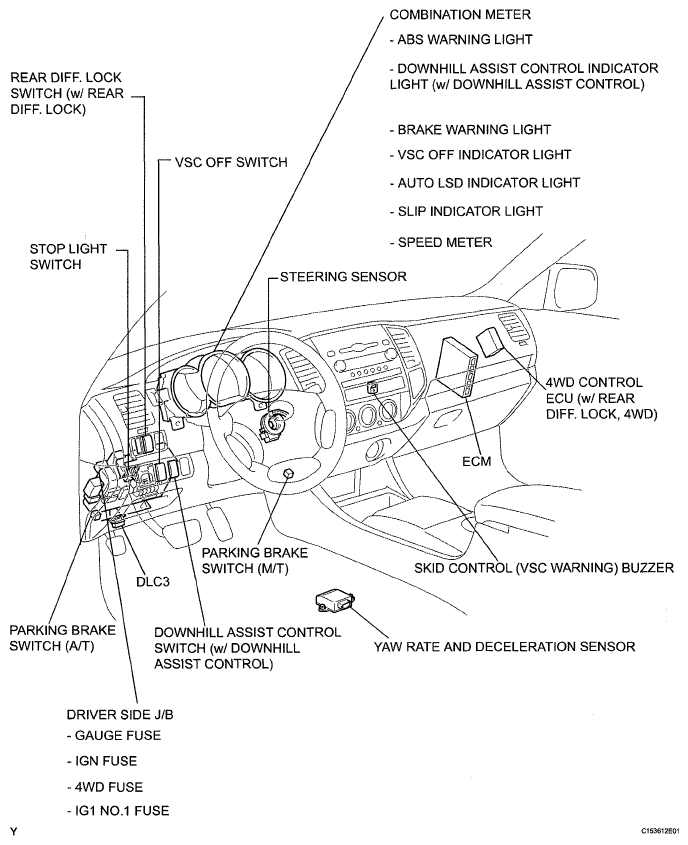

Fig 2: Identifying Vehicle Stability Control System Components Location (2 Of 2)
G05678075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
