DTC C1242/42 IG2 Power Source Circuit: Wiring Diagram

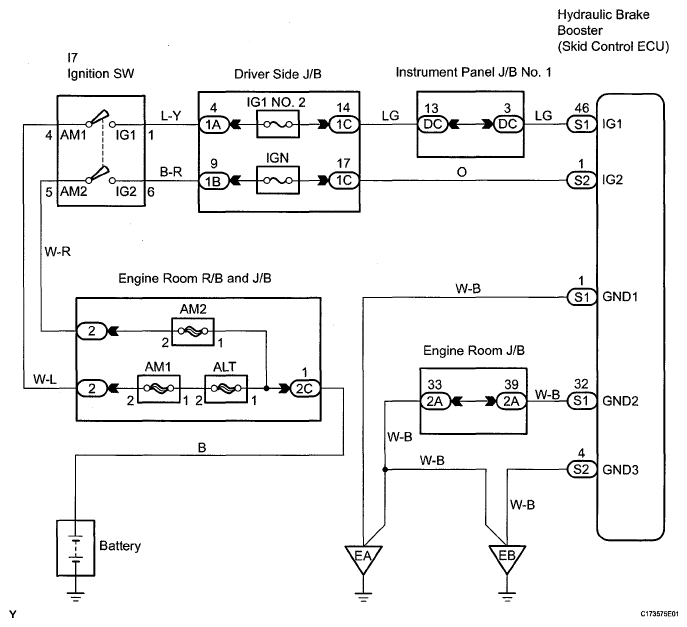

Fig 1: IG2 Power Source - Wiring Diagram

G05678144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
