Engine Oil Cooler: Components

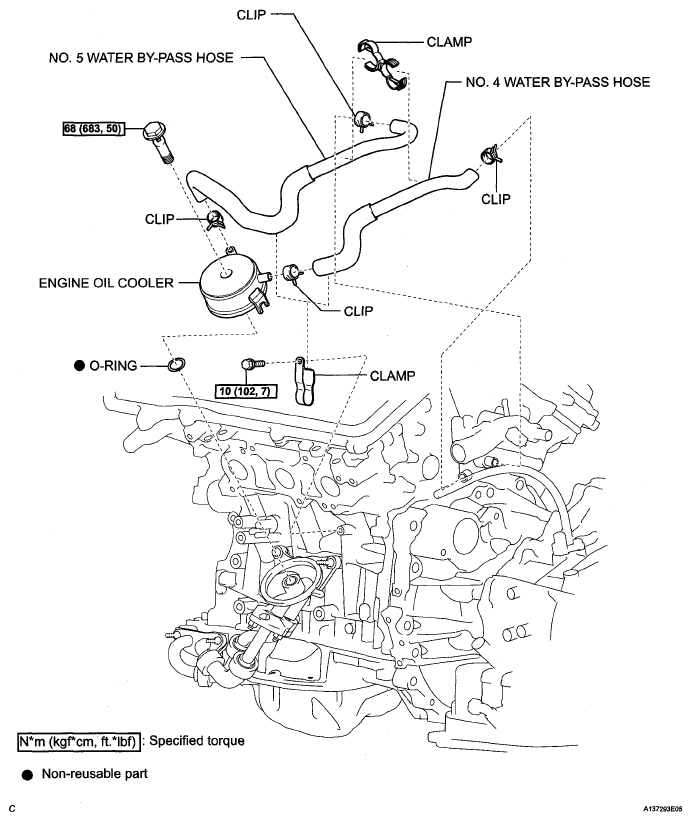

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
