System Diagram

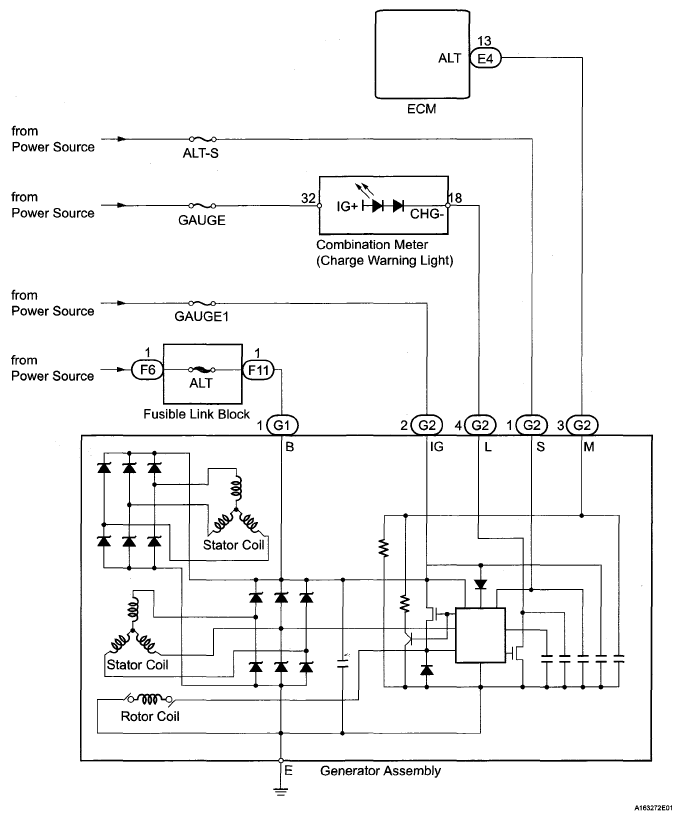

Fig 1: Charging System Diagram

G05140076

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
