Slide Door Closer: Notes

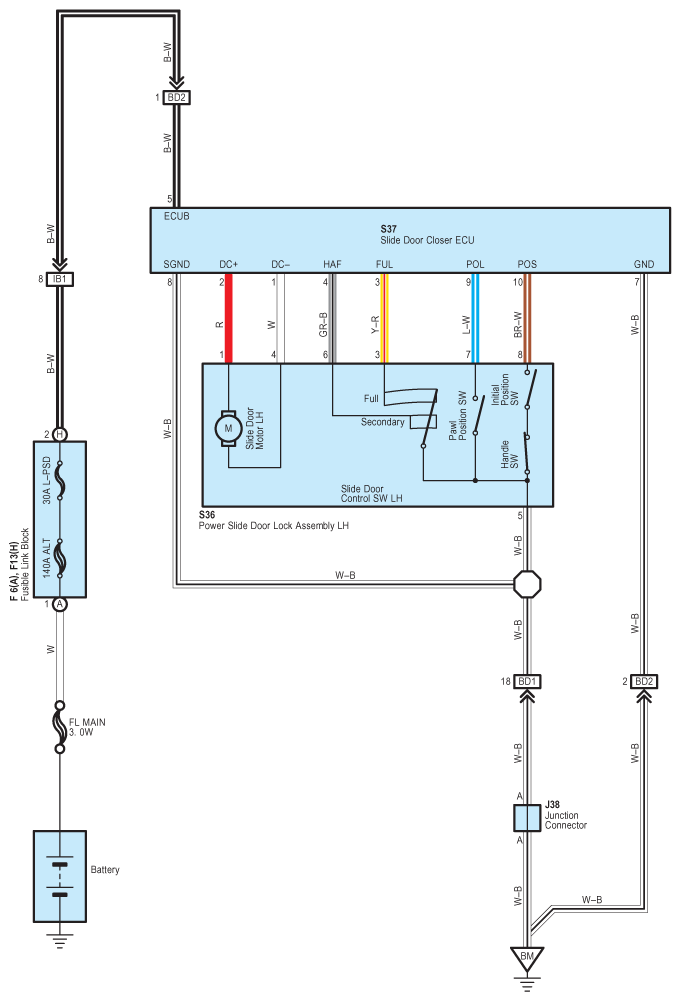

Fig 1: Slide Door Closer - Circuit Diagram

G07588406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
