Remote Control Mirror without Memory: Notes

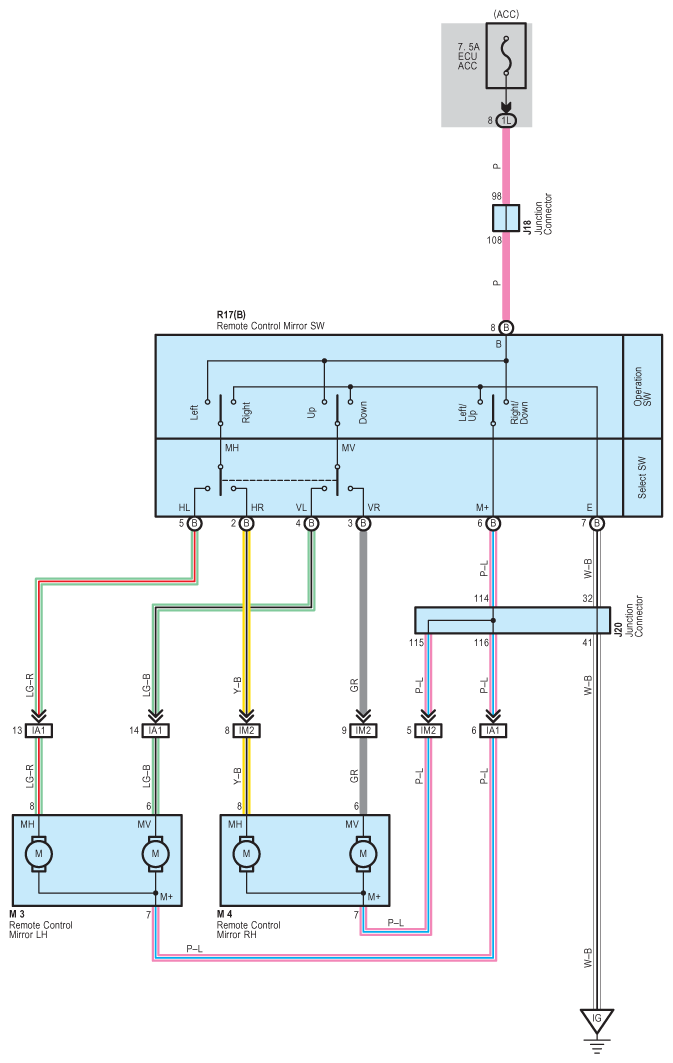

Fig 1: Remote Control Mirror Without Memory - Circuit Diagram

G07588478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
