Multiplex Communication System (BEAN Bus): Notes

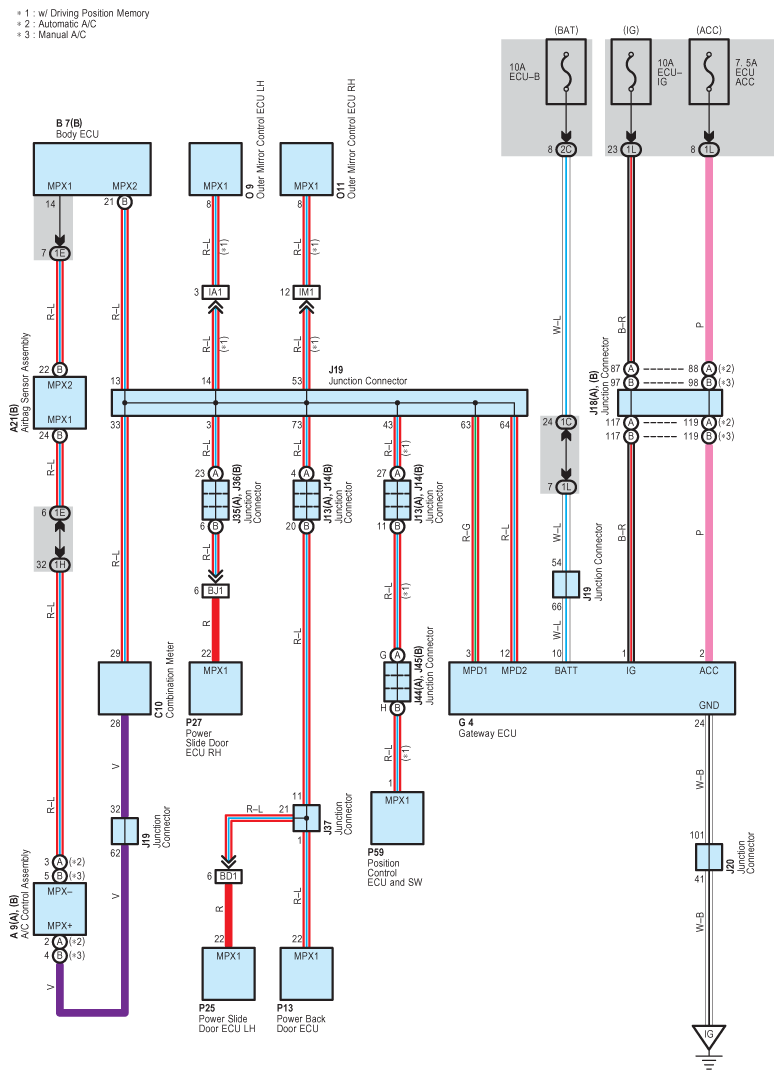

Fig 1: Multiplex Communication System (Bean Bus) - Circuit Diagram

G07588340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
