Back Door Closer: Notes

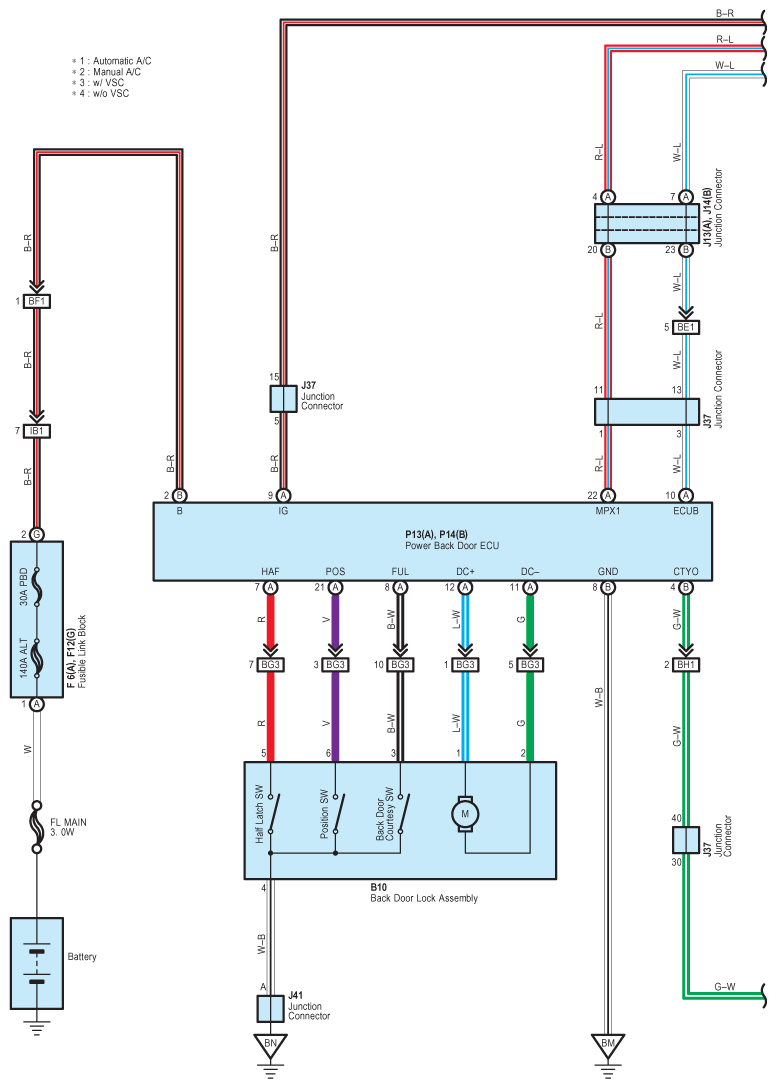

Fig 1: Back Door Closer - Circuit Diagram (1 Of 4)
G07588411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

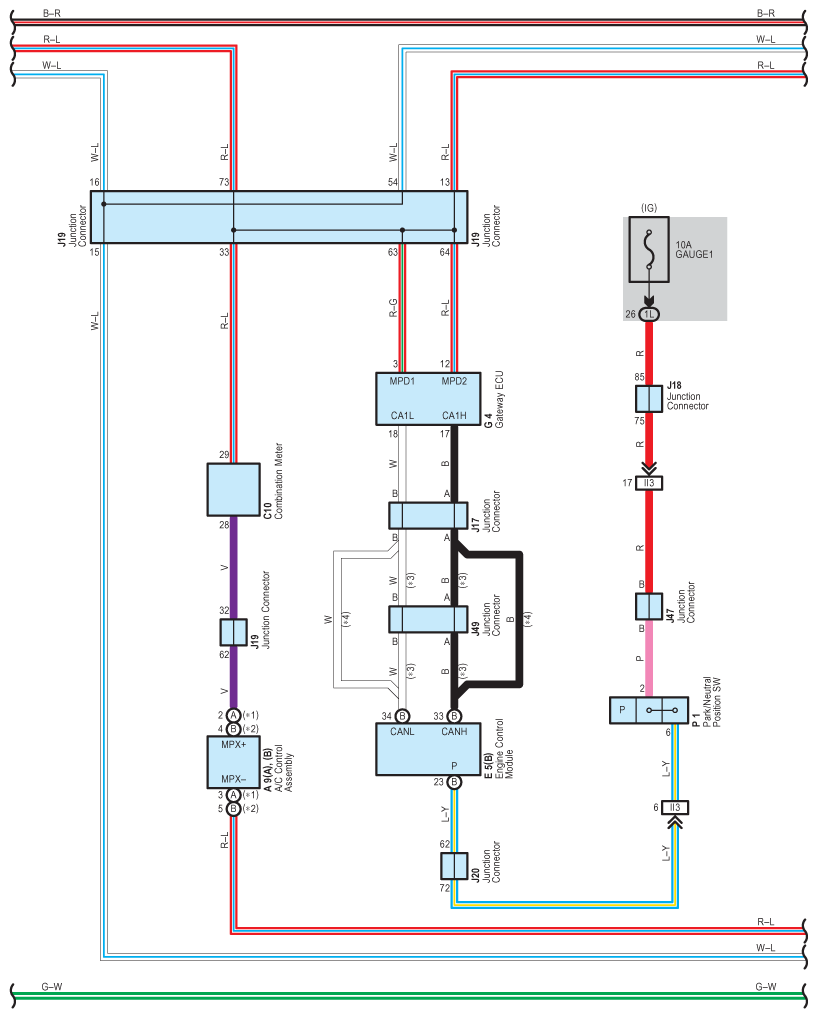

Fig 2: Back Door Closer - Circuit Diagram (2 Of 4)
G07588412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

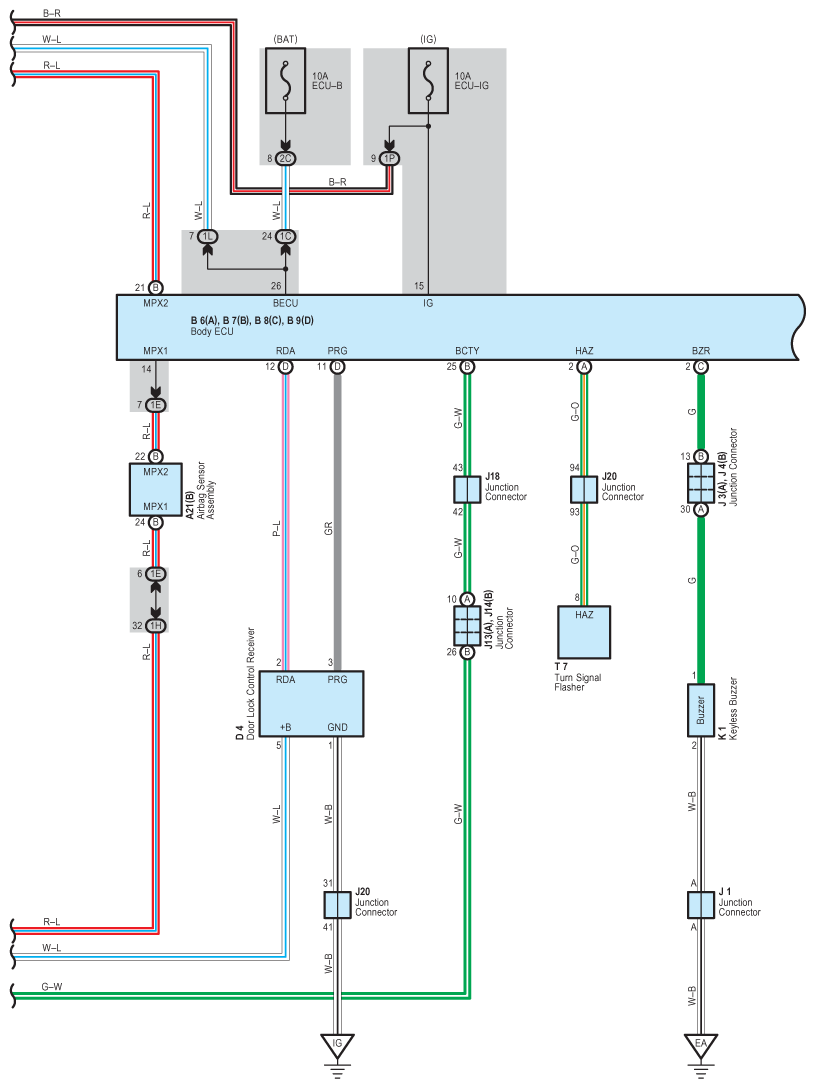

Fig 3: Back Door Closer - Circuit Diagram (3 Of 4)
G07588413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

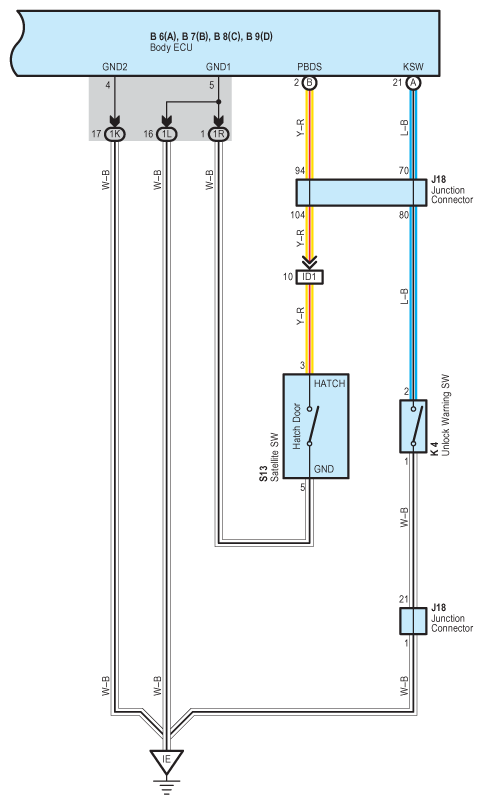

Fig 4: Back Door Closer - Circuit Diagram (4 Of 4)
G07588414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
