Automatic Light Control: Notes

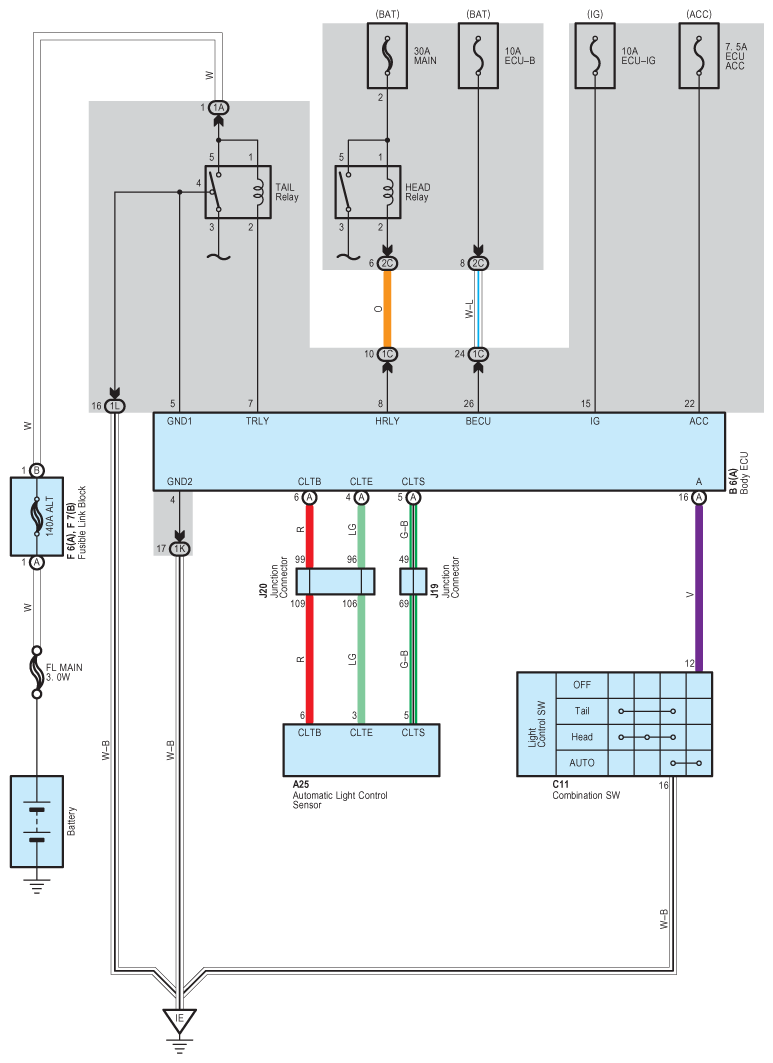

Fig 1: Automatic Light Control - Circuit Diagram

G07588363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
