Navigation System
>>
System Diagram
System Diagram

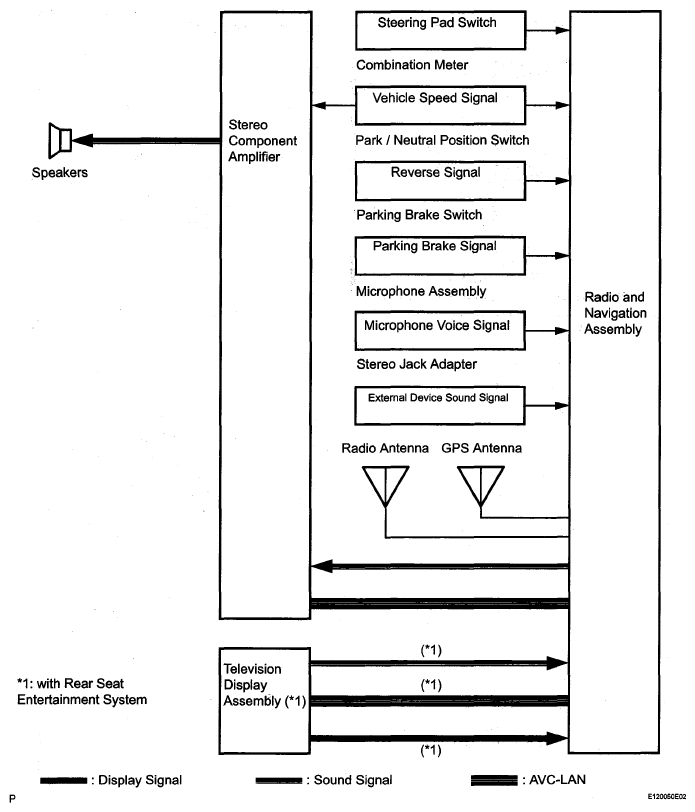

Fig 1: Identifying Navigation System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
