Automatic Transaxle Assembly: Installation

  1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Install the torque converter clutch to the automatic transaxle.
    2. Using vernier calipers and a straight edge, measure the dimension "A" between the transaxle fitting part of the engine and the converter fitting part of the drive plate (*1).
      Fig 1: Measuring Dimension A Between Transaxle Fitting Part Of Engine And Converter Fitting Part Of Drive Plate
      G04976028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using vernier calipers and a straight edge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A" (measured in step (*1)).

      Standard:

      A + 1 mm (0.03937 in.) or more

      NOTE: Remember to minus the thickness of the straight edge.
      Fig 2: Measuring Dimension B
      G04976034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    1. Install the automatic transaxle to the engine with the 10 bolts.

      Torque: Bolt A

      64 N*m (650 kgf*cm, 47 ft.*lbf)

      Bolt B

      46 N*m (470 kgf*cm, 34 ft.*lbf)

      Bolt C

      43 N*m (439 kgf*cm, 32 ft.*lbf)

    2. Fig 3: Locating Automatic Transaxle Bolts
      G05138671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.

      Adhesive:

      Part No. 08833-00070, THREE BOND 1324 or equivalent

    4. Install the 6 torque converter clutch mounting bolts.

      Torque: 41 N*m (413 kgf*cm, 30 ft.*lbf)

      NOTE: First install the black colored bolt, and then the remaining 5 bolts.
      Fig 4: Locating Torque Converter Clutch Mounting Bolts
      G05000656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the flywheel housing under cover to the automatic transaxle with the 2 bolt.

      Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

      Fig 5: Locating Flywheel Housing Under Cover Bolts
      G05246734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ENGINE MOUNTING BRACKET FRONT
    1. Install the engine mounting bracket front to the automatic transaxle with the 3 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

    2. Fig 6: Locating Engine Mounting Bracket Bolts (Front)
      G05246733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Coat a new O-ring with ATF, and install it to the transmission oil filler tube sub-assembly.
    2. Install the transmission oil filler tube sub-assembly and bolt to the automatic transaxle.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Fig 7: Locating Transmission Oil Filler Tube Bolt
      G05137147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 2 clamps to the oil filler tube.
    5. Install the ATF level gauge.
  5. INSTALL OIL COOLER INLET TUBE NO.1
    1. Temporarily install the oil cooler outlet tube No.1.
    2. Temporarily install the oil cooler inlet tube No.1.
    3. Install the oil cooler tube clamp and bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 8: Locating Oil Cooler Tube Clamp Bolt
      G05137148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST and a wrench, tighten the oil cooler inlet tube No.1.

      SST 09023-12701

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

    5. Fig 9: Locating Oil Cooler Inlet Tube
      G05137149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL OIL COOLER OUTLET TUBE NO.1
    1. Using SST and a wrench, tighten the oil cooler outlet tube No.1.

      SST 09023-12701

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  7. INSTALL TRANSMISSION CONTROL CABLE BRACKET NO.1
    1. Install the control cable bracket No.1 with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Fig 10: Locating Control Cable Bracket Bolts
      G05137132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT CONNECTORS
    1. Connect the transmission wire connector.
    2. Connect the park/neutral position switch connector.
    3. Connect the 2 speed sensor connectors.

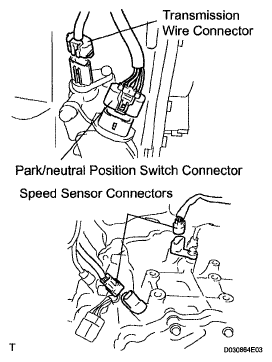

      Fig 11: Identifying Park/Neutral Position Switch Connector And Speed Sensor Connectors
      G05246748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STARTER ASSEMBLY
    1. Install the starter assembly with the 2 bolts (1).

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

    2. Connect the connector (2).
    3. Connect the starter wire with the nut (3).

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

      Fig 12: Locating Starter Assembly Bolts
      G05000672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT WIRE HARNESS
    1. Connect the wire harness with the bolt.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

      Fig 13: Locating Wire Harness Bolt
      G05246726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL WIRE HARNESS CLAMP
    1. Install the 2 clamps and 3 bolts.

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

    2. Connect the wire harnesses to the clamps.
      Fig 14: Locating Wire Harness Clamps Bolts
      G05137128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL TRANSMISSION CONTROL CABLE CLAMP
    1. Install the transmission control cable clamp with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Fig 15: Locating Transmission Control Cable Bracket Bolt
      G05246049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

    HINT:

    (See INSTALLATION )

  14. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    HINT:

    (See INSTALLATION )

  15. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    HINT:

    (See INSTALLATION )

  16. RESET MEMORY

    HINT:

    (See INITIALIZATION  )
