Rear Shock Absorber: Installation

1. Install the rear spring bumper No.1 LH to the shock absorber assembly LH.
   Fig 1: Installing Rear Spring Bumper LH To Shock Absorber Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Support the rear axle beam assembly with a jack.
3. Install the rear shock absorber assembly rear LH, cushion retainer and nut to the rear axle beam.
   Fig 2: Supporting Rear Axle Beam Assembly With Jack

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the rear shock absorber cushion No.1 and rear shock absorber LH cushion retainer.
5. Temporary tighten a new lock nut.
   Fig 3: Installing Rear Shock Absorber LH Cushion Retainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a 6 mm hexagon wrench to hold the piston rod, fully tighten the lock nut.

   Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

   Fig 4: Tightening Lock Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

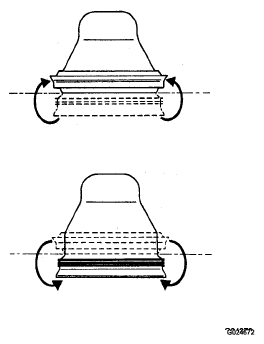

1. Install the shock absorber cap LH as shown in the illustration.
   Fig 5: Installing Shock Absorber Cap LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shock absorber head cover.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

Fig 6: Installing Shock Absorber Head Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Stabilize the shock absorber assembly rear LH.

   If it is impossible to tighten the nut at this position, support the rear axle beam with a jack and load the rear compartment with a mass of approximately 90 kg (198 lb).

   Length of shock absorber:

   2WD DRIVE TYPE:

   234 mm (9.22 in.)

   4WD DRIVE TYPE:

   258 mm (10.16 in.)

Fig 7: Identifying Length Of Shock Absorber
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fully tighten the nut.

   Torque: 115 N*m (1,173 kgf*cm, 85 ft.*lbf)

Fig 8: Tightening Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See ADJUSTMENT  )
