Rear Shock Absorber: Components

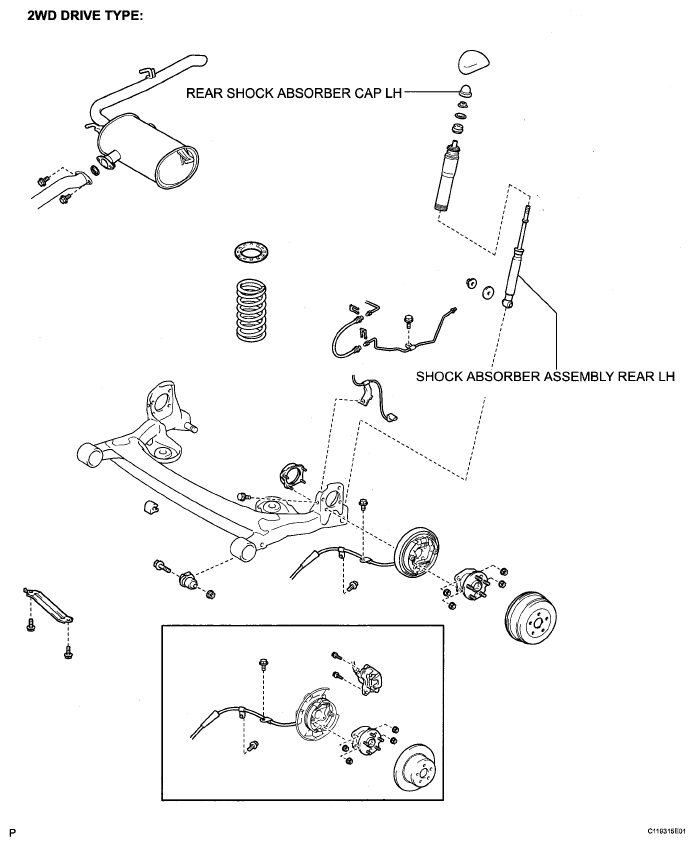

Fig 1: Identifying Rear Shock Absorber Components (2WD Drive Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

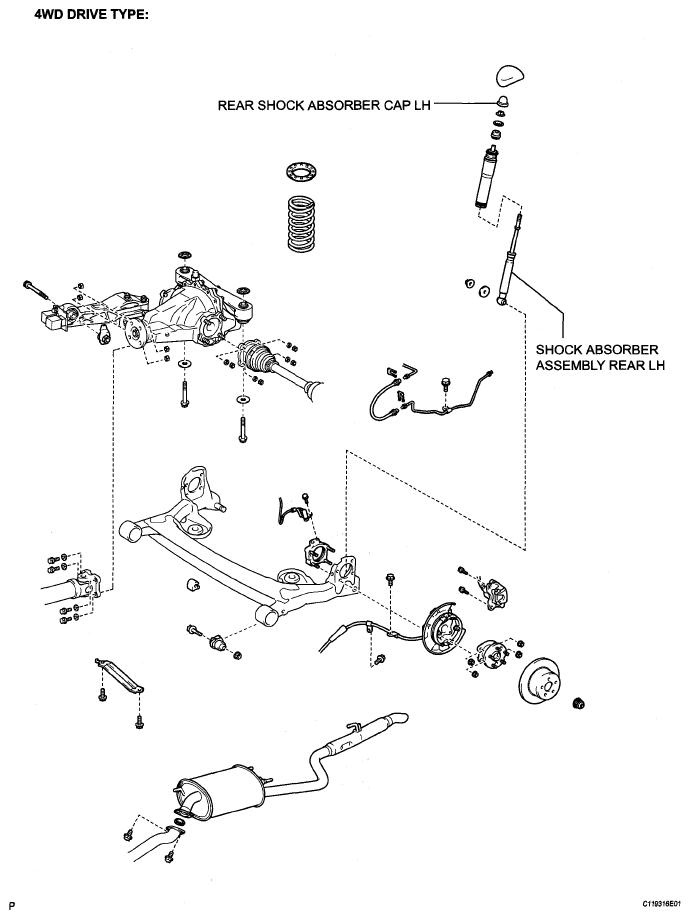

Fig 2: Identifying Rear Shock Absorber Components (4WD Drive Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
