Water Pump: Components

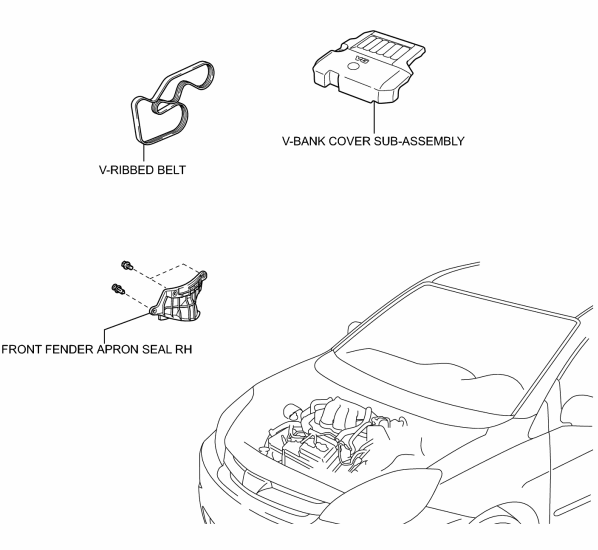

Fig 1: Identifying Water Pump Replacement Components (1 Of 3)
G00501233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

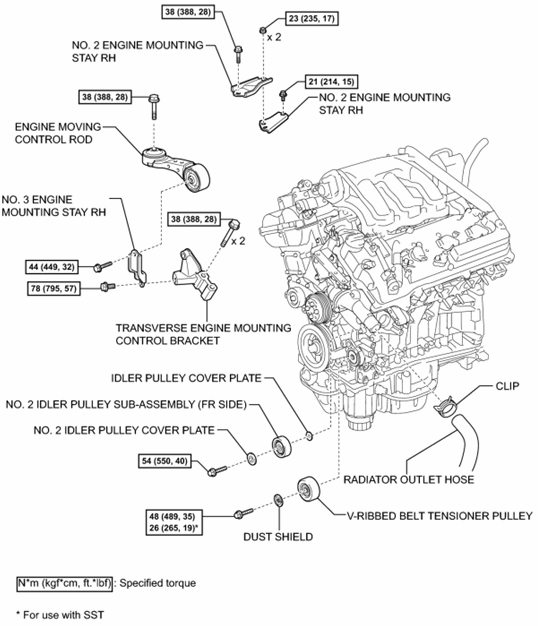

Fig 2: Identifying Water Pump Replacement Components With Torque Specifications (2 Of 3)
G00501234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

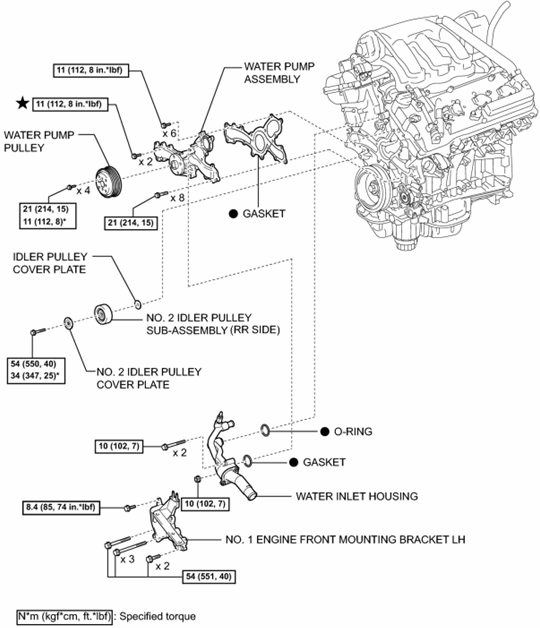

Fig 3: Identifying Water Pump Replacement Components With Torque Specifications (3 Of 3)
G00501235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
