Instrument Panel Safety Pad: Components

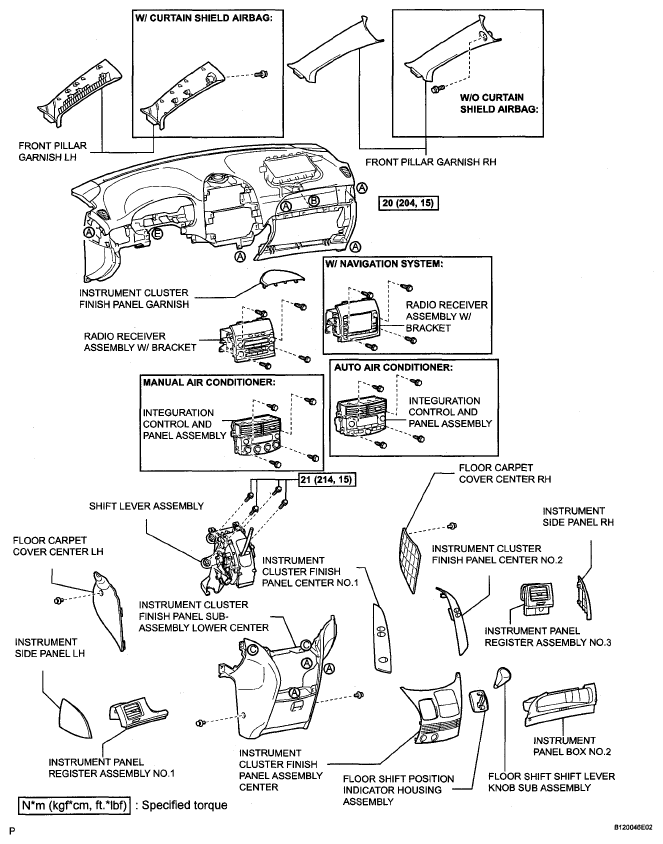

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

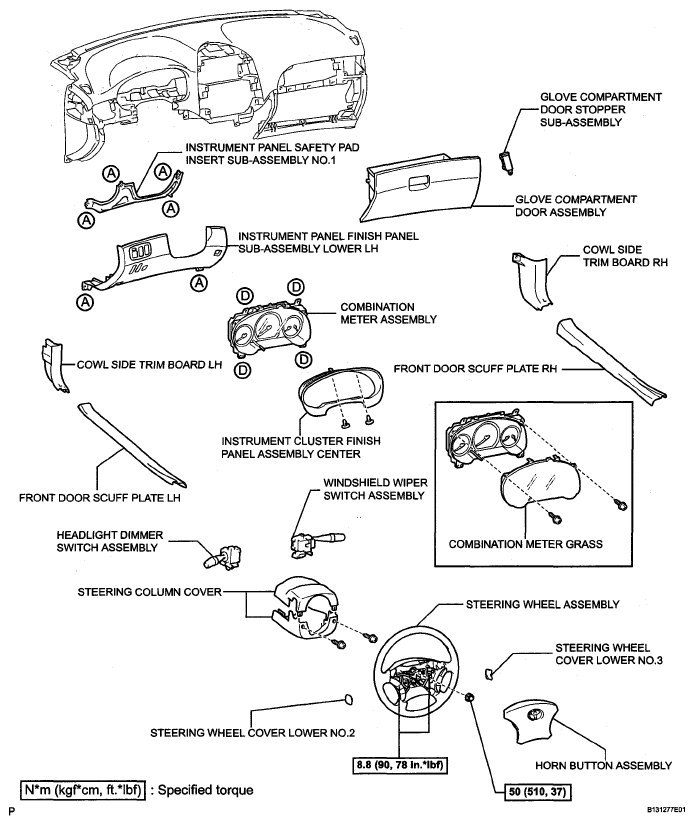

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

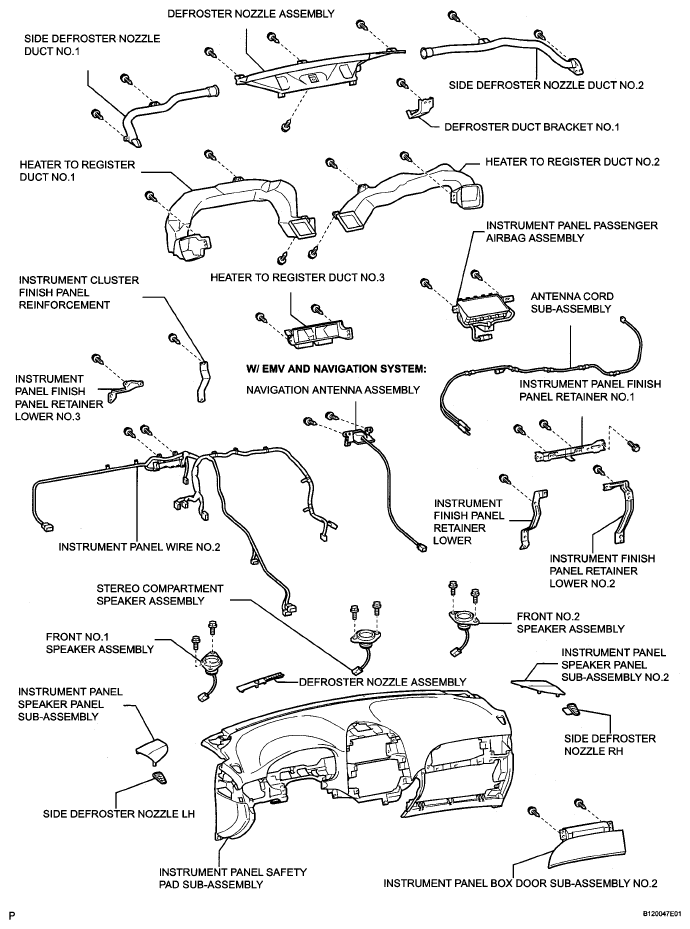

Fig 3: Identifying Instrument Panel Safety Pad Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
