Inspection Procedure

NOTE: When replacing the brake actuator assembly, perform zero point calibration (See CALIBRATION ).

CHECK CAN COMMUNICATION SYSTEM

Check if the CAN communication system DTC is output (See DTC CHECK / CLEAR ).

Result

RESULT CHART

Result	Proceed to
CAN communication system DTC is not output	A
CAN communication system DTC is output	B

B: INSPECT CAN COMMUNICATION SYSTEM

A: Go to Next Step

INSPECT DLC3

Turn the ignition switch to the ON position.

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
D1-13(TC)-D1-4(CG)	Ignition switch ON	10 to 14 V

Fig 1: Identifying CG And TC Connector Terminals Of DLC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result

RESULT CHART

Result	Proceed to
NG	A
OK	B

B: Go to step 5

A: Go to Next Step

CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM)

Turn the ignition switch off.
Disconnect the ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
D1-13(TC)-E4-23(TC)	Always	Below 1 Ω
D1-13(TC)-Body ground	Always	10 kΩ or higher

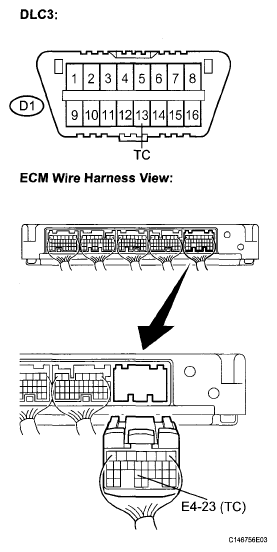

Fig 2: Identifying DLC Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
D1-4(CG)-Body ground	Always	Below 1 Ω

Fig 3: Identifying CG Connector Terminals Of DLC

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

CHECK ECM (TC of DLC3 INPUT)

Reconnect the ECM connector.
Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
Turn the ignition switch to the ON position.

Check that the check engine warning light is blinking.

Fig 4: Identifying CG And TC Connector Terminals Of DLC

Result

RESULT CHART

Result	Proceed to
Check engine warning light is blinking	A
Check engine warning light is not blinking	B

HINT:

If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE , refer back to the table and proceed to the next step before replacing the part.

B: REPAIR OR REPLACE WIRE HARNESS OR ECM (TC of ECM CIRCUIT)

A: REPLACE BRAKE ACTUATOR ASSEMBLY
