Transponder Key Ecu: Components

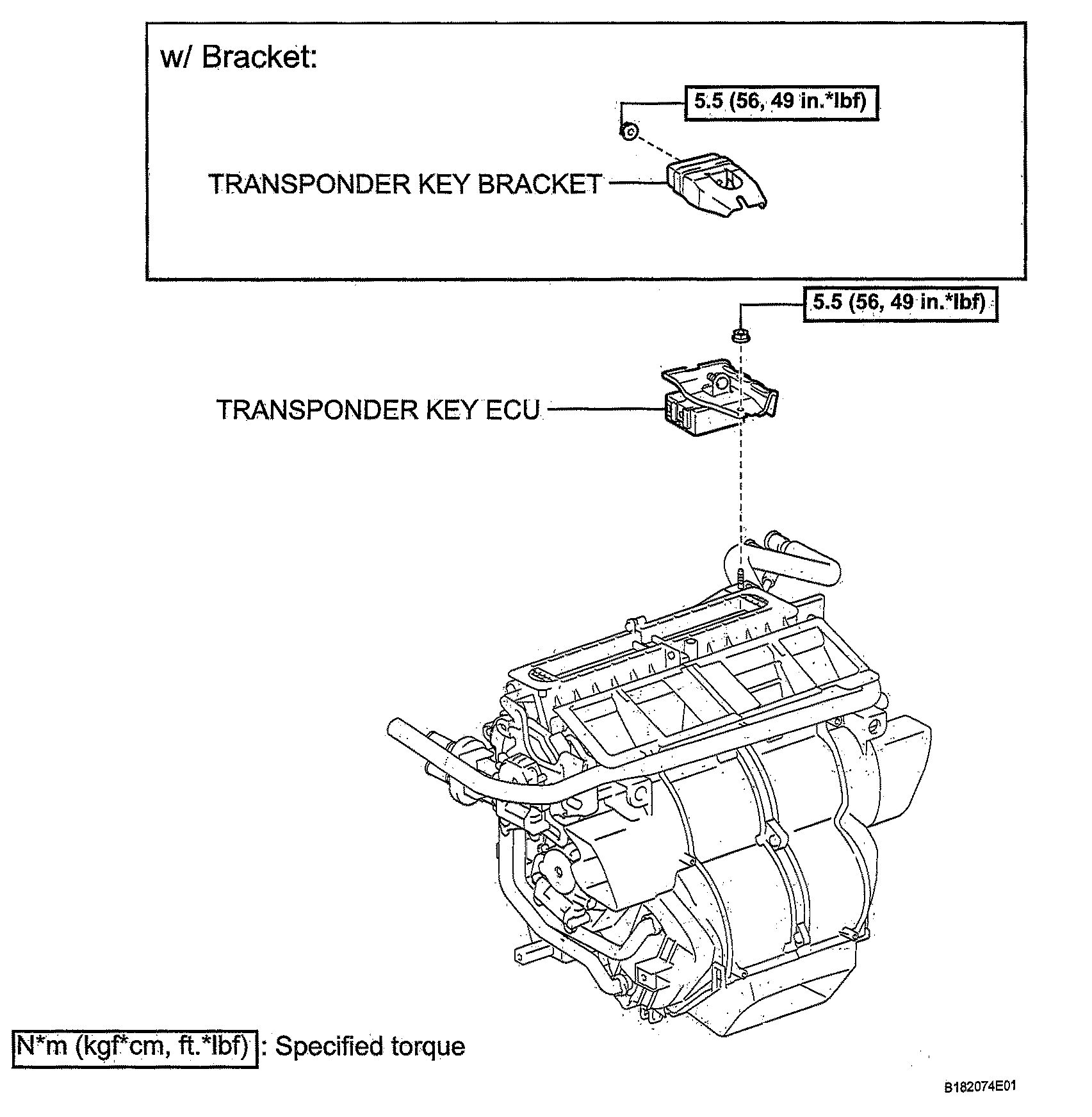

Fig 1: Transponder Key ECU Components With Torque Specifications

G00461035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
