Television Camera: Components

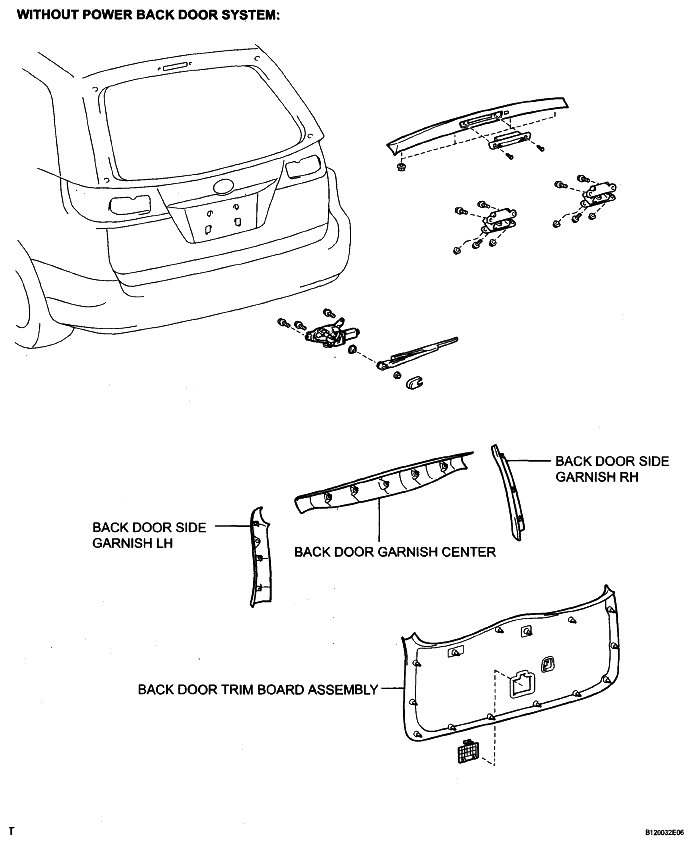

Fig 1: Identifying Television Camera Components (W/O Power Back Door System) (1 Of 2)
G05141519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

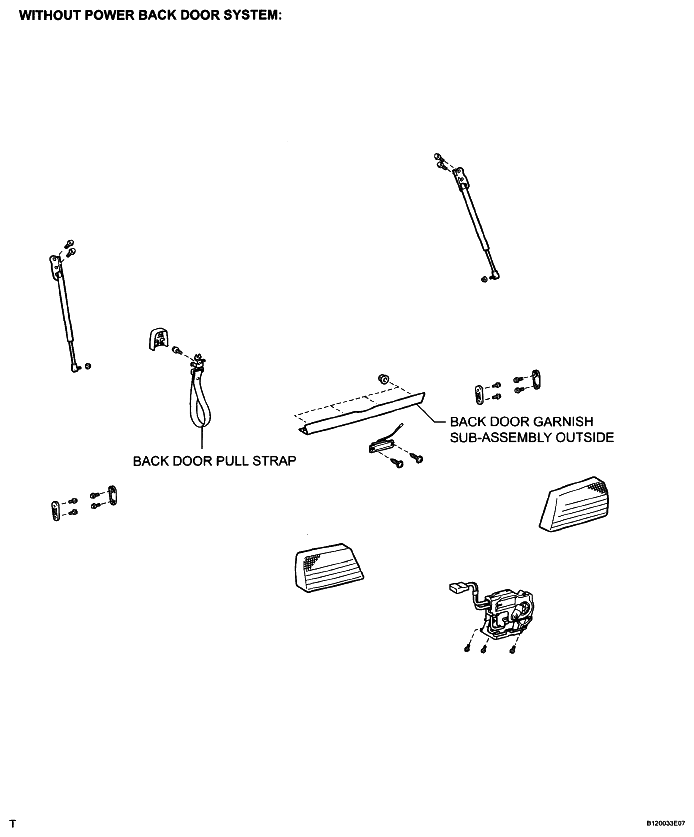

Fig 2: Identifying Television Camera Components (W/O Power Back Door System) (2 Of 2)
G05141520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

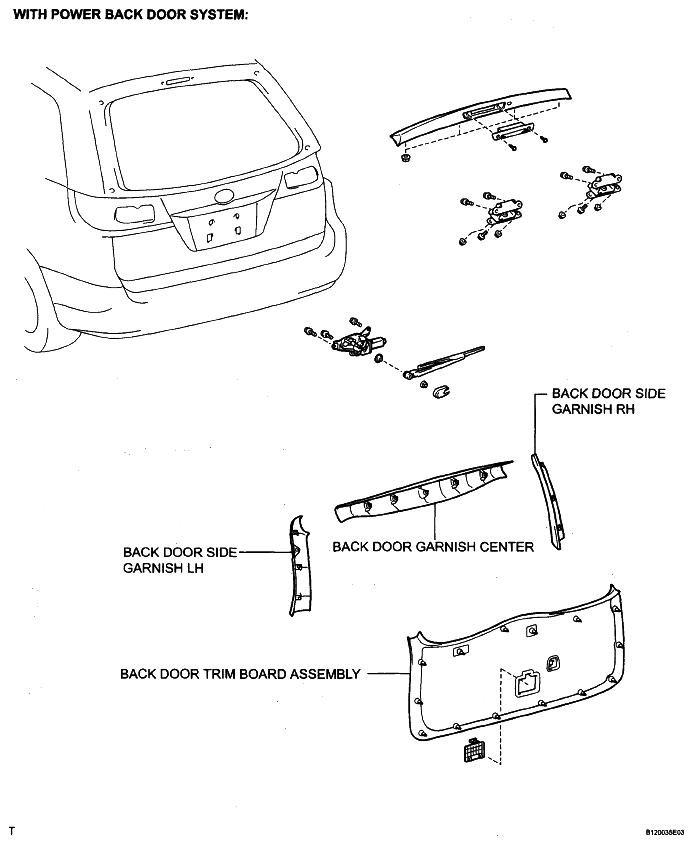

Fig 3: Identifying Television Camera Components (W/ Power Back Door System) (1 Of 3)
G05141521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

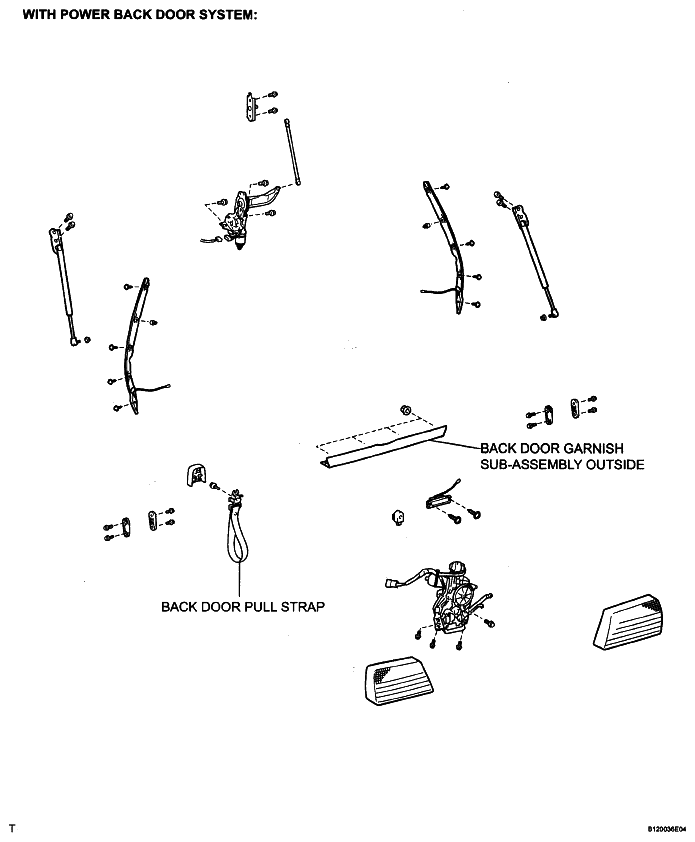

Fig 4: Identifying Television Camera Components (W/ Power Back Door System) (2 Of 3)
G05141522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

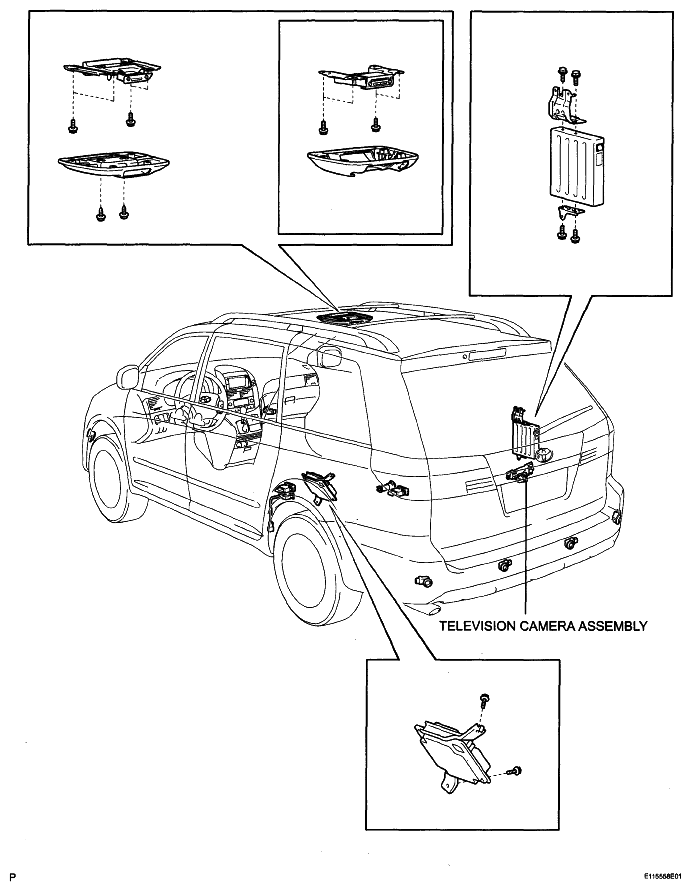

Fig 5: Identifying Television Camera Components (W/ Power Back Door System) (3 Of 3)
G05141523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
