No. 1 Ultrasonic Sensor: Components

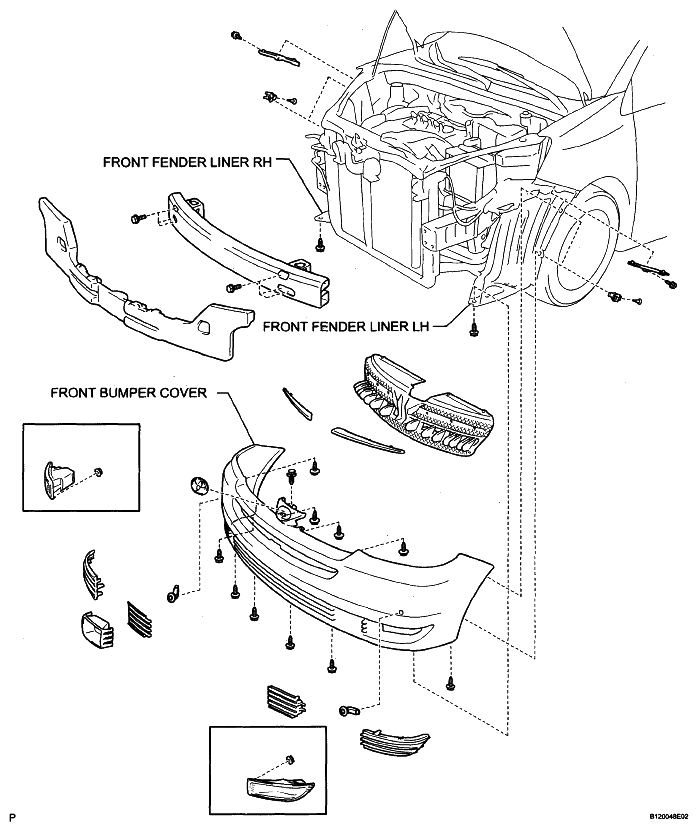

Fig 1: Identifying No. 1 Ultrasonic Sensor Components (1 Of 3)
G05141508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

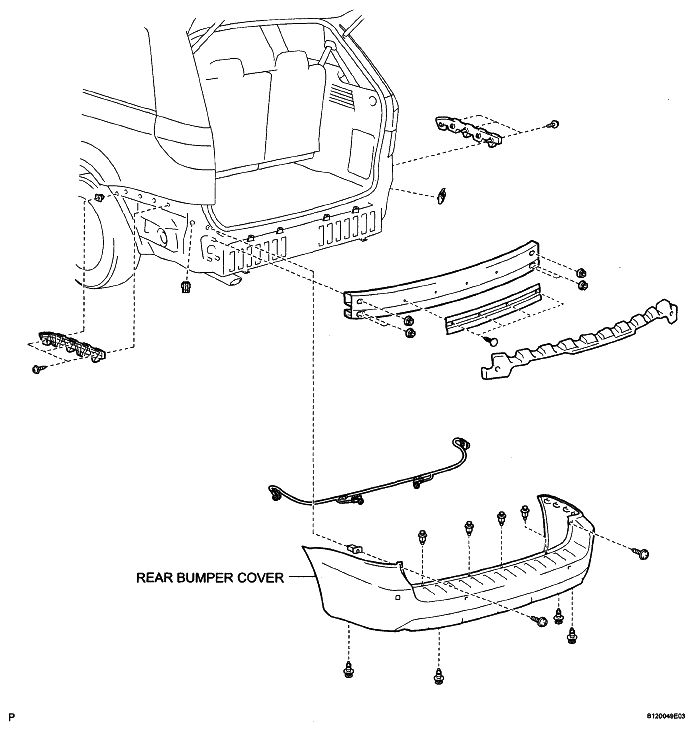

Fig 2: Identifying No. 1 Ultrasonic Sensor Components (2 Of 3)
G05141509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

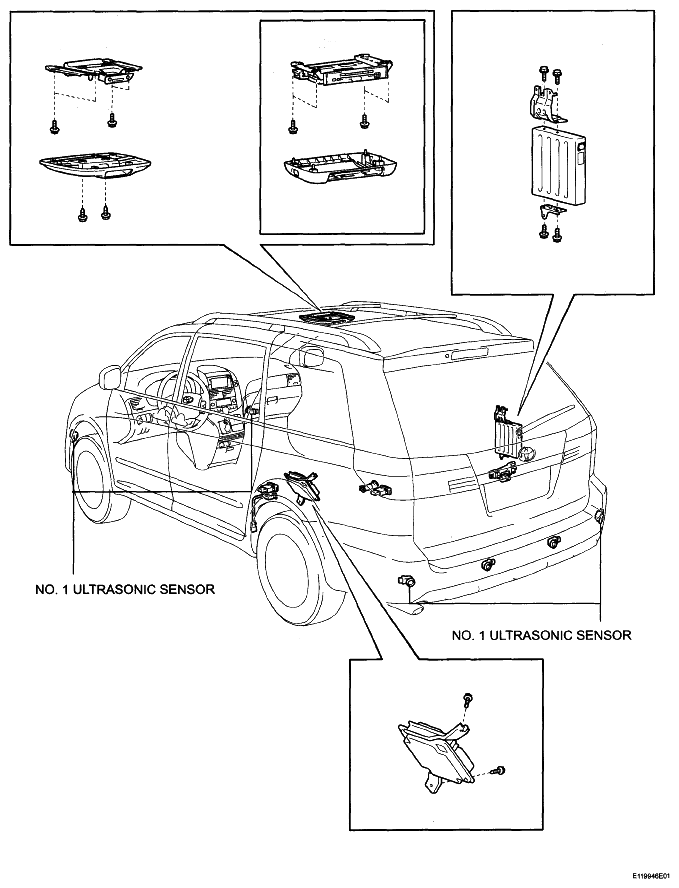

Fig 3: Identifying No. 1 Ultrasonic Sensor Components (3 Of 3)
G05141510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
