Operation Check

  1. DETECTION RANGE MEASUREMENT AND INDICATOR CHECK
    1. Turn the IG switch ON.
    2. Move the shift lever to the R position (when the back sonar and rear clearance sonar is checked).
    3. With front clearance sonar:

      Move the shift lever to the N position (when the front clearance sonar is checked).

      NOTE: Apply the parking brake securely so that the vehicle does not move.
    4. Turn the clearance sonar main switch ON.
    5. Move a ø 60 mm (2.36 in.) pole around the sensor to measure the detection range of the sensor.

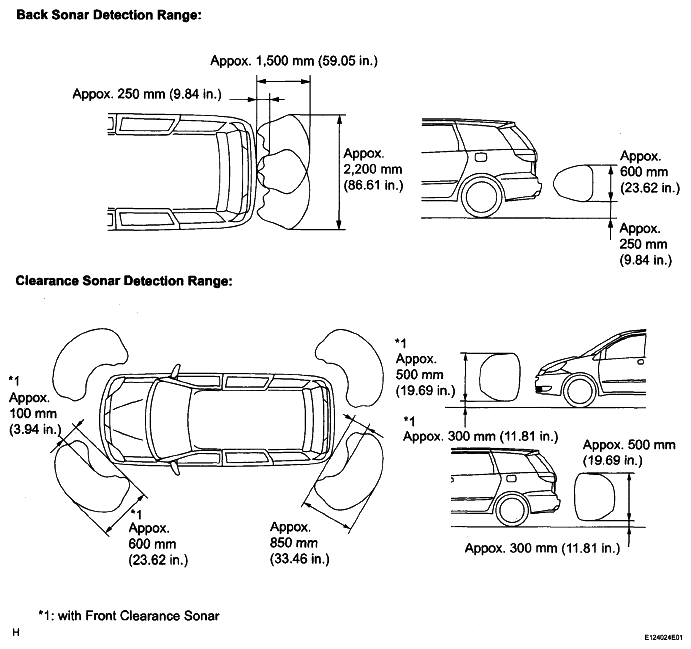

      Fig 1: Identifying Back Sonar Detection And Clearance Sonar Detection Ranges
      G05141527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The measured detection range is for the ø 60 mm (2.36 in.) pole. The detection range for walls and other obstacle is different.
    6. Check the indicator and the buzzer sounding condition when the back sonar sensor detects an obstacle.

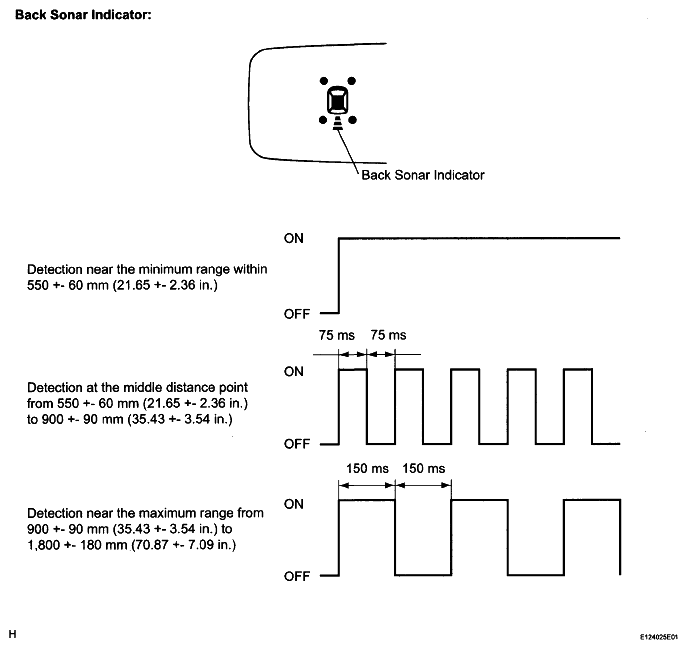

      Fig 2: Back Sonar Indicator Reference Chart
      G05141528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Operation condition

      OPERATION CONDITION

      Ignition switch Clearance sonar main switch Shift position
      ON ON R position

      HINT:

      Since sound waves are used for the detection range measurement, the detection range may vary a little due to the outside air temperature.

    7. Check the indicator and the buzzer sounding condition when the rear clearance sonar sensor detects an obstacle.

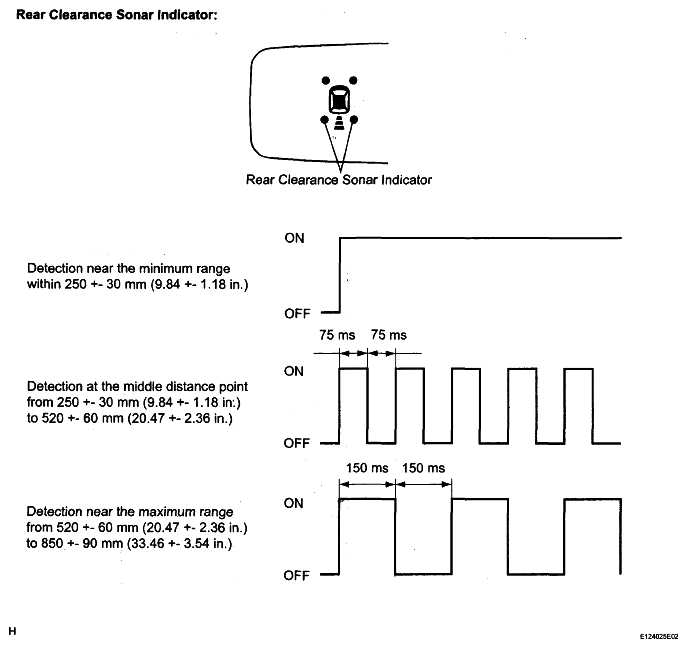

      Fig 3: Identifying Rear Clearance Sonar Indicator
      G05141529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Operation condition

      OPERATION CONDITION

      Ignition switch Clearance sonar main switch Shift position
      ON ON R position

      HINT:

      Since sound waves are used for the detection range measurement, the detection range may vary a little due to the outside air temperature.

    8. With front clearance sonar:

      Check the indicator and the buzzer sounding condition when the front clearance sonar sensor detects an obstacle.

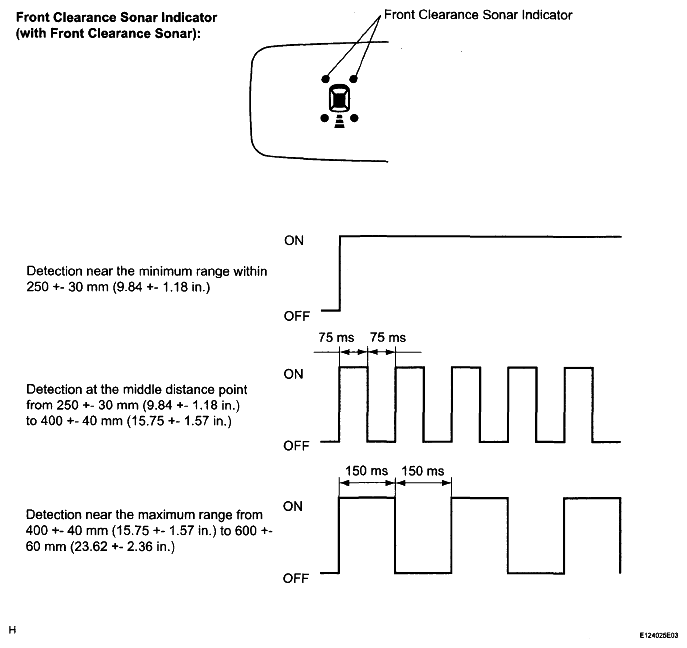

      Fig 4: Identifying Front Clearance Sonar Indicator (With Front Clearance Sonar)
      G05141530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Operation condition

      OPERATION CONDITION

      Ignition switch Clearance sonar main switch Shift position Vehicle speed
      ON ON Except P position 10 km/h (6 mph) or less

      HINT:

      Since sound waves are used for the detection range measurement, the detection ranges may vary a little due to the outside air temperature.

  2. CHECK INITIAL CHECK FUNCTION
    1. Check the initial check function for the LED and buzzer.
      Fig 5: Identifying LED And Buzzer Blinking Pattern
      G05141531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Turn the ignition switch and clearance main switch ON. The LED are buzzer will operate for about 1 second +- 0.3 seconds, regardless of shift lever position or vehicle speed. The system will then begin normal detection operation.

      If the LED or buzzer is faulty, the relevant LED and buzzer operate as shown in the illustration below.

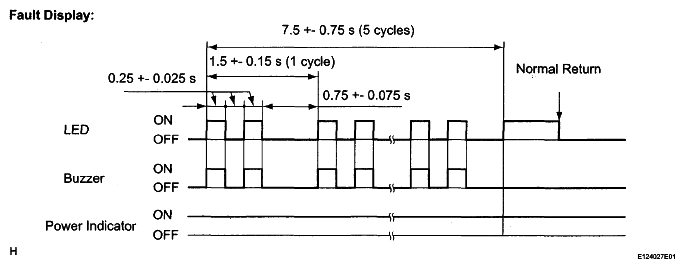

      Fig 6: Identifying Fault Display Blinking Pattern
      G05141532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • If each LED, power indicator and buzzer are not turned on continuously when power is turned on, the wire is broken.
      • After the system returns to be normal, it conducts normal operation.
    2. Check the initial check function for the sensor.

      For vehicles with 4 sensors:

      • Approximately 0.4 seconds after the ignition switch has been turned to the ON position, and the clearance sonar main switch has been turned on, all sensors will be checked by the system.
      • The sensor check operation will continue for 5 seconds +/-1 second. Even if one or more sensors are anomalous, the sensor check operation will be halted after 5 seconds +/-1 second have elapsed.

      For vehicles with 6 sensors:

      • Approximately 0.4 seconds after the ignition switch has been turned to the ON position, and the clearance sonar main switch has been turned on, all sensors will be checked by the system.
        Fig 7: Identifying Sensor Blinking Pattern
        G05141533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • After 1 second +/- 0.3 seconds have elapsed, the check operation for all of the sensors will stop when a vehicle speed of over 10 km/h is detected.
      • When the vehicle has been shifted from the P position, the system will change to obstacle detecting operation according to the shift position.
      • If there are no changes in the conditions, such as those listed above (speed or shifter position), the sensor check operation will be halted after 5 seconds +/-1 second have elapsed. If one or more sensors are anomalous, check operation for all of the sensors will continue (sensors will continue transmitting).

      If the sensor is found to have an anomaly due to an open circuit or freezing for approximately 5 seconds or more, indications as shown in the following illustration appear.

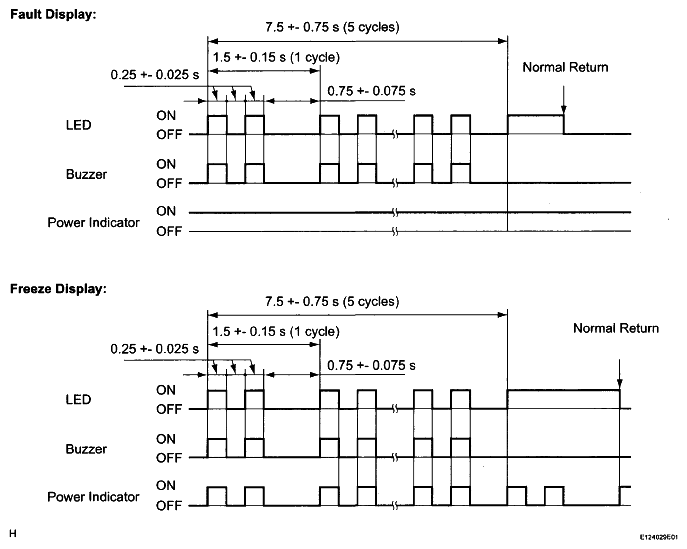

      Fig 8: Identifying Fault And Freeze Display Blinking Pattern
      G05141534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • After the system returns to normal, it conducts normal operation.
      • If one of the back sonar sensors is faulty, the other sensors will not be used to detect obstacles.
