Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU - AIR CONDITIONER AMPLIFIER)
    1. Disconnect the connectors from the clearance warning ECU C9 and air conditioner amplifier connector A10 or A11.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      +B - SK Always Below 1 Ω
      +B - Body ground Always 10 kΩ or higher

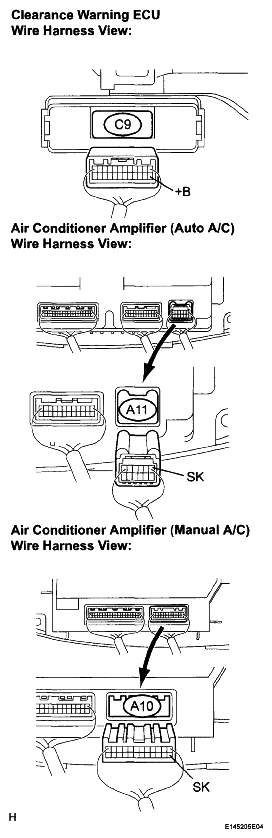

    3. Fig 1: Checking Harness And Connector (Clearance Warning ECU - Air Conditioner Amplifier)
      G05141578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      E - Body ground Always Below 1 Ω
    2. Fig 2: Checking Harness And Connector (Clearance Warning ECU - Body Ground)
      G05141579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. INSPECT CLEARANCE WARNING ECU
    1. Disconnect the clearance warning ECU connector.
    2. Turn the ignition switch ON.
    3. Turn the clearance sonar main switch ON.
    4. Measure the voltage between terminals +B and E of the ECU.

      Standard voltage: 10 to 14 V

      Result

      RESULT REFERENCE

      Result Proceed to
      OK A
      NG B (Auto A/C)
      NG C (Manual A/C)
    5. Fig 3: Inspecting Clearance Warning ECU
      G05141580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: Go to step 4

    C:  Go to step  5

    A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  4. INSPECT PRINTED WIRE INTEGRATION BOARD SUB-ASSEMBLY
    1. Check that the malfunction disappears when a known good printed wire integration board sub-assembly is installed.

      OK: Malfunction disappears.

    NG: REPLACE AIR CONDITIONER AMPLIFIER

    OK: REPLACE PRINTED WIRE INTEGRATION BOARD SUB-ASSEMBLY

  5. INSPECT INTEGRATION PANEL SUB-ASSEMBLY
    1. Check that the malfunction disappears when a known good integration panel sub-assembly is installed.

      OK: Malfunction disappears.

    NG: REPLACE AIR CONDITIONER AMPLIFIER

    OK: REPLACE INTEGRATION PANEL SUB-ASSEMBLY
