Navigation Antenna: Installation

  1. INSTALL NAVIGATION ANTENNA ASSEMBLY
  2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Using a torque wrench, install the bolt < B >.

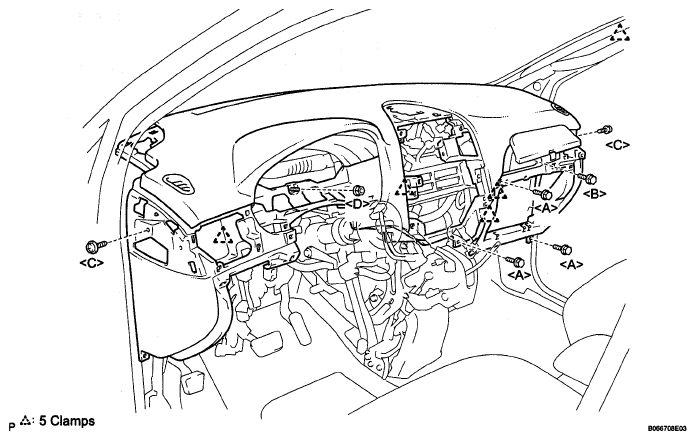

      Fig 1: Identifying Instrument Panel Sub-Assembly W/ Passenger Airbag Assembly Bolts And Claws
      G05141490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

  3. INSTALL SHIFT LEVER ASSEMBLY
    1. Using a torque wrench, install the 4 bolts.

      Torque: 21 N*m (214 kgf*cm, 12.6 ft.*lbf)

      Fig 2: Locating Shift Lever Assembly Bolts
      G05141487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL DEFROSTER NOZZLE OPENING PLATE NO. 1
  5. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
  6. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
  7. INSTALL INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY NO. 2
  8. INSTALL INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
  9. INSTALL FRONT PILLAR GARNISH RH
  10. INSTALL FRONT PILLAR GARNISH LH
  11. INSTALL INTEGRATION CONTROL & PANEL ASSEMBLY
  12. INSTALL NAVIGATION RECEIVER ASSEMBLY
  13. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
  14. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
  17. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING ASSEMBLY
  18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  19. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2
  20. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1
  21. INSTALL FLOOR CARPET COVER CENTER RH
  22. INSTALL FLOOR CARPET COVER CENTER LH
  23. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY NO. 3
  24. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY NO. 1
  25. INSTALL INSTRUMENT SIDE PANEL RH
  26. INSTALL INSTRUMENT SIDE PANEL LH
  27. INSTALL INSTRUMENT PANEL BOX NO. 2
  28. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
  29. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
  30. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY NO. 1
  31. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER LH
  32. INSTALL COWL SIDE TRIM BOARD RH
  33. INSTALL COWL SIDE TRIM BOARD LH
  34. INSTALL FRONT DOOR SCUFF PLATE RH
  35. INSTALL FRONT DOOR SCUFF PLATE LH
  36. INSTALL COMBINATION METER ASSEMBLY
  37. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
  38. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
  39. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
  40. INSTALL SPIRAL CABLE SUB-ASSEMBLY
  41. INSTALL STEERING COLUMN COVER
  42. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  43. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  44. INSTALL HORN BUTTON ASSEMBLY  (See INSTALLATION )
  45. INSTALL STEERING WHEEL COVER LOWER NO. 2
  46. INSTALL STEERING WHEEL COVER LOWER NO. 3
  47. CONNECT BATTERY NEGATIVE TERMINAL
  48. INSPECT HORN BUTTON ASSEMBLY  (See INSTALLATION )
  49. INSPECT SRS WARNING LIGHT  (See INSTALLATION )
