Navigation Antenna: Components

Fig 1: Exploded View Of Navigation Antenna Components With Torque Specifications (1 Of 2)
G05141463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

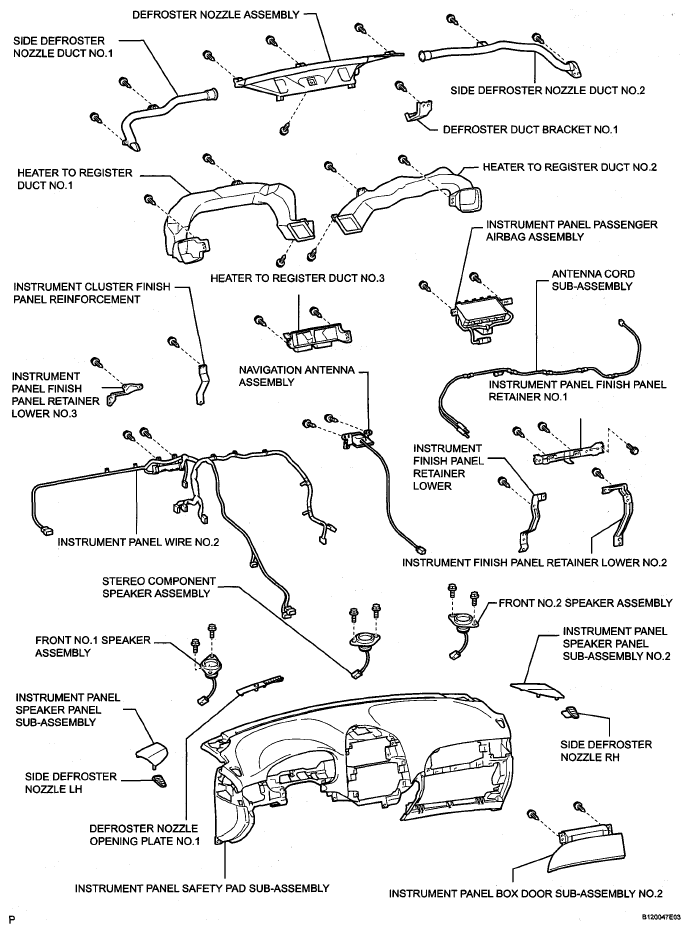

Fig 2: Exploded View Of Navigation Antenna Components (2 Of 2)
G05141464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
