Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 2 knock sensors with the 2 nuts as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the 2 knock sensor connectors.
  2. INSTALL NO. 4 AIR INJECTION SYSTEM HOSE  (See INSTALLATION )
  3. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL INTAKE MANIFOLD ASSEMBLY
    1. Install the intake manifold (See INSTALLATION ).

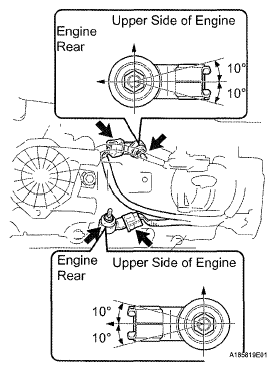

      Fig 1: Installing Knock Sensors With Nuts
      G05645270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
