Home >> Toyota >> 2008 >> Sequoia SR5, 4.7 T, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2UZ-FE) - Component And System Testing, On-Vehicle Inspection, Removal, Inspection And Installation >> Knock Sensor >> Components

Knock Sensor: Components

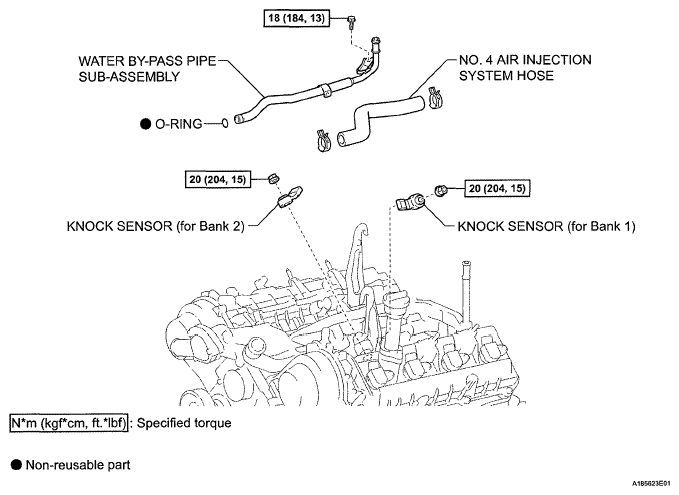

Fig 1: Lnock Sensor Replacement Components With Torque Specifications
G05645267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
