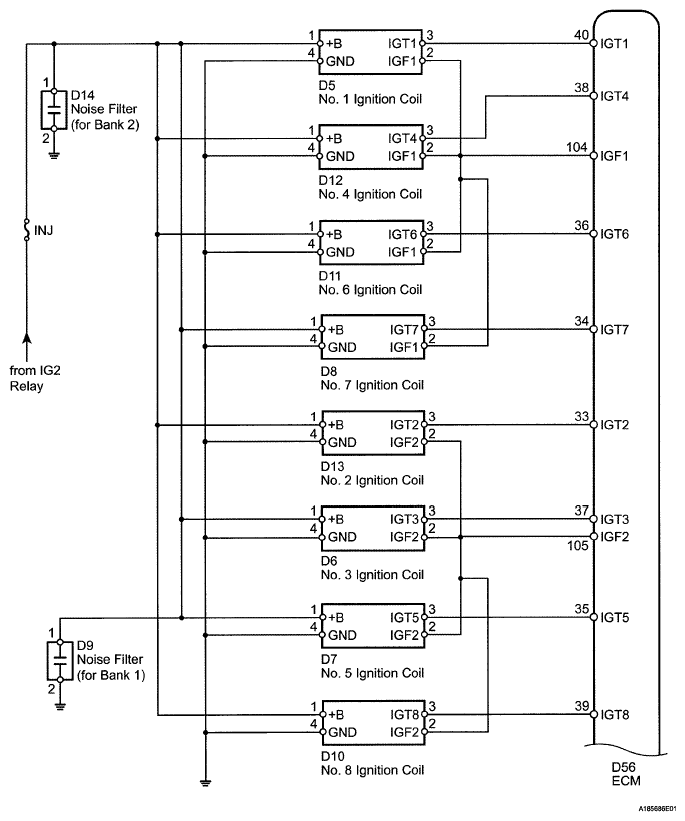

Home >> Toyota >> 2008 >> Sequoia SR5, 4.7 T, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2UZ-FE) - Component And System Testing, On-Vehicle Inspection, Removal, Inspection And Installation >> Ignition System >> System Diagram
