Cruise Control System for 3UR-FE: Notes

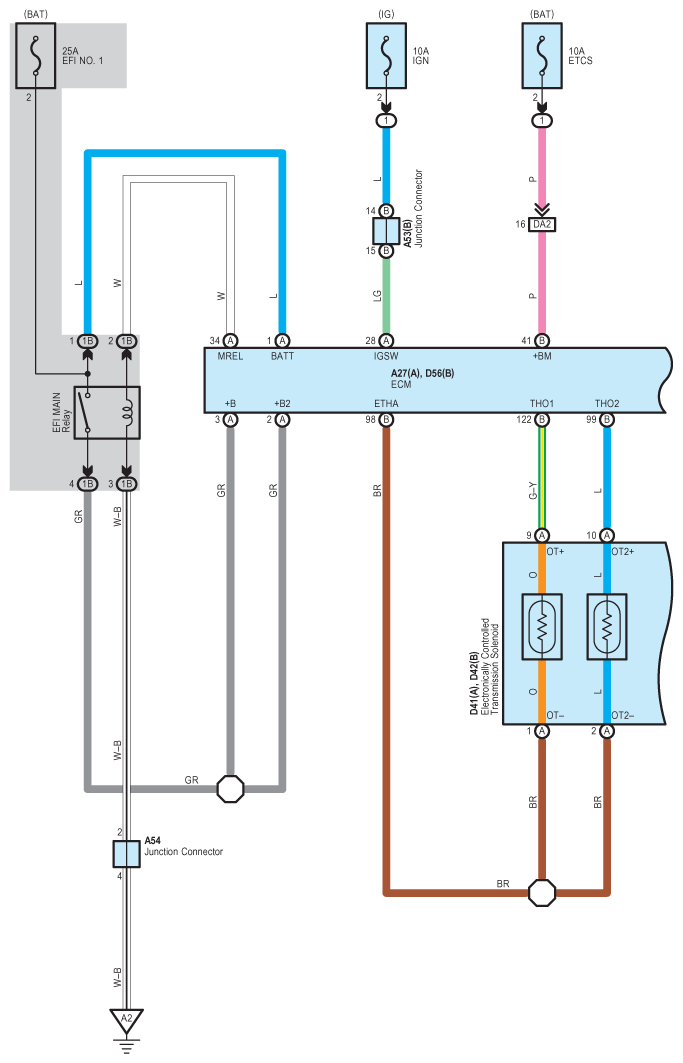

Fig 1: Cruise Control For 3UR-FE - Circuit Diagram (1 Of 6)
G07577797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

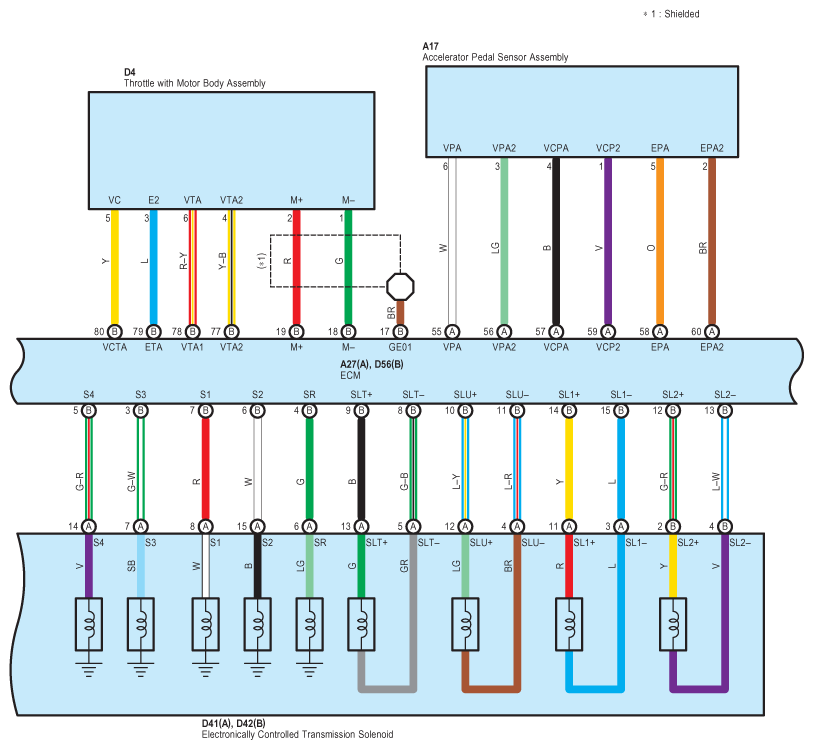

Fig 2: Cruise Control For 3UR-FE - Circuit Diagram (2 Of 6)
G07577798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

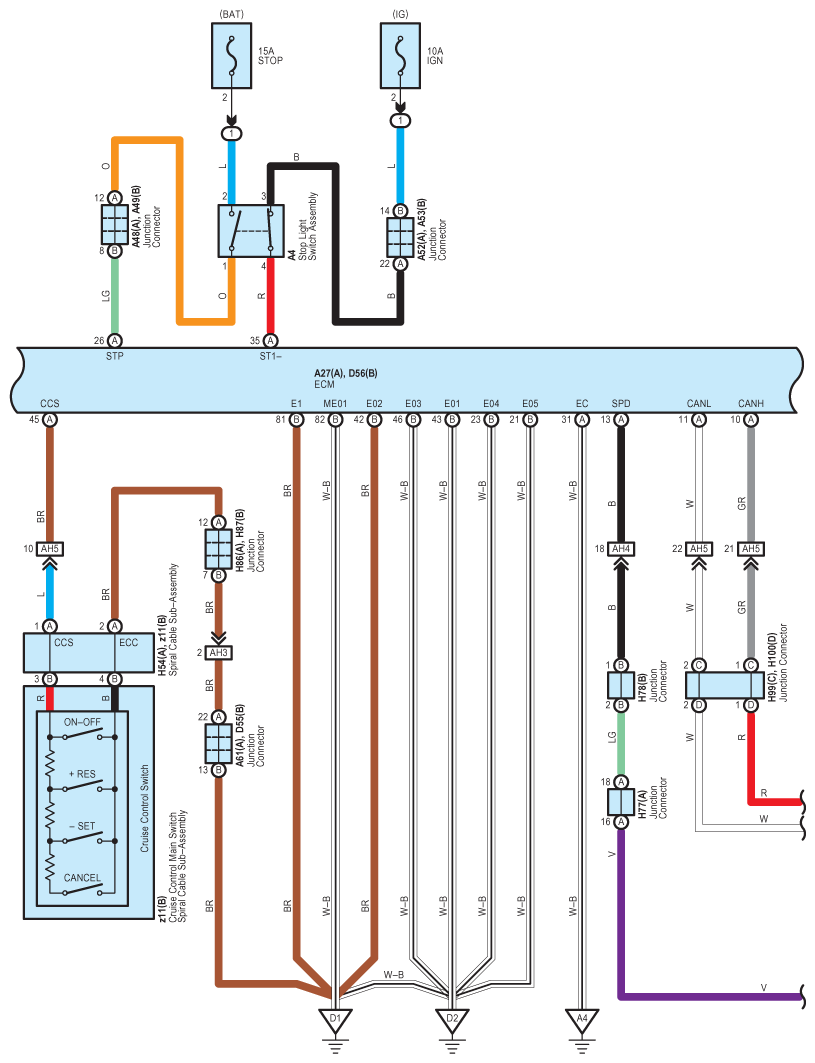

Fig 3: Cruise Control For 3UR-FE - Circuit Diagram (3 Of 6)
G07577799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

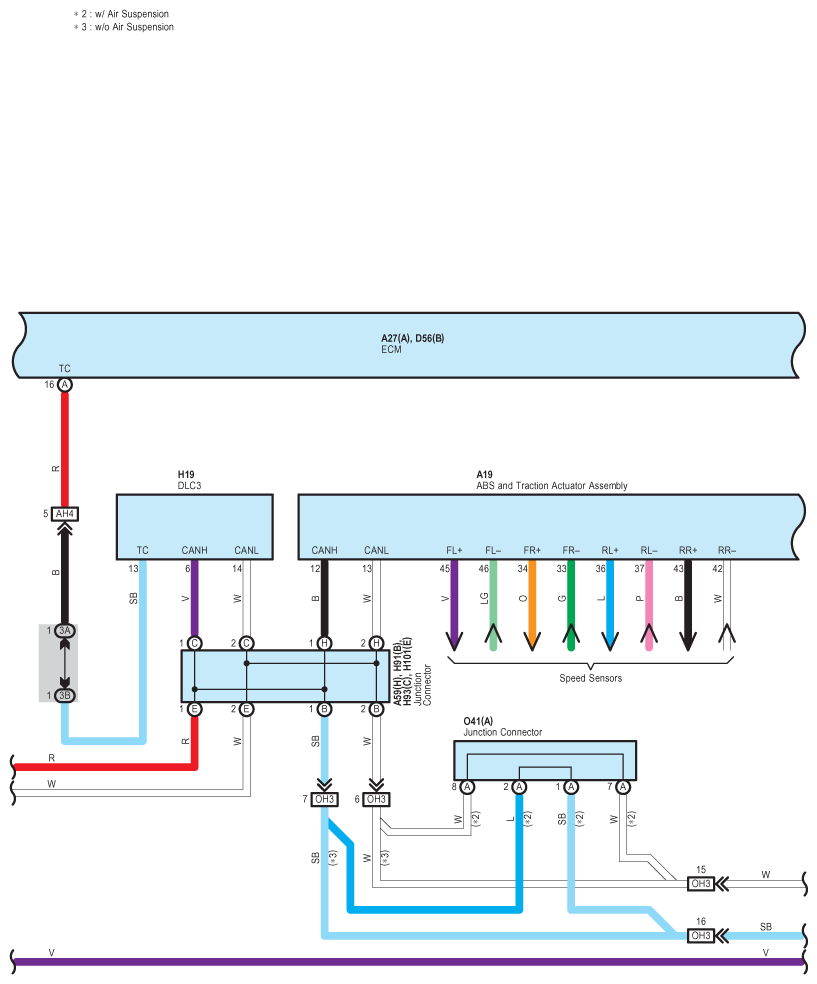

Fig 4: Cruise Control For 3UR-FE - Circuit Diagram (4 Of 6)
G07577800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

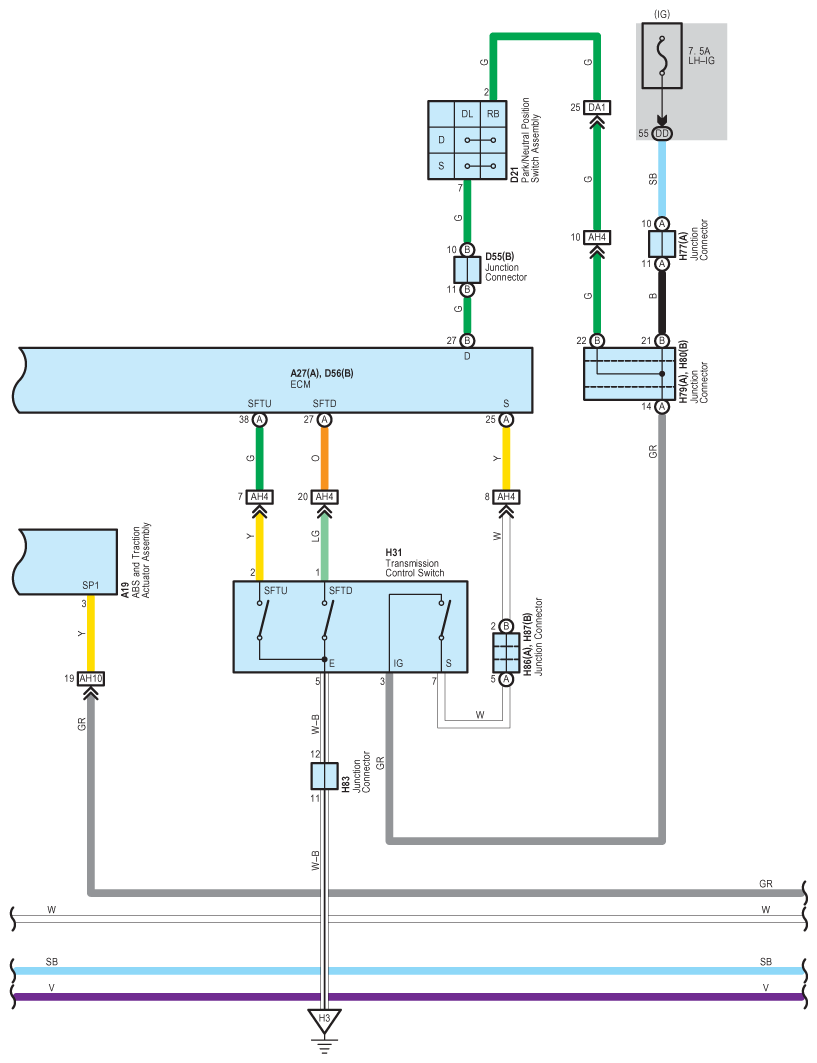

Fig 5: Cruise Control For 3UR-FE - Circuit Diagram (5 Of 6)
G07577801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

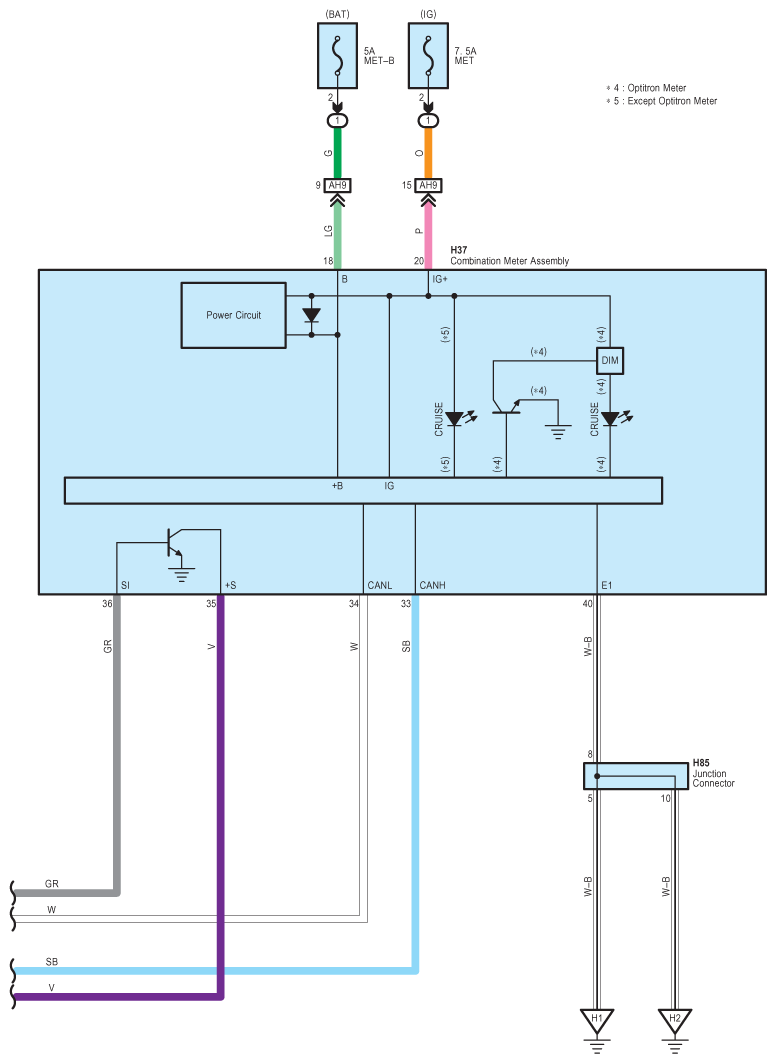

Fig 6: Cruise Control For 3UR-FE - Circuit Diagram (6 Of 6)
G07577802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
