Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

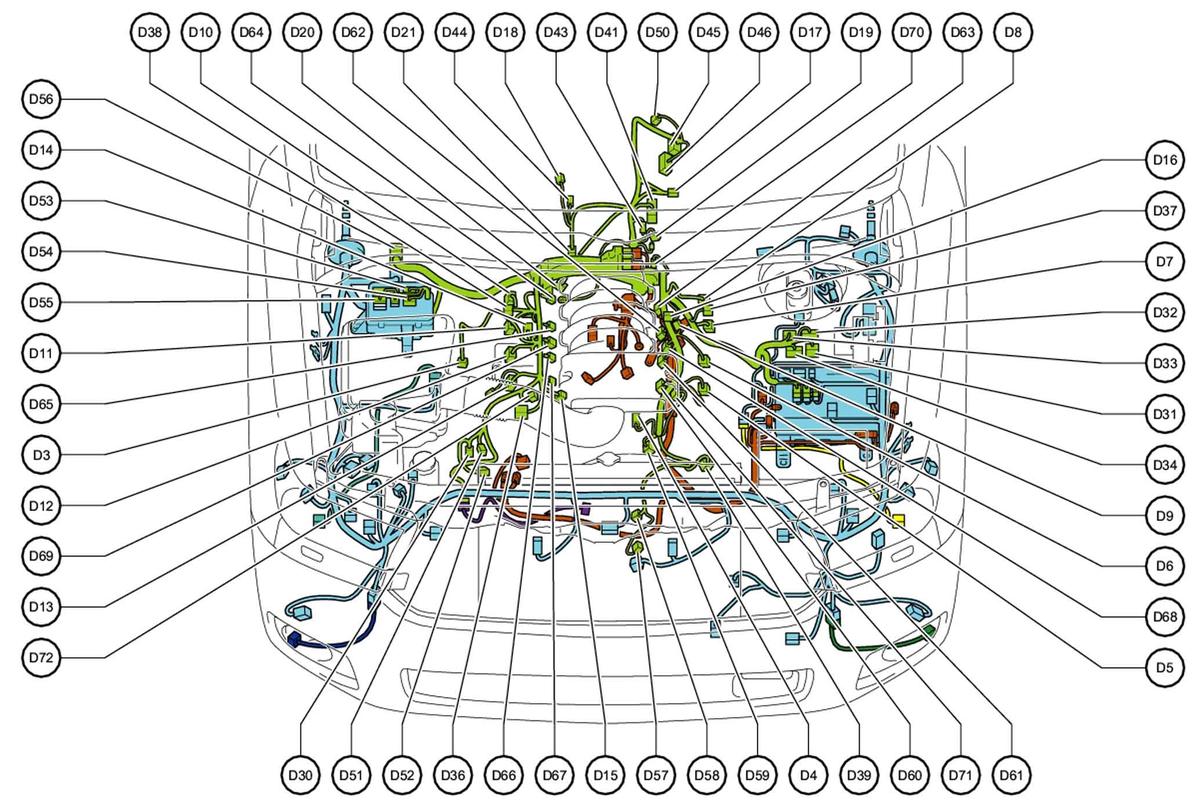

| Air Injection Control Driver (Bank 1) (D31) | Left side of engine compartment. See Figure. |
| Air Injection Control Driver (Bank 2) (D33) | Left side of engine compartment. See Figure. |

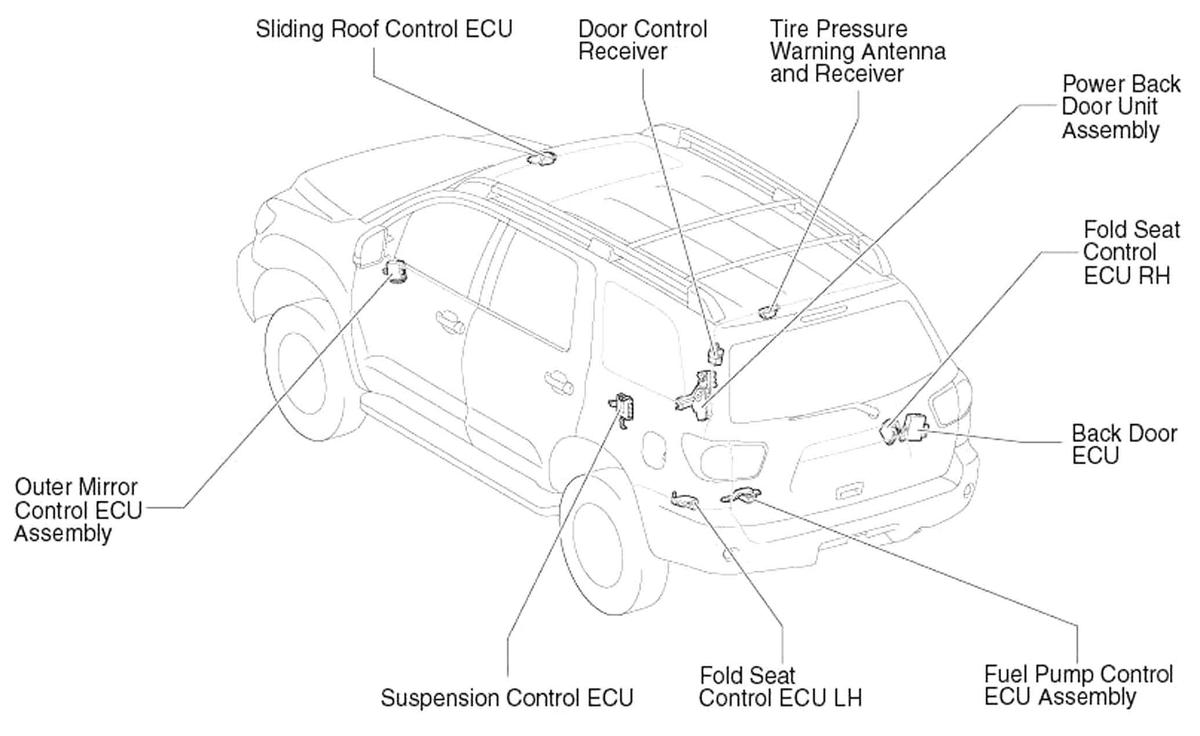

| Back Door ECU | Right side of back door. See Figure. |
| Clearance Warning ECU | Behind right side of dash. See Figure. |
| Distance Control ECU | Behind left end of dash. See Figure. |
| Door Control Receiver | In left "D" pillar. See Figure. |
| ECM (Engine Control Module) | Behind right side of dash. See Figure. |
| Fold Seat Control ECU (Left) | Behind left rear quarterpanel. See Figure. |
| Fold Seat Control ECU (Right) | Behind right rear quarterpanel. See Figure. |
| Four Wheel Drive Control ECU | Behind right side of dash. See Figure. |

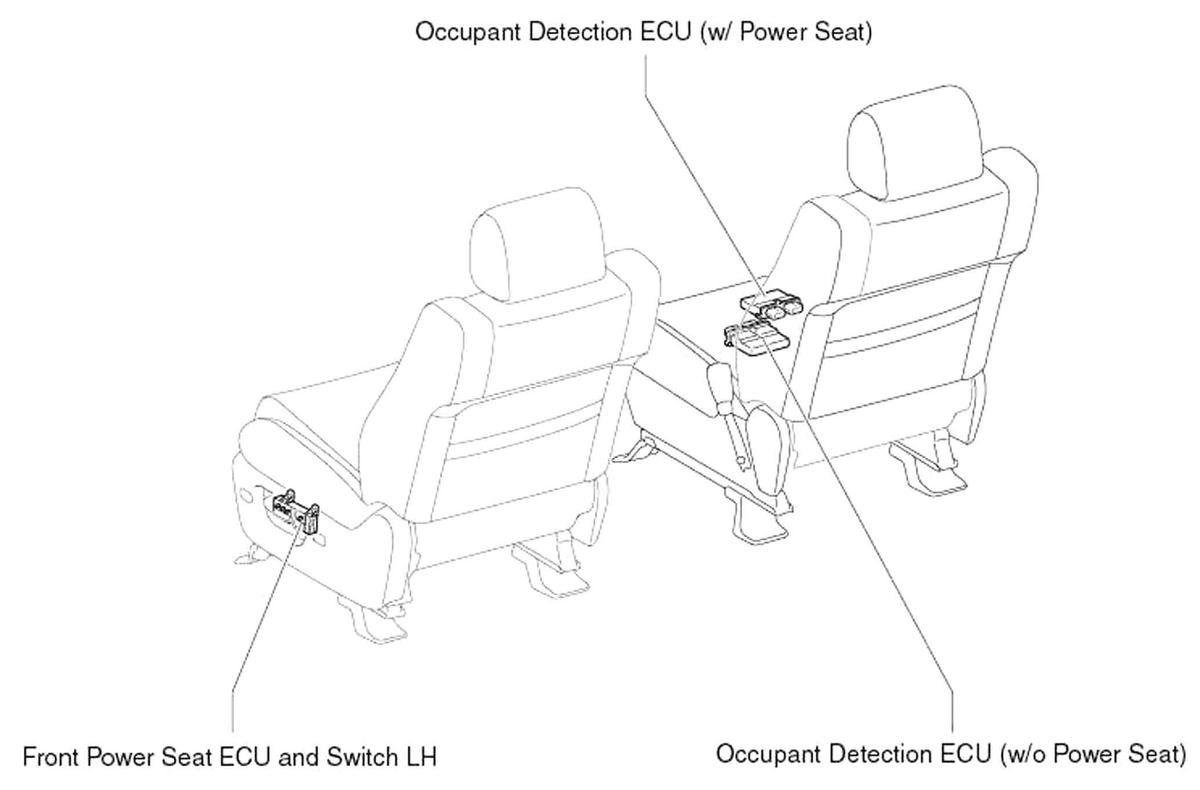

| Front Power Seat ECU | Under driver's seat. See Figure. |
| Fuel Pump Control ECU | At fuel tank. See Figure. |
| Main Body ECU | On driver side J/B. See Figure. |
| Multiplex Tilt & Telescopic ECU | On steering column. See Figure. |
| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Outer Mirror Control ECU | Left end of dash. See Figure. |
| Power Source Control ECU | Behind right side of dash. See Figure. |
| Power Steering ECU | Behind left side of dash. See Figure. |

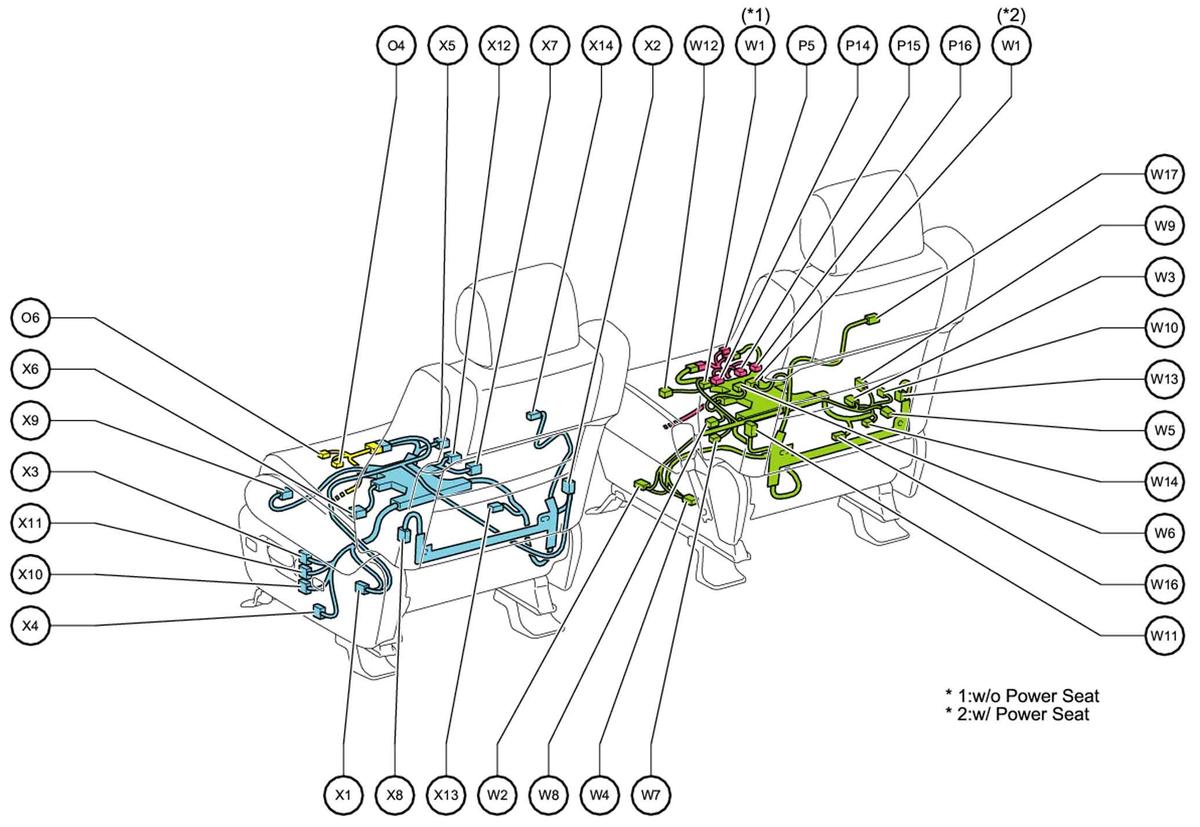

| Seat Heater Control Unit (Left Front) (X12) | Under driver's seat. See Figure. |
| Seat Heater Control Unit (Right Front) (W8) | Under front passenger's seat. See Figure. |
| Shift Lock Control ECU | Under center console. See Figure. |
| Sliding Roof Control ECU | Center front of roof. See Figure. |
| Suspension Control ECU | Behind left rear quarterpanel. See Figure. |
| Tire Pressure Warning ECU | Behind right side of dash. See Figure. |
| Transponder Key ECU | Inside of steering column. See Figure. |
