Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

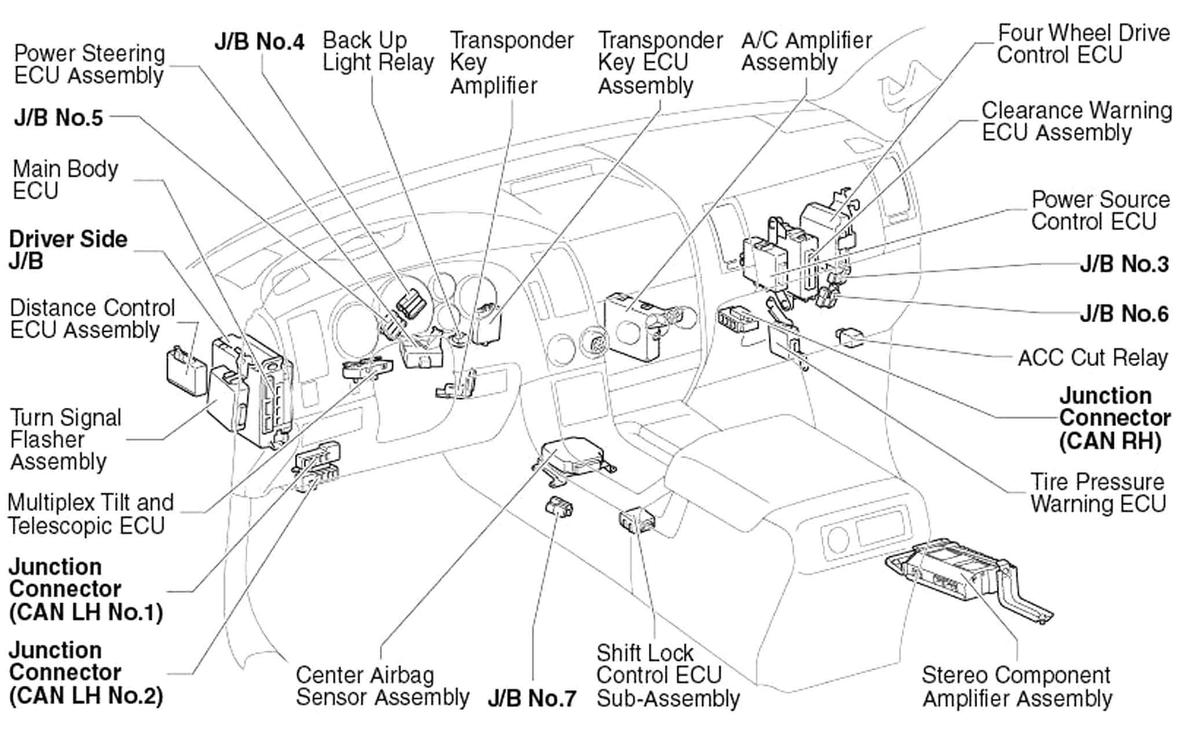

| Driver Side J/B | Behind left end of dash. See Figure. |

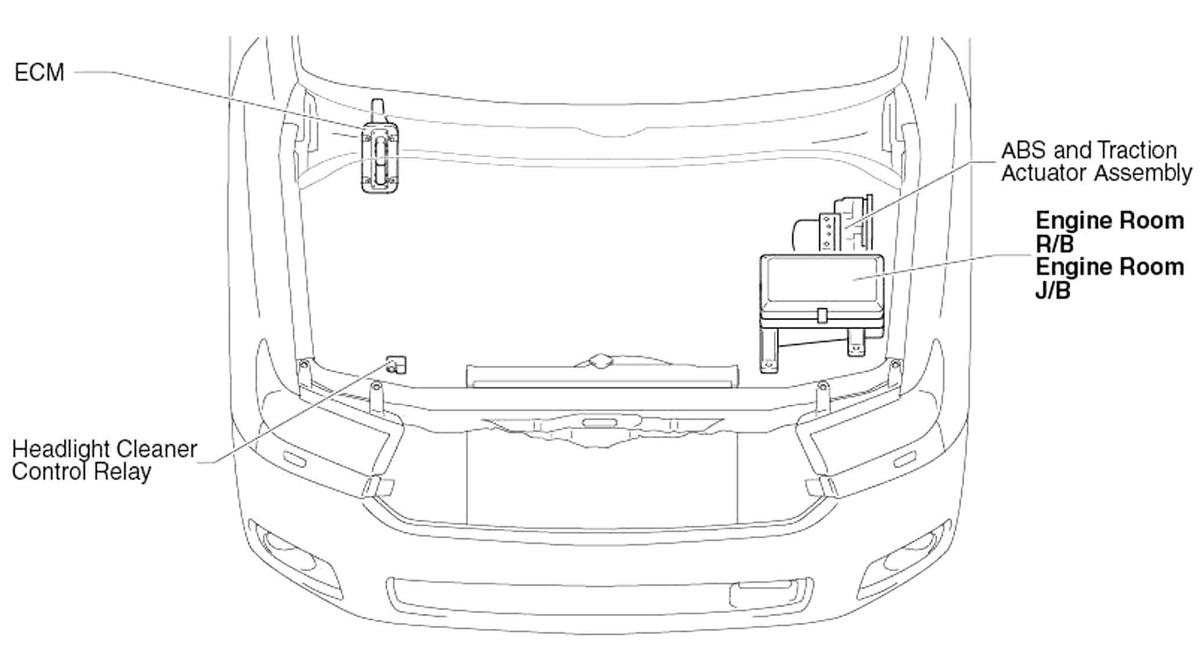

| Engine Room J/B | Left side of engine compartment. See Figure. |
| Engine Room R/B | Left side of engine compartment. See Figure. |
| J/B No. 3 | Behind right end of dash. See Figure. |
| J/B No. 4 | Behind left side of dash. See Figure. |
| J/B No. 5 | Behind left side of dash. See Figure. |
| J/B No. 6 | Behind right end of dash. See Figure. |
| J/B No. 7 | Under center console. See Figure. |
