Dynamic Radar Cruise Control System for 3UR-FE: Notes

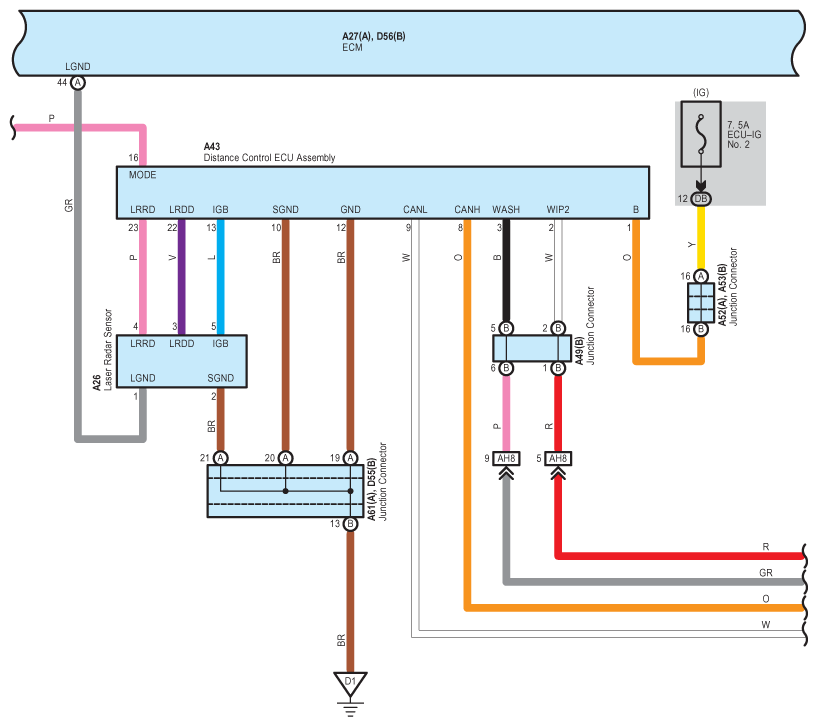

Fig 1: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

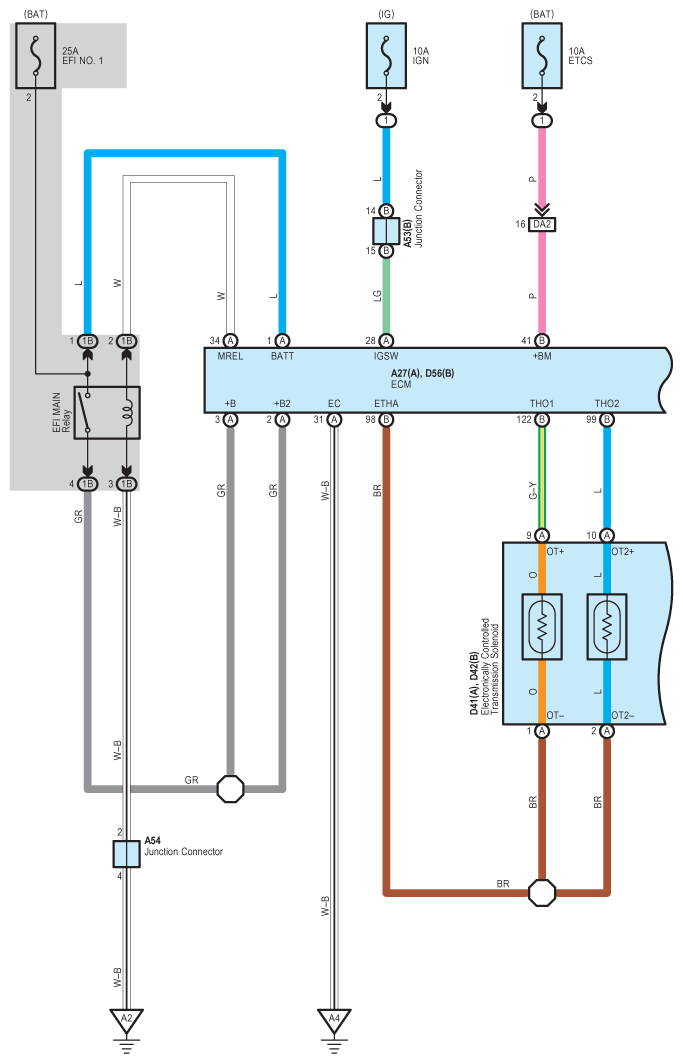

Fig 2: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (7 Of 10)

Fig 8: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (8 Of 10)

Fig 9: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (9 Of 10)

Fig 10: Dynamic Radar Cruise Control For 3UR-FE - Circuit Diagram (10 Of 10)
