Trailer Towing: Notes

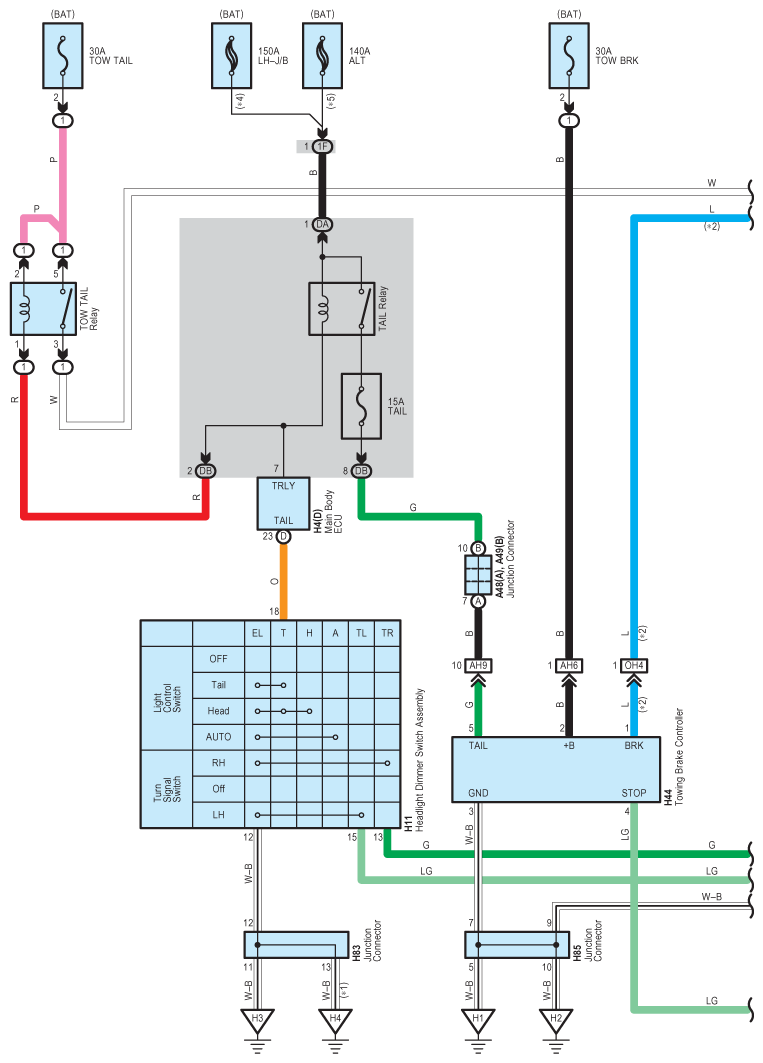

Fig 1: Trailer Towing - Circuit Diagram (1 Of 4)
G07577734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

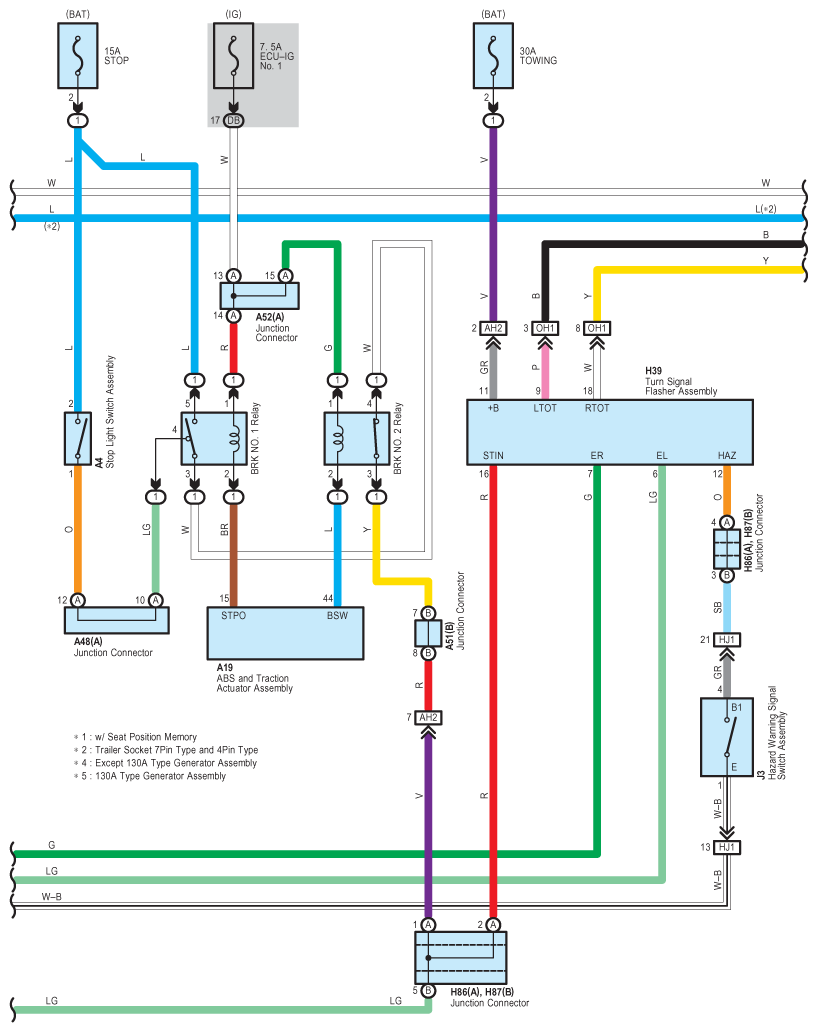

Fig 2: Trailer Towing - Circuit Diagram (2 Of 4)
G07577735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

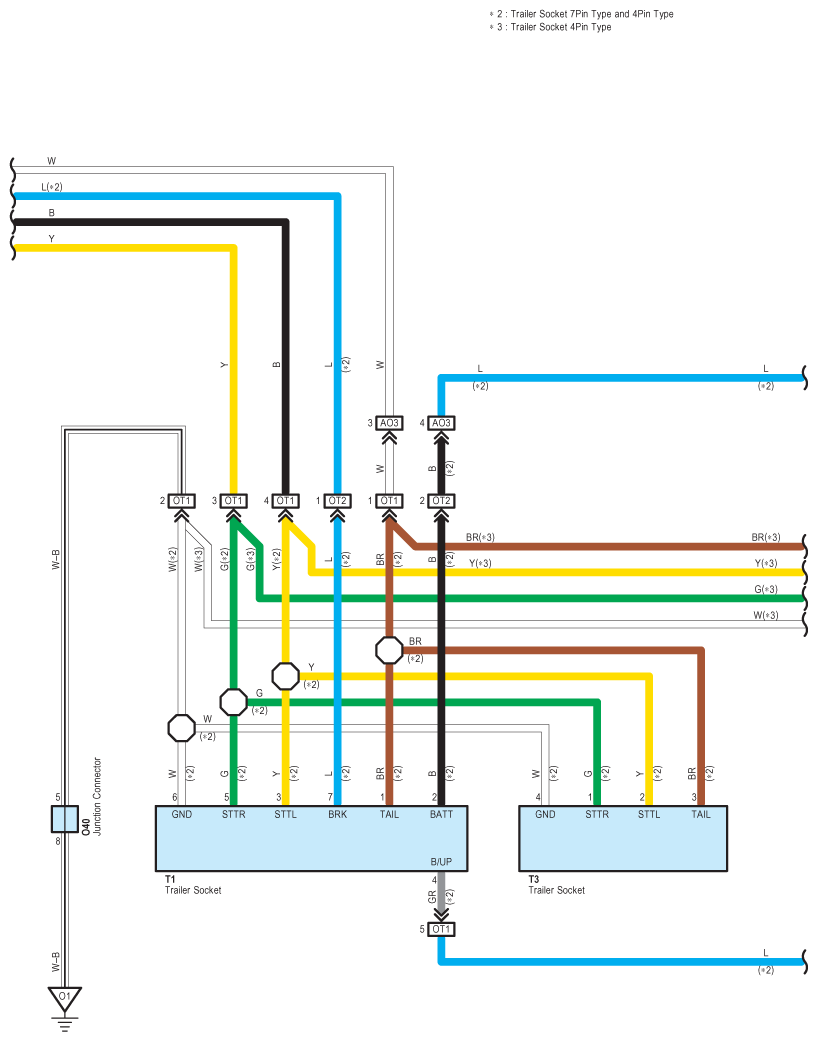

Fig 3: Trailer Towing - Circuit Diagram (3 Of 4)
G07577736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

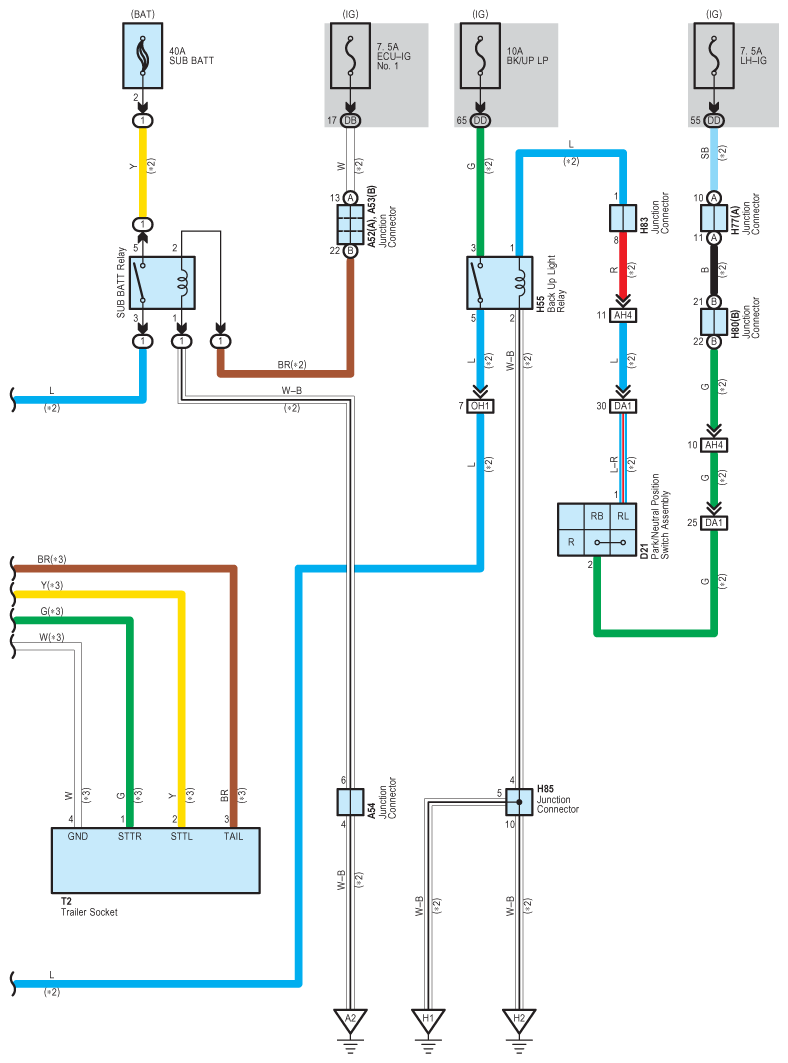

Fig 4: Trailer Towing - Circuit Diagram (4 Of 4)
G07577737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
