Stop Light System: Notes

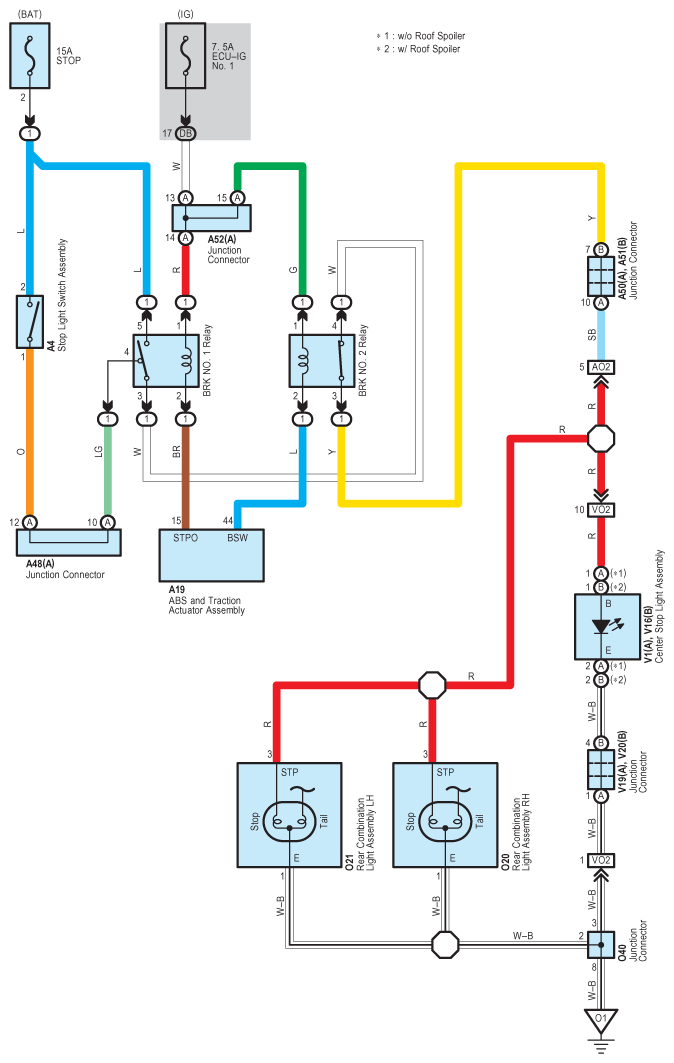

Fig 1: Stop Light - Circuit Diagram

G07577730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
