Starting System: Notes

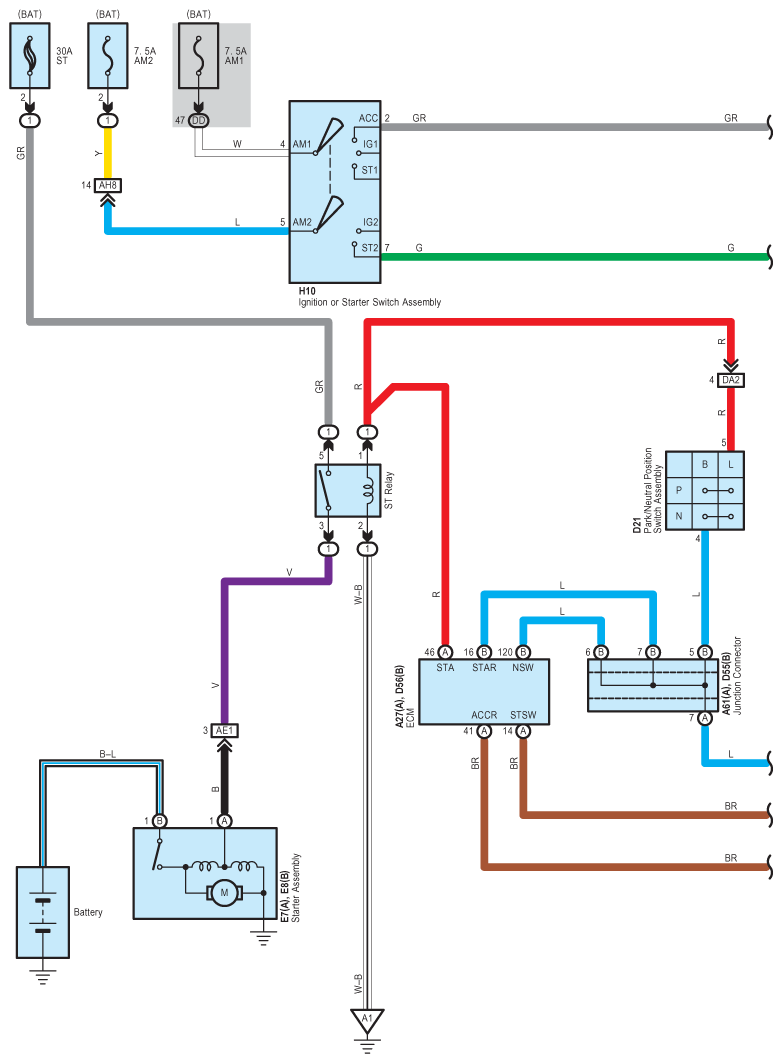

Fig 1: Starting - Circuit Diagram (1 Of 2)
G07577663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

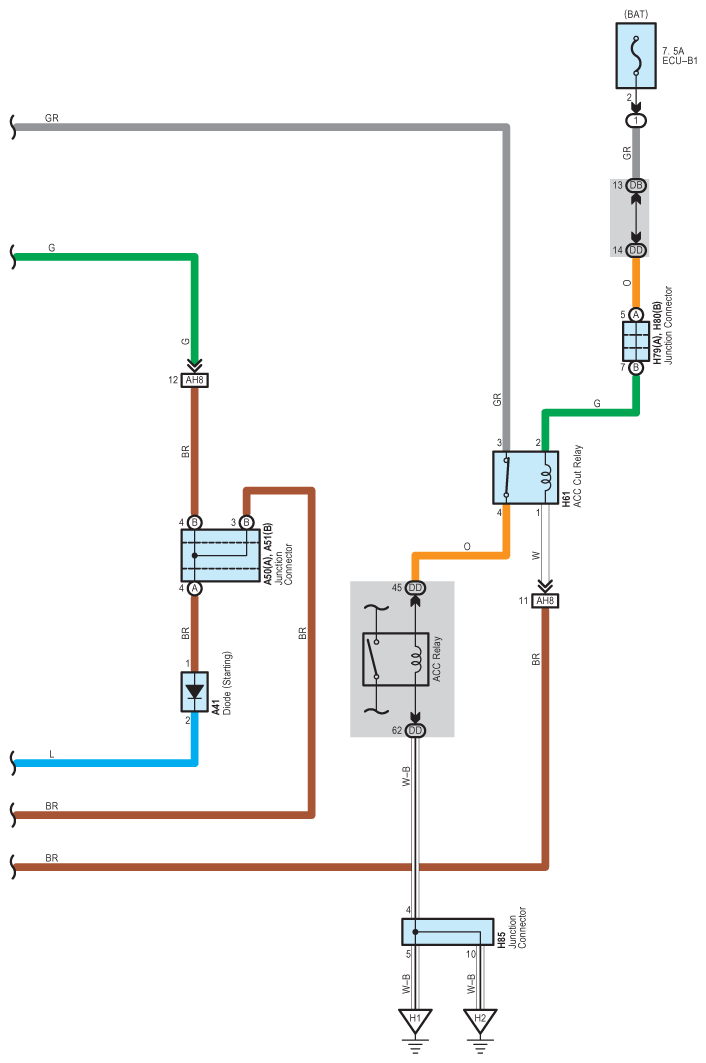

Fig 2: Starting - Circuit Diagram (2 Of 2)
G07577664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
