Remote Control System Mirror without Seat Position Memory
>>
Notes
Remote Control System Mirror without Seat Position Memory: Notes

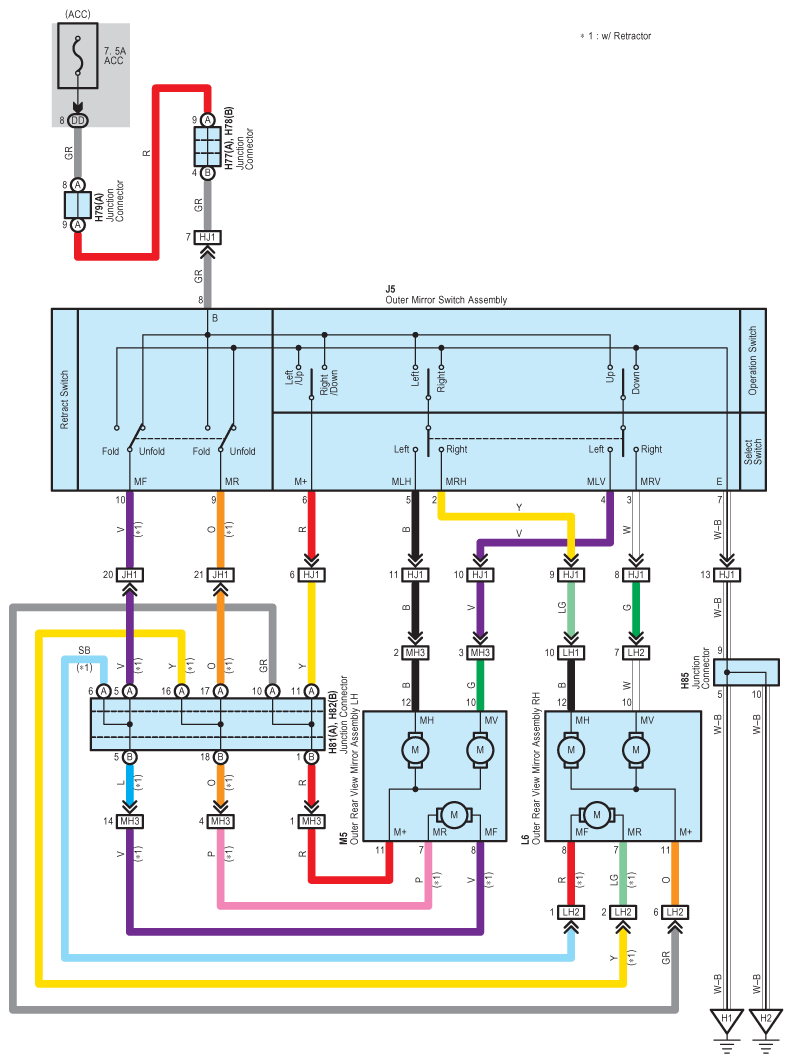

Fig 1: Remote Control Mirror Without Seat Position Memory - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
