Power Window System: Notes

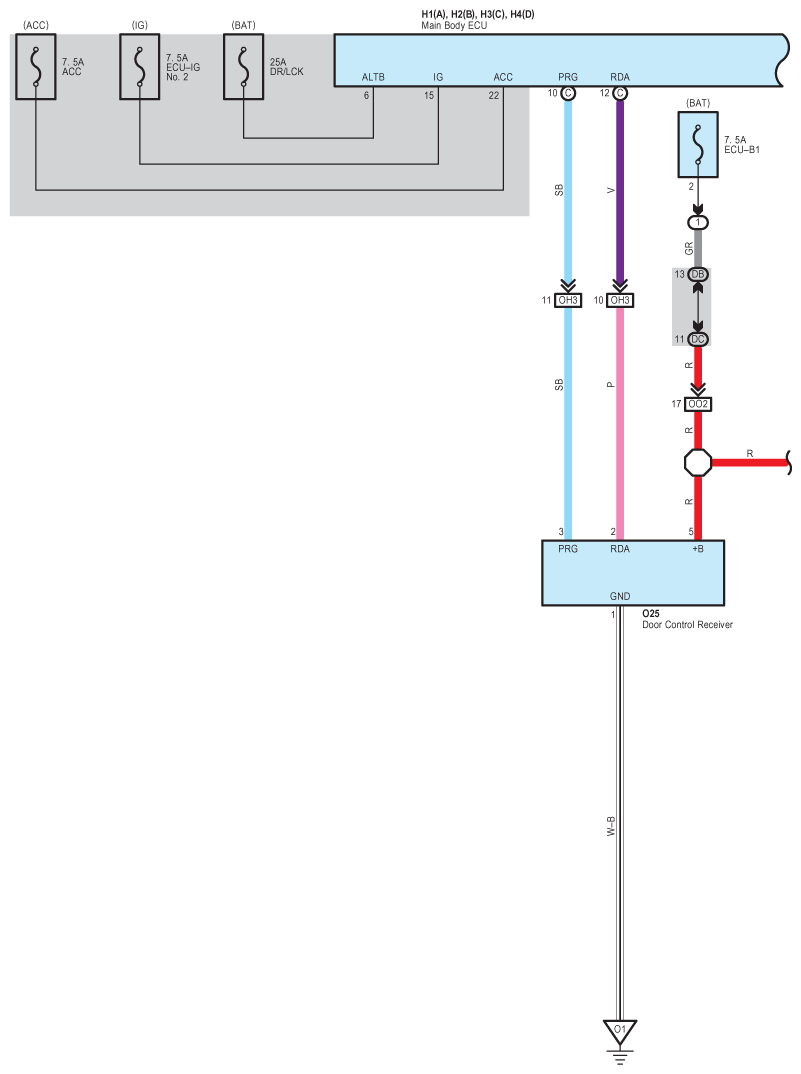

Fig 1: Power Window - Circuit Diagram (1 Of 6)

G07577852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

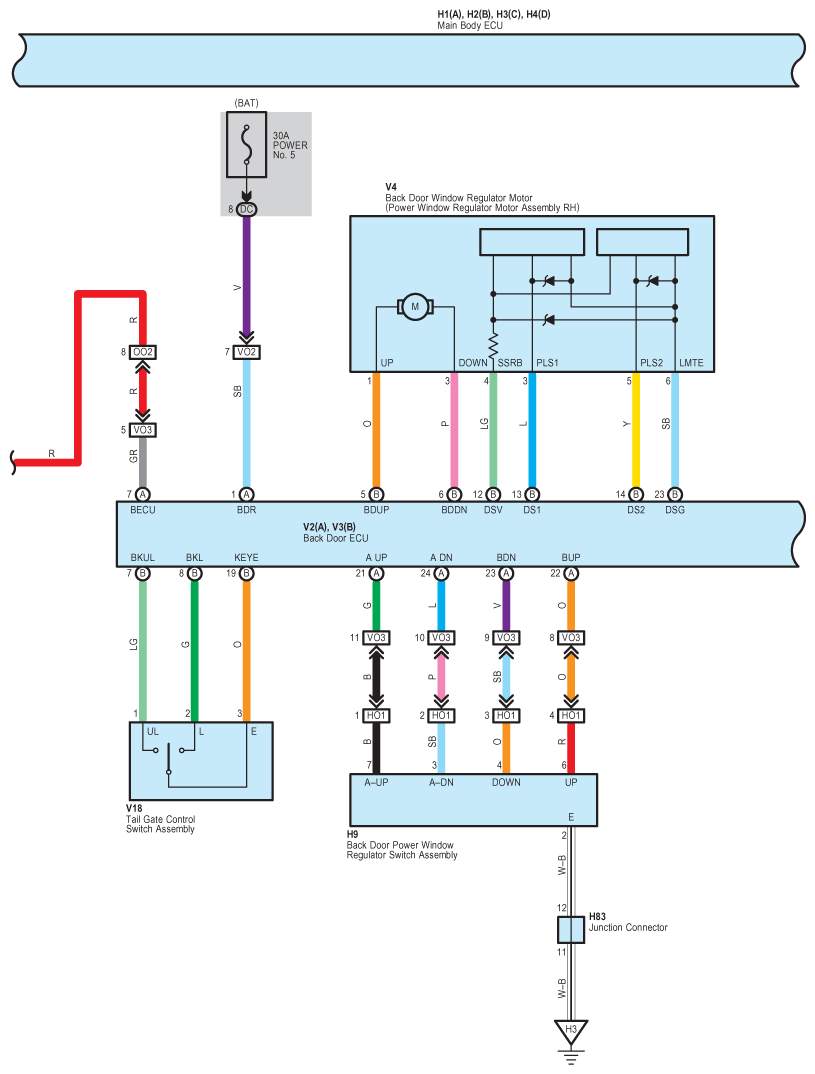

Fig 2: Power Window - Circuit Diagram (2 Of 6)

G07577853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Window - Circuit Diagram (3 Of 6)

G07577854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

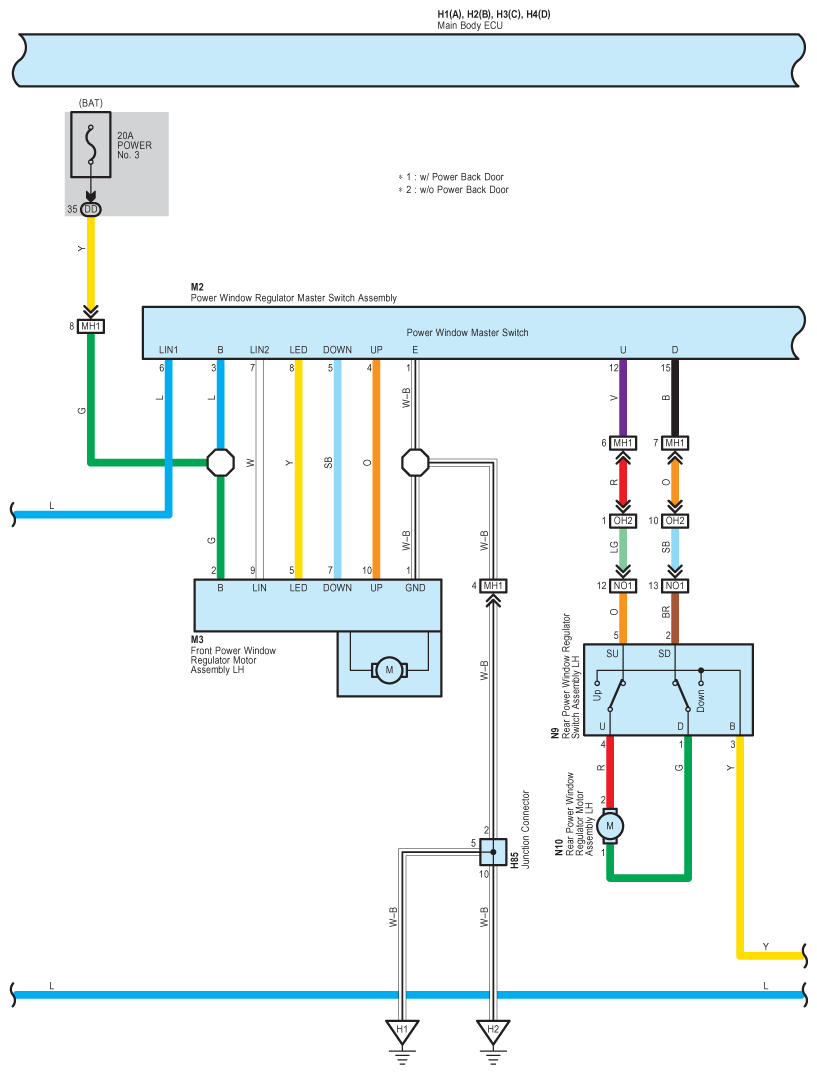

Fig 4: Power Window - Circuit Diagram (4 Of 6)

G07577855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

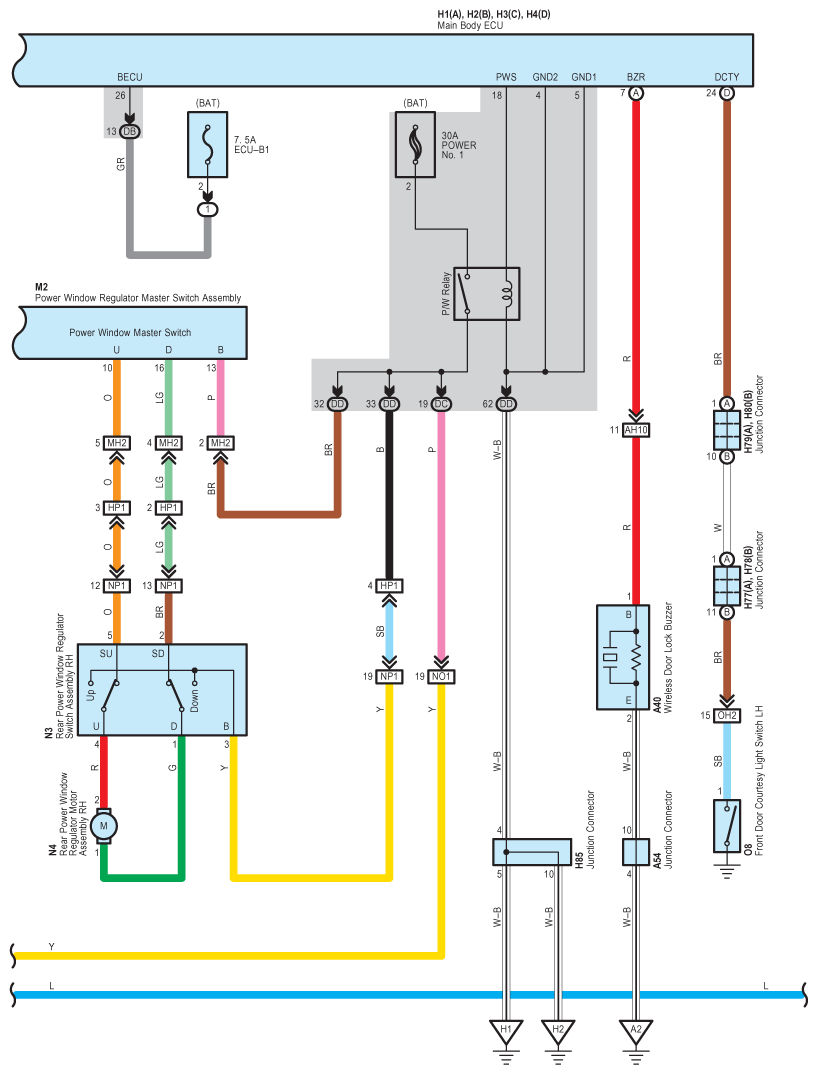

Fig 5: Power Window - Circuit Diagram (5 Of 6)

G07577856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

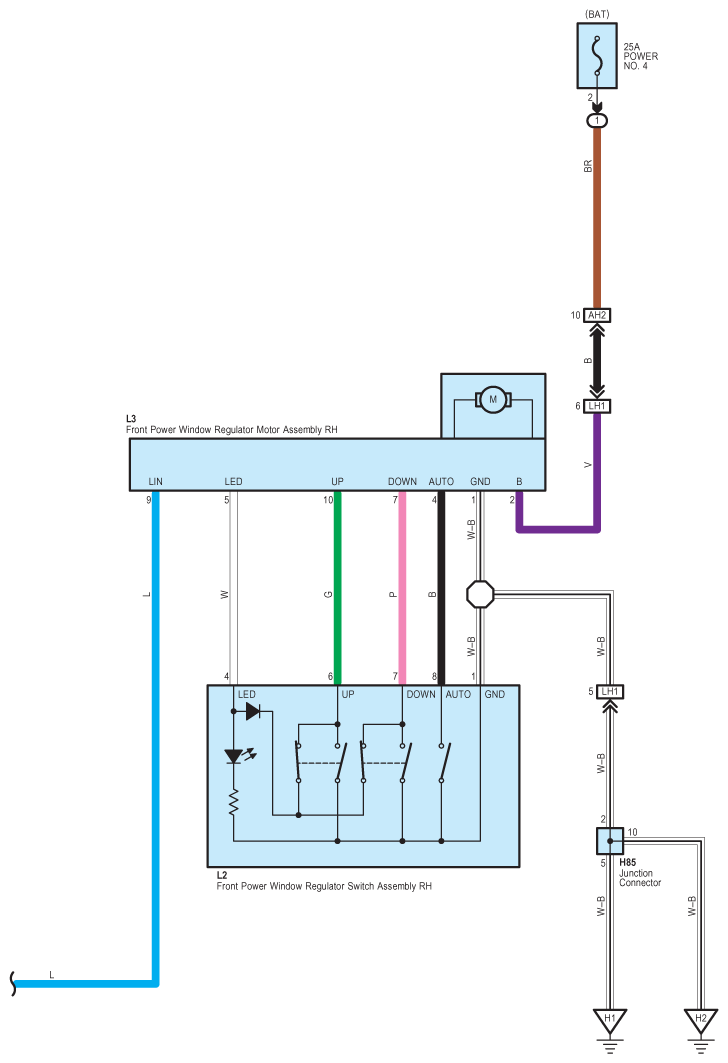

Fig 6: Power Window - Circuit Diagram (6 Of 6)

G07577857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
